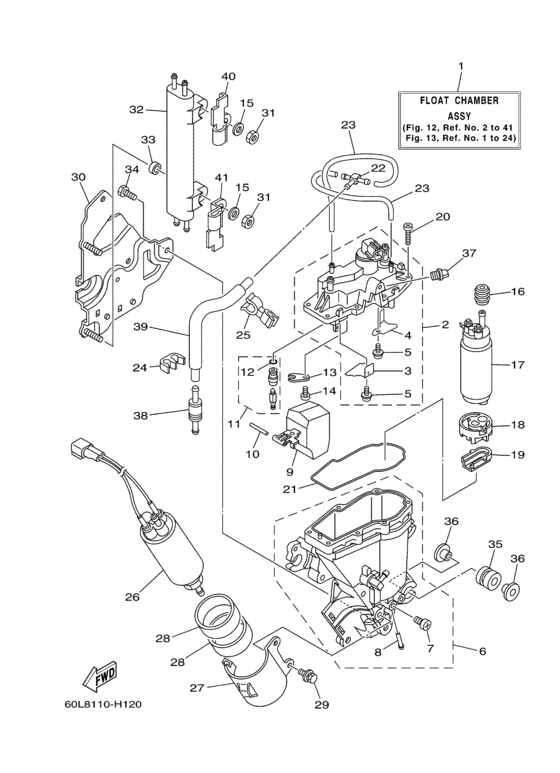

Fuel injection pump Diagram Yamaha F225 TL/U/XR
- Year
- 2008
- Model
- F225
- Year
- 2008
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 225
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
69J-14180-40-00 Float Chamber Assy |
69J-14180-40-00 |
US $3,289.94 |
||
| replacements | |||||
|
1
|
1
69J-14180-60-00 element |
69J-14180-60-00 |
US $3,289.94 |
||
|
1
|
1
99999-04289-00
Float Chamber Assy (
|
99999-04289-00 |
— | ||
|
2
|
2
69J-14182-10-00 Cover, Float Chamber |
69J-14182-10-00 |
from US $481.49 |
||
|
3
|
3
69J-2411R-00-00 Plate 1 |
69J-2411R-00-00 |
US $5.29 |
||
|
4
|
4
69J-2411T-00-00 Plate 2 |
69J-2411T-00-00 |
from US $7.65 |
||
|
5
|
5
4SV-24453-00-00 Screw |
4SV-24453-00-00 |
from US $1.56 |
||
|
6
|
6
69J-14181-00-00 Body, Float Chamber 1 |
69J-14181-00-00 |
from US $530.60 |
||
|
7
|
7
6P2-14191-00-00 Plug, Drain |
6P2-14191-00-00 |
from US $10.34 |
||
|
8
|
8
5UX-14251-00-00 Nipple |
5UX-14251-00-00 |
from US $2.55 |
||
|
9
|
9
69J-14985-00-00 Float |
69J-14985-00-00 |
from US $105.28 |
||
|
10
|
10
68V-14386-00-00 Pin, Float |
68V-14386-00-00 |
US $5.67 |
||
|
11
|
11
69J-14546-00-00 Valve, Needle |
69J-14546-00-00 |
from US $69.49 |
||
|
12
|
12
68V-13769-00-00 O-Ring |
68V-13769-00-00 |
US $4.68 |
||
|
13
|
13
68V-14255-00-00 Plate |
68V-14255-00-00 |
US $13.46 |
||
|
14
|
14
98507-04008-00 Screw, Pan Head |
98507-04008-00 |
from US $1.07 |
||
|
15
|
15
68V-14357-00-00 Washer, Plain |
68V-14357-00-00 |
from US $2.32 |
||
|
16
|
16
68V-13781-10-00 Damper, Pump |
68V-13781-10-00 |
US $27.06 |
||
| replacement | |||||
|
16
|
16
68V-13781-20-00 Grommet & Collar Set |
68V-13781-20-00 |
from US $27.06 |
||
|
17
|
17
69J-13907-03-00
Fuel Pump
|
69J-13907-03-00 |
— | ||
| replacements | |||||
|
17
|
17
69J-13907-04-00 FUEL PUMP |
69J-13907-04-00 |
US $669.24 |
||
|
17
|
17
69J-13907-06-00 FUEL PUMP COMP |
69J-13907-06-00 |
from US $592.52 |
||
|
18
|
18
68V-13915-00-00 Filter |
68V-13915-00-00 |
from US $58.93 |
||
|
19
|
19
68V-13784-00-00 Cover, Pump |
68V-13784-00-00 |
from US $9.78 |
||
|
20
|
20
68V-14567-00-00 Screw |
68V-14567-00-00 |
from US $7.79 |
||
|
21
|
21
68V-14984-00-00 Gasket, Float Chamber |
68V-14984-00-00 |
from US $13.18 |
||
|
22
|
22
69J-24379-00-00 Pipe, Joint 4 |
69J-24379-00-00 |
from US $9.78 |
||
|
23
|
23
69J-14148-00-00 Pipe |
69J-14148-00-00 |
from US $35.65 |
||
|
24
|
24
6P2-24136-00-00 Clamp 2 |
6P2-24136-00-00 |
from US $9.21 |
||
|
25
|
25
69J-24135-00-00 Clamp 1 |
69J-24135-00-00 |
from US $31.74 |
||
|
26
|
26
69J-24410-02-00
Fuel Pump Assy
|
69J-24410-02-00 |
— | ||
|
27
|
27
69J-24491-00-00 Bracket, Fuel Pump |
69J-24491-00-00 |
from US $55.68 |
||
|
28
|
28
69J-24492-00-00 Bush, Fulel Pump |
69J-24492-00-00 |
from US $30.18 |
||
|
29
|
29
69J-24592-00-00 Bolt |
69J-24592-00-00 |
from US $7.65 |
||
|
30
|
30
69J-24422-10-00 Plate |
69J-24422-10-00 |
from US $84.20 |
||
|
31
|
31
69J-14164-00-00 Nut, Holding |
69J-14164-00-00 |
from US $2.41 |
||
|
32
|
32
69J-21841-02-00 Cooler |
69J-21841-02-00 |
from US $448.76 |
||
|
33
|
33
68V-14265-00-00 Collar |
68V-14265-00-00 |
from US $13.88 |
||
|
34
|
34
69J-14446-00-00 Bolt |
69J-14446-00-00 |
from US $7.08 |
||
|
35
|
35
69J-13593-00-00 Damper |
69J-13593-00-00 |
US $28.62 |
||
| replacement | |||||
|
35
|
35
6BM-13593-00-00 Damper |
6BM-13593-00-00 |
from US $28.62 |
||
|
36
|
36
69J-13716-00-00 Collar |
69J-13716-00-00 |
from US $12.61 |
||
|
37
|
37
69J-14225-01-00 Cap |
69J-14225-01-00 |
from US $11.34 |
||
|
38
|
38
60L-24460-00-00 Relief Valve Assy |
60L-24460-00-00 |
from US $171.32 |
||
|
39
|
39
60L-24316-00-00 Pipe 6 |
60L-24316-00-00 |
from US $42.69 |
||
|
40
|
40
69J-2481H-00-00 Clamp |
69J-2481H-00-00 |
from US $15.12 |
||
|
41
|
41
69J-2481H-10-00 Clamp |
69J-2481H-10-00 |
from US $15.12 |
||
