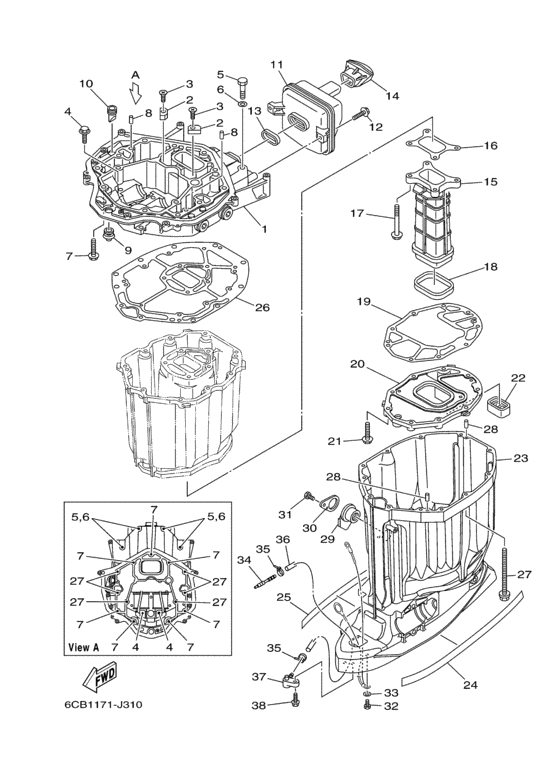

Upper casing Diagram Yamaha F225 LA
- Year
- 2009
- Model
- VF225
- Year
- 2009
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 225
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6CB-41137-00-CA Guide, Exhaust |
6CB-41137-00-CA |
US $984.72 |
||
| replacement | |||||
|
1
|
1
6CB-41137-09-00 Exhaust Guide |
6CB-41137-09-00 |
from US $627.96 |
||
|
2
|
2
63P-11325-11-00 Anode |
63P-11325-11-00 |
from US $7.51 |
||
|
3
|
3
90151-06M02-00 Screw, Countersunk |
90151-06M02-00 |
from US $1.66 |
||
|
4
|
4
90119-08102-00 Bolt, With Washer |
90119-08102-00 |
US $5.67 |
||
|
5
|
5
970-75100-45-00 Bolt(64D) |
970-75100-45-00 |
from US $8.64 |
||
|
6
|
6
92995-10600-00 Washer, Plate |
92995-10600-00 |
US $0.90 |
||
| replacement | |||||
|
6
|
6
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.07 |
||
|
7
|
7
97575-10535-00 Bolt, With Washer |
97575-10535-00 |
US $3.54 |
||
|
8
|
8
936-0816M-16-00 Pin, Dowel |
936-0816M-16-00 |
from US $4.30 |
||
|
9
|
9
6E5-42724-00-00 Grommet |
6E5-42724-00-00 |
US $6.80 |
||
|
10
|
10
61A-42717-00-00 Rubber, Seal 2 |
61A-42717-00-00 |
from US $3.32 |
||
|
11
|
11
6CB-14750-00-00 Silencer Assy |
6CB-14750-00-00 |
US $52.22 |
||
| replacement | |||||
|
11
|
11
6CB-14750-A0-00 Silencer Assy |
6CB-14750-A0-00 |
from US $52.22 |
||
|
12
|
12
958-75060-20-00 Bolt, Flange |
958-75060-20-00 |
US $1.56 |
||
| replacements | |||||
|
12
|
12
95880-06020-00 Bolt, Flange(Jk3) |
95880-06020-00 |
from US $1.56 |
||
|
12
|
12
95895-06020-00 Bolt, Flange |
95895-06020-00 |
US $1.42 |
||
|
12
|
12
95D95-06020-00 Bolt, Flange Deep Re |
95D95-06020-00 |
from US $1.07 |
||
|
13
|
13
6CB-14755-00-00 Gasket, Silencer |
6CB-14755-00-00 |
from US $3.40 |
||
|
14
|
14
6CB-42769-00-00 Seal, Rubber |
6CB-42769-00-00 |
US $15.73 |
||
| replacements | |||||
|
14
|
14
6CB-42769-01-00 Seal, Rubber |
6CB-42769-01-00 |
US $15.73 |
||
|
14
|
14
6CB-42769-02-00 SEAL RUBBER |
6CB-42769-02-00 |
from US $15.73 |
||
|
15
|
15
6CB-41132-00-9S Manifold, Exhaust |
6CB-41132-00-9S |
US $151.98 |
||
| replacement | |||||
|
15
|
15
6CB-41132-01-00 Manifold, Exhaust |
6CB-41132-01-00 |
from US $151.98 |
||
|
16
|
16
6CB-41134-00-00 Gasket, Exhaust Manifold |
6CB-41134-00-00 |
from US $9.49 |
||
|
17
|
17
97575-08560-00 Bolt, With Washer |
97575-08560-00 |
US $2.83 |
||
|
18
|
18
6CB-41138-00-00 Seal, Ext. 1 |
6CB-41138-00-00 |
from US $13.60 |
||
|
19
|
19
6CB-41135-00-00 Gasket, Exhaust Manifold |
6CB-41135-00-00 |
from US $27.06 |
||
|
20
|
20
6CB-45181-00-CA Plate |
6CB-45181-00-CA |
from US $104.17 |
||
|
21
|
21
97575-08535-00 Bolt, With Washer |
97575-08535-00 |
US $2.13 |
||
| replacements | |||||
|
21
|
21
97070-08035-00 Bolt |
97070-08035-00 |
from US $2.59 |
||
|
21
|
21
97E75-08535-00 Bolt, Hexagon W/w Deep Recess |
97E75-08535-00 |
from US $2.13 |
||
|
22
|
22
6CB-45127-00-00 Seal |
6CB-45127-00-00 |
from US $5.81 |
||
|
23
|
23
6CB-45111-00-8D Casing, Upper |
6CB-45111-00-8D |
from US $897.60 |
||
|
24
|
24
6CB-42791-00-00 Mark 1 |
6CB-42791-00-00 |
from US $23.38 |
||
|
25
|
25
6CB-42792-00-00 Mark 2 |
6CB-42792-00-00 |
from US $23.38 |
||
|
26
|
26
6CB-45113-00-00 Gasket, Upper Casing |
6CB-45113-00-00 |
US $49.74 |
||
|
27
|
27
90119-10007-00 Bolt, With Washer |
90119-10007-00 |
from US $25.36 |
||
|
28
|
28
936-0816M-16-00 Pin, Dowel |
936-0816M-16-00 |
from US $4.30 |
||
|
29
|
29
6BB-15316-00-00 Damper 1 |
6BB-15316-00-00 |
US $11.05 |
||
|
30
|
30
6BB-45152-01-00 Cover, Upper Casing 2 |
6BB-45152-01-00 |
from US $24.65 |
||
|
31
|
31
90101-06055-00 Bolt |
90101-06055-00 |
US $1.70 |
||
| replacements | |||||
|
31
|
31
97080-06014-00 Bolt |
97080-06014-00 |
from US $7.08 |
||
|
31
|
31
97095-06014-00 Bolt |
97095-06014-00 |
US $1.56 |
||
|
31
|
31
97D95-06014-00 Bolt, Hexagon Deep R |
97D95-06014-00 |
from US $1.07 |
||
|
32
|
32
970-95060-10-00
Bolt
|
970-95060-10-00 |
— | ||
| replacement | |||||
|
32
|
32
97085-06010-00 Bolt |
97085-06010-00 |
from US $1.28 |
||
|
33
|
33
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
33
|
33
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
34
|
34
6E5-83558-00-00 End, Nipple |
6E5-83558-00-00 |
from US $3.64 |
||
|
35
|
35
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
35
|
35
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.21 |
||
|
35
|
35
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.34 |
||
|
36
|
36
90445-07012-00 Hose (L1457) |
90445-07012-00 |
from US $9.49 |
||
|
37
|
37
63P-45379-00-00 Nipple, Hose |
63P-45379-00-00 |
from US $4.82 |
||
|
38
|
38
90119-06M18-00 Bolt Nla 10/95 |
90119-06M18-00 |
US $4.68 |
||
| replacement | |||||
|
38
|
38
90119-06M48-00 Bolt, With Washer |
90119-06M48-00 |
from US $4.68 |
||
