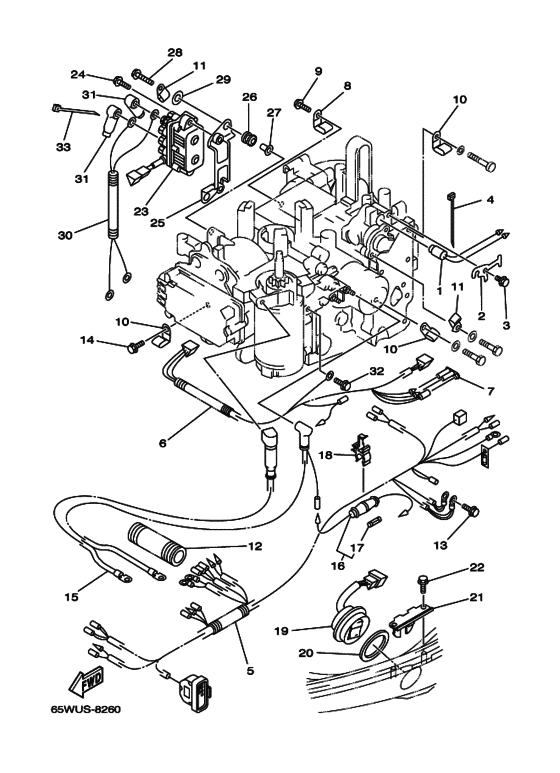

Electrical 2 Diagram Yamaha F25 M(E/H/T)S/L
- Year
- 1999
- Model
- F25A
- Model code
- 65W
- Year
- 1999
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 25
- Sales region
- Japan (100)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
65W-85790-00-00 Thermosensor Assyサーモセンサアセンブリ; |
65W-85790-00-00 |
from US $73.10 |
||
|
2
|
2
65W-85757-00-00 Retainerリテーナ; |
65W-85757-00-00 |
from US $11.62 |
||
|
3
|
3
975-95065-12-00
Bolt, With Washer
ボルト，ウイズワツシヤ; |
975-95065-12-00 |
— | ||
| replacements | |||||
|
3
|
3
970-80060-12-00 Boltボルト，ウイズワツシヤ; |
970-80060-12-00 |
from US $2.22 |
||
|
3
|
3
97E95-06512-00 Bolt, Hexagon W/w Deボルト，ウイズワツシヤ; |
97E95-06512-00 |
from US $1.07 |
||
|
3
|
3
97E95-06512-00 Bolt, Hexagon W/w Deボルト，ウイズワツシヤ; |
97E95-06512-00 |
from US $1.07 |
||
|
4
|
4
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
4
|
4
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
4
|
4
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
5
|
5
65W-82590-00-00 Wire Harness Assyワイヤハーネスアセンブリ; ＵＲ ＥＨ，ＥＨＴ |
65W-82590-00-00 |
US $207.96 |
||
|
5
|
5
65W-82590-10-00 Wire Harness Assy (7P)ワイヤハーネスアセンブリ; ＵＲ Ｅ |
65W-82590-10-00 |
US $207.96 |
||
|
5
|
5
65W-82590-30-00 Wire Harness Assy (10P)ワイヤハーネスアセンブリ; ＵＲ ＥＴ |
65W-82590-30-00 |
US $207.96 |
||
|
5
|
5
65W-82590-40-00 Wire Harness Assyワイヤハーネスアセンブリ; ＵＲ ＭＨ |
65W-82590-40-00 |
from US $338.38 |
||
|
6
|
6
65W-81971-00-00 Wire, Leadワイヤ，リード; ＥＨＴ |
65W-81971-00-00 |
from US $13.37 |
||
|
7
|
7
6E5-82582-00-00 Cover, Wire Harnessカバー，ワイヤハーネス; ＥＨＴ |
6E5-82582-00-00 |
from US $4.53 |
||
|
8
|
8
90465-08M08-00 ClampＥＴ，ＥＨＴ |
90465-08M08-00 |
from US $11.05 |
||
|
9
|
9
97595-06516-00 Bolt, With Washerボルト，ウイズワツシヤ; ＥＴ，ＥＨＴ |
97595-06516-00 |
US $2.55 |
||
| replacement | |||||
|
9
|
9
90119-06M41-00 Bolt, With Washerボルト，ウイズワツシヤ; ＥＴ，ＥＨＴ |
90119-06M41-00 |
from US $2.74 |
||
|
10
|
10
90465-08M08-00 Clamp |
90465-08M08-00 |
from US $11.05 |
||
|
11
|
11
90465-08M51-00
Clamp
ＵＲ ＥＴ，ＥＨＴ |
90465-08M51-00 |
— | ||
|
12
|
12
6N7-83557-00-00 Tube (I.dia:22Mm)チユーブ; ＵＲ Ｅ，ＥＴ |
6N7-83557-00-00 |
from US $4.11 |
||
|
13
|
13
97595-06516-00 Bolt, With Washerボルト，ウイズワツシヤ; |
97595-06516-00 |
US $2.55 |
||
| replacement | |||||
|
13
|
13
90119-06M41-00 Bolt, With Washerボルト，ウイズワツシヤ; |
90119-06M41-00 |
from US $2.74 |
||
|
14
|
14
97595-05516-00 Bolt, With Washer |
97595-05516-00 |
from US $1.42 |
||
|
15
|
15
65W-82105-J0-00 Wire Harnessワイヤハーネス; Ｅ，ＥＨ，ＥＴ，ＥＨＴ |
65W-82105-J0-00 |
US $229.35 |
||
|
16
|
16
6G8-82150-00-00 Fuse Holder Assyフユーズホルダアセンブリ; Ｅ，ＥＨ，ＥＴ，ＥＨＴ |
6G8-82150-00-00 |
US $20.83 |
||
|
17
|
17
663-82151-00-00 Fuse (12V-20A)．フユーズ; １２Ｖ−２０Ａ; Ｅ，ＥＨ，ＥＴ，ＥＨＴ |
663-82151-00-00 |
US $1.81 |
||
| replacements | |||||
|
17
|
17
682-82151-01-00 Fuse (20A)．フユーズ; １２Ｖ−２０Ａ; Ｅ，ＥＨ，ＥＴ，ＥＨＴ |
682-82151-01-00 |
US $1.81 |
||
|
17
|
17
682-82151-02-00 FUSE．フユーズ; １２Ｖ−２０Ａ; Ｅ，ＥＨ，ＥＴ，ＥＨＴ |
682-82151-02-00 |
from US $1.81 |
||
|
18
|
18
6G5-82152-00-00 Holder, Fuseホルダ，フユーズ; Ｅ，ＥＨ，ＥＴ，ＥＨＴ |
6G5-82152-00-00 |
from US $2.36 |
||
|
19
|
19
6H1-82563-10-00 Trim & Tilt Switch Assyトリム・チルトスイツチアセンブリ; ＥＴ，ＥＨＴ |
6H1-82563-10-00 |
US $95.47 |
||
| replacements | |||||
|
19
|
19
6H1-82563-11-00 Trim & Tilt Switch Assyトリム・チルトスイツチアセンブリ; ＥＴ，ＥＨＴ |
6H1-82563-11-00 |
from US $95.47 |
||
|
19
|
19
6R3-82563-01-00 Trim & Tilt Switch Assyトリム・チルトスイツチアセンブリ; ＥＴ，ＥＨＴ |
6R3-82563-01-00 |
from US $78.10 |
||
|
20
|
20
6E5-82587-00-00 GasketＥＴ，ＥＨＴ |
6E5-82587-00-00 |
US $5.58 |
||
|
21
|
21
62Y-83614-00-00 BracketＥＴ，ＥＨＴ |
62Y-83614-00-00 |
from US $7.07 |
||
|
22
|
22
90109-06M86-00 BoltＥＴ，ＥＨＴ |
90109-06M86-00 |
from US $2.52 |
||
|
23
|
23
61A-81950-00-00 Relay Assyリレーアセンブリ; ＥＴ，ＥＨＴ |
61A-81950-00-00 |
US $243.16 |
||
| replacement | |||||
|
23
|
23
61A-81950-01-00 Relay Assyリレーアセンブリ; ＥＴ，ＥＨＴ |
61A-81950-01-00 |
from US $243.16 |
||
|
24
|
24
97575-06520-00 Bolt, With WasherＥＴ，ＥＨＴ |
97575-06520-00 |
US $1.07 |
||
| replacement | |||||
|
24
|
24
970-80060-20-00 BoltＥＴ，ＥＨＴ |
970-80060-20-00 |
from US $1.66 |
||
|
25
|
25
65W-81948-00-00
Bracket
ＥＴ，ＥＨＴ |
65W-81948-00-00 |
— | ||
|
26
|
26
6A0-82317-00-00 Damper, Ignition Coilダンパ，イグニツシヨンコイル; ＥＴ，ＥＨＴ |
6A0-82317-00-00 |
from US $4.53 |
||
| replacement | |||||
|
26
|
26
6A0-82317-01-00 DAMPER IGNITION COILダンパ，イグニツシヨンコイル; ＥＴ，ＥＨＴ |
6A0-82317-01-00 |
from US $2.36 |
||
|
27
|
27
624-42542-00-00 Collarパイプ; ＥＴ，ＥＨＴ |
624-42542-00-00 |
US $6.23 |
||
| replacement | |||||
|
27
|
27
90387-06119-00 Collarパイプ; ＥＴ，ＥＨＴ |
90387-06119-00 |
from US $3.26 |
||
|
28
|
28
95895-06030-00 Bolt, FlangeＥＴ，ＥＨＴ |
95895-06030-00 |
US $2.13 |
||
|
29
|
29
90201-12M16-00 Washer, Plateワツシヤ，プレート; ＥＴ，ＥＨＴ |
90201-12M16-00 |
from US $2.70 |
||
|
30
|
30
65W-81949-00-00 Wire, Leadワイヤ，リード; ＥＴ，ＥＨＴ |
65W-81949-00-00 |
from US $33.81 |
||
|
31
|
31
682-82119-01-00 Cover, Lead Wireカバー，リードワイヤ; ＥＴ，ＥＨＴ |
682-82119-01-00 |
US $5.53 |
||
| replacement | |||||
|
31
|
31
6G5-82119-10-00 Cover, Lead Wireカバー，リードワイヤ; ＥＴ，ＥＨＴ |
6G5-82119-10-00 |
from US $5.53 |
||
|
32
|
32
97575-06516-00 Bolt, With WasherＥＴ，ＥＨＴ |
97575-06516-00 |
US $1.07 |
||
| replacement | |||||
|
32
|
32
97E75-06516-00 Bolt, Hexagon W/w Deep RecessＥＴ，ＥＨＴ |
97E75-06516-00 |
from US $1.07 |
||
|
33
|
33
904-6511M-10-00
Clamp
ＥＴ，ＥＨＴ |
904-6511M-10-00 |
— | ||
| replacements | |||||
|
33
|
33
80L-26397-00-00 BandＥＴ，ＥＨＴ |
80L-26397-00-00 |
from US $1.40 |
||
|
33
|
33
904-65100-98-00 ClampＥＴ，ＥＨＴ |
904-65100-98-00 |
from US $1.39 |
||
