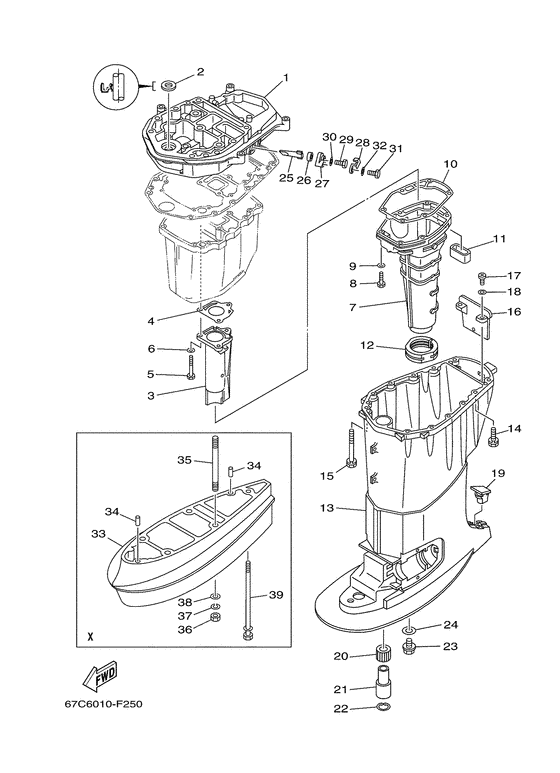

Upper casing Diagram Yamaha F30 M(E/W/H/D/T)S/L/X
- Year
- 2007
- Model
- F30A
- Model code
- 69H
- Year
- 2007
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 30
- Sales region
- Europe (General) (110)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
67C-41137-11-94 Guide, Exhaust |
67C-41137-11-94 |
US $496.50 |
||
| replacements | |||||
|
01
|
01
67C-41137-13-CA Guide, Exhaust |
67C-41137-13-CA |
US $496.50 |
||
|
01
|
01
99999-04325-00 Guide, Exhaust (67C-13) |
99999-04325-00 |
US $783.88 |
||
|
02
|
02
93110-16004-00 Oil Seal |
93110-16004-00 |
from US $7.23 |
||
|
03
|
03
67C-41131-00-5B Manifold, Ext. 1 |
67C-41131-00-5B |
US $186.52 |
||
| replacement | |||||
|
03
|
03
67C-41131-00-CA Manifold, Ext. 1 |
67C-41131-00-CA |
from US $204.51 |
||
|
04
|
04
67C-41133-00-00 Gasket, Exhaust Manifold 1 |
67C-41133-00-00 |
from US $7.23 |
||
|
05
|
05
97075-06050-00 Bolt |
97075-06050-00 |
US $3.26 |
||
| replacement | |||||
|
05
|
05
970-80060-50-00 Bolt |
970-80060-50-00 |
from US $2.98 |
||
|
06
|
06
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
06
|
06
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
07
|
07
67C-14711-12-5B Muffler 1L(21.0"),x(25.5") |
67C-14711-12-5B |
from US $133.09 |
||
|
08
|
08
97075-06025-00 Bolt |
97075-06025-00 |
US $1.35 |
||
| replacement | |||||
|
08
|
08
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.35 |
||
|
09
|
09
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
09
|
09
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
10
|
10
62Y-41134-01-00 Gasket, Exhaust Manifold |
62Y-41134-01-00 |
US $12.18 |
||
| replacement | |||||
|
10
|
10
6BG-41134-00-00 Gasket, Exhaust Manifold |
6BG-41134-00-00 |
from US $12.18 |
||
|
11
|
11
62Y-45127-00-00 Seal |
62Y-45127-00-00 |
US $4.82 |
||
|
12
|
12
67C-45123-00-00 Gasket, Muffler |
67C-45123-00-00 |
from US $17.43 |
||
|
13
|
13
67C-45111-21-4D Casing, UpperL(21.0"),x(25.5") |
67C-45111-21-4D |
US $796.70 |
||
| replacement | |||||
|
13
|
13
67C-45111-21-8D Casing, UpperL(21.0"),x(25.5") |
67C-45111-21-8D |
from US $545.88 |
||
|
14
|
14
90119-08M79-00 Bolt, With Washer |
90119-08M79-00 |
US $3.97 |
||
| replacement | |||||
|
14
|
14
97080-08030-00 Bolt |
97080-08030-00 |
from US $2.69 |
||
|
15
|
15
90119-08M82-00 Bolt, With Washer |
90119-08M82-00 |
from US $7.23 |
||
|
16
|
16
67C-45151-00-00 Cover, Upper Casing |
67C-45151-00-00 |
from US $7.51 |
||
|
17
|
17
97880-05016-00 Screw, Pan Head |
97880-05016-00 |
US $1.42 |
||
| replacement | |||||
|
17
|
17
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
18
|
18
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
19
|
19
6C5-45155-00-00 CapL(21.0"),x(25.5") |
6C5-45155-00-00 |
from US $2.41 |
||
| replacements | |||||
|
19
|
19
6C5-45155-01-00 CAPL(21.0"),x(25.5") |
6C5-45155-01-00 |
US $2.41 |
||
|
19
|
19
6C5-45155-02-00 CapL(21.0"),x(25.5") |
6C5-45155-02-00 |
from US $2.64 |
||
|
20
|
20
679-45318-00-00 Bushing, Drive ShaftL(21.0"),x(25.5") |
679-45318-00-00 |
from US $18.52 |
||
| replacement | |||||
|
20
|
20
6A0-45318-00-00 Bushing, Drive ShaftL(21.0"),x(25.5") |
6A0-45318-00-00 |
from US $35.06 |
||
|
21
|
21
90387-23002-00 CollarL(21.0"),x(25.5") |
90387-23002-00 |
from US $8.08 |
||
|
22
|
22
93420-36M01-00 CirclipL(21.0"),x(25.5") |
93420-36M01-00 |
from US $5.64 |
||
|
23
|
23
90340-14M06-00 Plug, Straight ScrewL(21.0"),x(25.5") |
90340-14M06-00 |
from US $6.09 |
||
|
24
|
24
904-3014M-09-00 GasketL(21.0"),x(25.5") |
904-3014M-09-00 |
from US $1.42 |
||
| replacement | |||||
|
24
|
24
90430-14228-00 Gasket(N261)L(21.0"),x(25.5") |
90430-14228-00 |
from US $4.68 |
||
|
25
|
25
62Y-11325-00-00 Anode |
62Y-11325-00-00 |
from US $8.78 |
||
|
26
|
26
66M-11328-00-00 Grommet, Anode |
66M-11328-00-00 |
US $1.84 |
||
|
27
|
27
66M-11327-00-94 Cover, Anode |
66M-11327-00-94 |
from US $5.24 |
||
|
28
|
28
66M-12535-00-00 Plate |
66M-12535-00-00 |
from US $3.54 |
||
|
29
|
29
97095-05012-00 Bolt |
97095-05012-00 |
from US $1.55 |
||
|
30
|
30
929-95056-00-00
Washer, Plate
|
929-95056-00-00 |
— | ||
| replacement | |||||
|
30
|
30
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
31
|
31
97013-06020-00 Bolt |
97013-06020-00 |
from US $1.42 |
||
|
32
|
32
929-03066-00-00
Washer, Plate
|
929-03066-00-00 |
— | ||
| replacement | |||||
|
32
|
32
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
