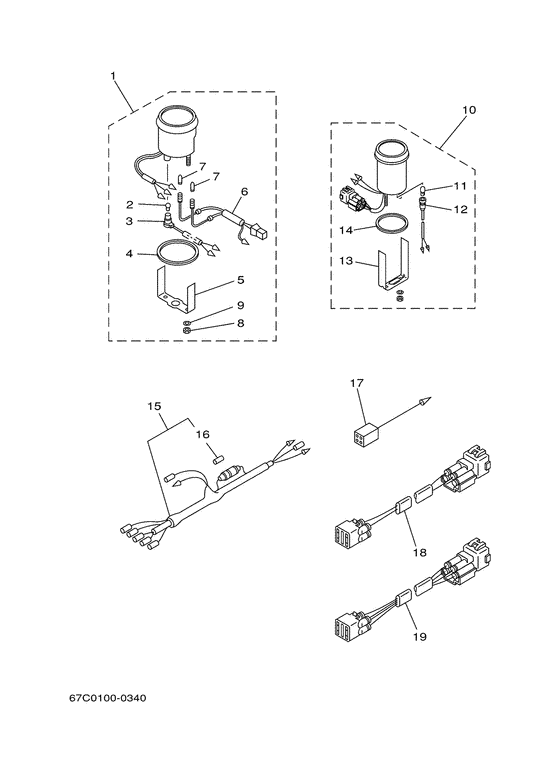

Meter Diagram Yamaha F30 M(E/W/H/D/T)S/L/X
- Year
- 2001
- Model
- F30A
- Model code
- 69H
- Year
- 2001
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 30
- Sales region
- Europe (General) (340)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6Y5-83540-20-00 Fourstroke 50 TachometerAp |
6Y5-83540-20-00 |
US $451.48 |
||
|
02
|
02
6Y5-83517-00-00 Bulb (T10, 12V-17W) |
6Y5-83517-00-00 |
from US $3.26 |
||
| replacement | |||||
|
02
|
02
3GM-83517-00-00 Bulb (12V-1.7W) |
3GM-83517-00-00 |
from US $3.26 |
||
|
03
|
03
6Y5-83536-10-00 Socket, Meter |
6Y5-83536-10-00 |
from US $10.34 |
||
| replacement | |||||
|
03
|
03
688-83536-00-00 Socket, Meter |
688-83536-00-00 |
from US $11.76 |
||
|
04
|
04
6Y5-83523-00-00 Damper |
6Y5-83523-00-00 |
from US $3.54 |
||
|
05
|
05
6Y5-83514-00-00 Plate, Fitting |
6Y5-83514-00-00 |
from US $11.76 |
||
|
06
|
06
6Y5-83509-10-00 Socket Cord Assy |
6Y5-83509-10-00 |
from US $33.29 |
||
|
07
|
07
6Y5-83518-00-00 Bulb (12V-1.7W T6.5) |
6Y5-83518-00-00 |
from US $4.53 |
||
| replacement | |||||
|
07
|
07
3FV-83517-00-00 Bulb (12V-1.7W) |
3FV-83517-00-00 |
from US $3.38 |
||
|
08
|
08
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
09
|
09
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
10
|
10
6Y5-83670-12-00 Trim Meter AssyAp |
6Y5-83670-12-00 |
US $411.93 |
||
|
11
|
11
6Y5-83518-00-00 Bulb (12V-1.7W T6.5) |
6Y5-83518-00-00 |
from US $4.53 |
||
| replacement | |||||
|
11
|
11
3FV-83517-00-00 Bulb (12V-1.7W) |
3FV-83517-00-00 |
from US $3.38 |
||
|
12
|
12
6Y5-83536-00-00 Socket, Meter |
6Y5-83536-00-00 |
from US $10.34 |
||
|
13
|
13
6Y5-83544-00-00 Plate, Fitting |
6Y5-83544-00-00 |
from US $12.33 |
||
|
14
|
14
688-83664-00-00 Damper |
688-83664-00-00 |
from US $3.68 |
||
|
15
|
15
6Y5-83553-00-00 Wire, Lead (L=2.5M)Ap |
6Y5-83553-00-00 |
US $57.20 |
||
| replacement | |||||
|
15
|
15
6Y5-83553-N0-00 Wire, Lead (L=2.5M)Ap |
6Y5-83553-N0-00 |
US $88.98 |
||
|
16
|
16
1E6-82151-00-00 Fuse (10A) |
1E6-82151-00-00 |
from US $1.70 |
||
|
17
|
17
6Y5-82117-00-00 Wire, Lead (Black) (L300)Ap |
6Y5-82117-00-00 |
from US $6.52 |
||
|
18
|
18
6R3-82521-70-00 Wire, Lead (L=7M)Ap |
6R3-82521-70-00 |
from US $71.15 |
||
|
19
|
19
6R3-82553-70-00 Extension, Wire Lead (L=7.0M)Ap |
6R3-82553-70-00 |
from US $108.59 |
||
