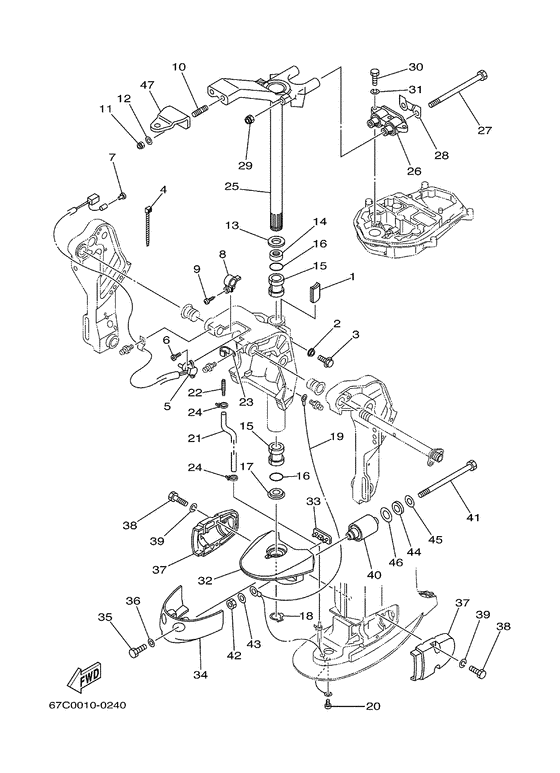

Bracket 3 Diagram Yamaha F30 M(E/W/H/D/T)S/L/X
- Year
- 2002
- Model
- F30A
- Model code
- 69H
- Year
- 2002
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 30
- Sales region
- Europe (General) (360)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6J8-42528-00-00 Plate, Friction |
6J8-42528-00-00 |
US $21.54 |
||
|
02
|
02
689-43373-01-00 Seal, Damper |
689-43373-01-00 |
US $4.53 |
||
|
03
|
03
90105-06M18-00 Bolt, Flange |
90105-06M18-00 |
from US $2.74 |
||
|
10
|
10
90116-10M28-00 Bolt, Stud |
90116-10M28-00 |
US $7.65 |
||
| replacement | |||||
|
10
|
10
90116-10063-00 Bolt, Stud |
90116-10063-00 |
from US $5.64 |
||
|
11
|
11
901-85100-51-00
Nut, Self-Locking
|
901-85100-51-00 |
— | ||
| replacement | |||||
|
11
|
11
90185-10027-00 Nut, Self-Locking |
90185-10027-00 |
from US $1.42 |
||
|
12
|
12
92995-10600-00 Washer, Plate |
92995-10600-00 |
US $0.90 |
||
| replacement | |||||
|
12
|
12
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.07 |
||
|
13
|
13
90201-30M00-00 Washer, Plate |
90201-30M00-00 |
from US $4.64 |
||
|
14
|
14
90386-30M78-00 Bush |
90386-30M78-00 |
from US $2.66 |
||
|
15
|
15
90386-30M77-00 Bush |
90386-30M77-00 |
from US $9.92 |
||
|
16
|
16
93210-29M94-00 O-Ring |
93210-29M94-00 |
from US $2 |
||
|
17
|
17
90386-30M60-00 Bush |
90386-30M60-00 |
from US $2.66 |
||
|
18
|
18
93410-28M06-00 Circlip |
93410-28M06-00 |
from US $7.23 |
||
|
19
|
19
67C-82127-10-00 Wire, Lead 2L |
67C-82127-10-00 |
from US $16.15 |
||
|
19
|
19
67C-82127-00-00 Wire, Lead 2S |
67C-82127-00-00 |
from US $16.15 |
||
|
20
|
20
97885-06008-00 Screw, Pan Head |
97885-06008-00 |
from US $1.56 |
||
|
21
|
21
90445-07M53-00 Hose (L700)L |
90445-07M53-00 |
US $27.06 |
||
| replacement | |||||
|
21
|
21
904-4507M-21-00 Hose (L1160)L |
904-4507M-21-00 |
from US $16 |
||
|
21
|
21
90445-07MF1-00 Hose (L570)S |
90445-07MF1-00 |
from US $4.39 |
||
|
22
|
22
6E5-83558-00-00 End, Nipple |
6E5-83558-00-00 |
from US $3.64 |
||
|
23
|
23
90465-08M07-00 Clamp |
90465-08M07-00 |
US $3.40 |
||
| replacement | |||||
|
23
|
23
90465-08028-00 Clamp |
90465-08028-00 |
from US $3.40 |
||
|
24
|
24
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
24
|
24
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.21 |
||
|
24
|
24
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.34 |
||
|
25
|
25
67C-42510-00-4D Steering Bracket AssyS |
67C-42510-00-4D |
US $556.51 |
||
| replacement | |||||
|
25
|
25
67C-42510-01-8D Steering Bracket AssyS |
67C-42510-01-8D |
from US $294.02 |
||
|
25
|
25
67C-42510-10-4D Steering Bracket AssyL |
67C-42510-10-4D |
US $355.07 |
||
| replacement | |||||
|
25
|
25
67C-42510-11-8D Steering Bracket AssyL |
67C-42510-11-8D |
from US $294.02 |
||
|
26
|
26
67C-44514-00-4D Mount Damper, Upper SideS |
67C-44514-00-4D |
US $115.50 |
||
| replacement | |||||
|
26
|
26
67C-44514-00-00 Mount Damper, Upper SideS |
67C-44514-00-00 |
from US $115.50 |
||
|
26
|
26
67C-44514-10-4D Mount Damper, Upper SideL |
67C-44514-10-4D |
US $115.50 |
||
| replacement | |||||
|
26
|
26
67C-44514-10-00 Mount Damper, Upper SideL |
67C-44514-10-00 |
from US $115.50 |
||
|
27
|
27
90101-08M15-00 Bolt |
90101-08M15-00 |
US $14.73 |
||
| replacement | |||||
|
27
|
27
90109-08229-00 Bolt |
90109-08229-00 |
from US $14.73 |
||
|
28
|
28
66T-44526-30-00 Plate |
66T-44526-30-00 |
from US $17.57 |
||
|
29
|
29
90185-08045-00 Nut, Self-Locking |
90185-08045-00 |
US $1.42 |
||
| replacement | |||||
|
29
|
29
901-85080-18-00 Nut, Self-Locking |
901-85080-18-00 |
from US $1.42 |
||
|
30
|
30
97075-08030-00 Bolt |
97075-08030-00 |
US $2.69 |
||
| replacement | |||||
|
30
|
30
97080-08030-00 Bolt |
97080-08030-00 |
from US $2.69 |
||
|
31
|
31
92995-08100-00 Washer, Spring |
92995-08100-00 |
from US $1.56 |
||
| replacement | |||||
|
31
|
31
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
32
|
32
67C-44551-01-4D Housing, Lower Mount RubberS |
67C-44551-01-4D |
US $119.37 |
||
| replacement | |||||
|
32
|
32
67C-44551-01-8D Housing, Lower Mount Rubber 1, For S SizeNote: for S 16.1" S |
67C-44551-01-8D |
from US $119.37 |
||
|
32
|
32
67C-44551-10-4D Housing, Lower Mount Rubber 1L |
67C-44551-10-4D |
US $120.48 |
||
| replacement | |||||
|
32
|
32
67C-44551-10-8D Housing, Lower Mount Rubber 1, For L SizeNOTE: for L:21" L |
67C-44551-10-8D |
from US $120.48 |
||
|
33
|
33
67C-44575-00-00 Damper, Lower Mount Rubber |
67C-44575-00-00 |
from US $14.89 |
||
|
34
|
34
67C-44553-00-4D Cover, Lower Mount |
67C-44553-00-4D |
US $42.55 |
||
| replacement | |||||
|
34
|
34
67C-44553-00-8D Cover, Lower Mount |
67C-44553-00-8D |
from US $42.55 |
||
|
35
|
35
97095-08020-00 Bolt |
97095-08020-00 |
from US $3.54 |
||
|
36
|
36
929-95086-00-00
Washer, Plate
|
929-95086-00-00 |
— | ||
| replacement | |||||
|
36
|
36
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
37
|
37
67C-44552-00-4D Housing, Lower Mount Rubber 2 |
67C-44552-00-4D |
US $74.47 |
||
| replacement | |||||
|
37
|
37
67C-44552-01-8D Housing, Lower Mount Rubber |
67C-44552-01-8D |
from US $72.20 |
||
|
38
|
38
97075-08030-00 Bolt |
97075-08030-00 |
US $2.69 |
||
| replacement | |||||
|
38
|
38
97080-08030-00 Bolt |
97080-08030-00 |
from US $2.69 |
||
|
39
|
39
92995-08100-00 Washer, Spring |
92995-08100-00 |
from US $1.56 |
||
| replacement | |||||
|
39
|
39
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
40
|
40
67C-44555-11-94 Mount Damper, Lower SideL |
67C-44555-11-94 |
US $54.30 |
||
| replacement | |||||
|
40
|
40
67C-44555-11-00 Mount Damper, Lower SideL |
67C-44555-11-00 |
from US $54.30 |
||
|
40
|
40
67C-44555-21-94 Mount Damper, Lower SideS |
67C-44555-21-94 |
US $54.30 |
||
| replacement | |||||
|
40
|
40
67C-44555-21-00 Mount Damper, Lower SideS |
67C-44555-21-00 |
from US $54.30 |
||
|
41
|
41
90109-12MA3-00 Bolt |
90109-12MA3-00 |
from US $26.07 |
||
|
42
|
42
95380-12700-00 Nut |
95380-12700-00 |
from US $3.68 |
||
| replacement | |||||
|
42
|
42
95380-12800-00 Nut, Crown |
95380-12800-00 |
from US $3.64 |
||
|
43
|
43
90201-12M16-00 Washer, Plate |
90201-12M16-00 |
from US $2.32 |
||
|
44
|
44
90202-21100-00 Washer, Plate |
90202-21100-00 |
from US $7.65 |
||
|
45
|
45
90201-13M19-00 Washer, Plate |
90201-13M19-00 |
from US $5.96 |
||
|
46
|
46
90201-22M05-00 Washer, Plate |
90201-22M05-00 |
from US $4.96 |
||
