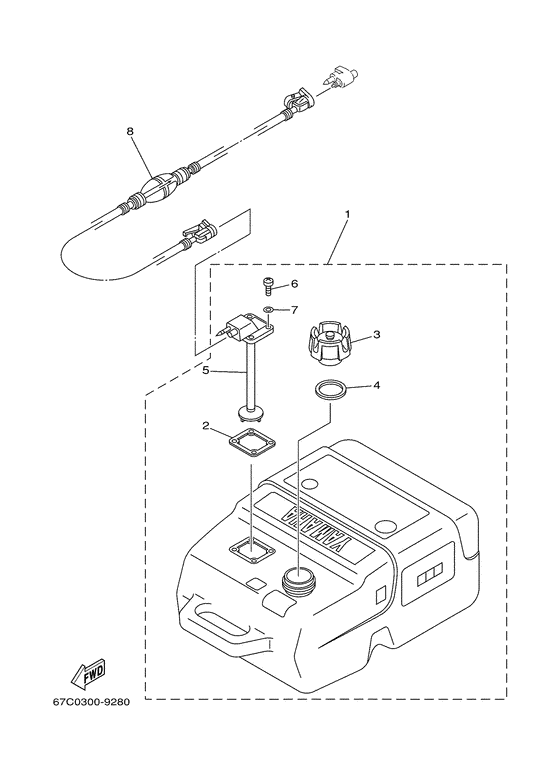

Fuel tank Diagram Yamaha F30 M(E/W/H/D/T)S/L/X
- Year
- 2002
- Model
- F30A
- Model code
- 69H
- Year
- 2002
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 30
- Sales region
- Europe (General) (360)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6YK-24201-01-00 Fuel Tank Assy (25L)Ap plastic, 25l, "scepter" |
6YK-24201-01-00 |
US $401.02 |
||
| replacement | |||||
|
01
|
01
6YK-24201-03-0Q
Fuel Tank Assy (25L)
Ap plastic, 25l, "scepter" |
6YK-24201-03-0Q |
— | ||
|
01
|
01
6YK-24201-10-00 Fuel Tank Assy (25L)Fuel tank assy (25l) Ap for sav |
6YK-24201-10-00 |
US $265.33 |
||
|
02
|
02
6YL-24268-01-00 Gasket, Fuel Meter |
6YL-24268-01-00 |
from US $9.21 |
||
|
03
|
03
6YK-24610-00-00
Cap Assy
Avec indicateur |
6YK-24610-00-00 |
— | ||
|
03
|
03
6YK-24610-10-00 Cap AssyFor sav- without indicator |
6YK-24610-10-00 |
from US $34.57 |
||
|
04
|
04
6YL-24641-00-00 Gasket, Cap 1 |
6YL-24641-00-00 |
US $7.37 |
||
|
05
|
05
6YK-24260-01-00 Fuel Meter Assy |
6YK-24260-01-00 |
US $116.33 |
||
|
06
|
06
90157-05M16-00 Screw, Pan Head |
90157-05M16-00 |
from US $2.69 |
||
|
07
|
07
6YL-24329-00-00 Seal |
6YL-24329-00-00 |
from US $1.70 |
||
|
08
|
08
6YL-24306-52-00 Fuel Pipe Comp. 1Ap |
6YL-24306-52-00 |
US $150.59 |
||
| replacement | |||||
|
08
|
08
6YL-24306-64-00 Fuel Pipe Comp. 1Ap |
6YL-24306-64-00 |
from US $268.03 |
||
