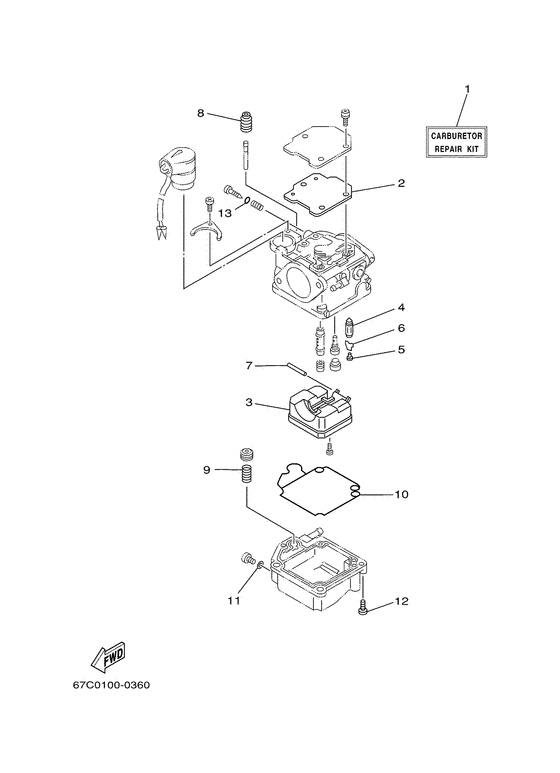

Repair kit 2 Diagram Yamaha F30 M(E/W/H/D/T)S/L/X
- Year
- 2002
- Model
- F30A
- Model code
- 69H
- Year
- 2002
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 30
- Sales region
- Europe (General) (360)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
67C-W0093-00-00
Carburetor Repair Kit
|
67C-W0093-00-00 |
— | ||
| replacement | |||||
|
01
|
01
65W-W0093-02-00 Carburetor Repair Kit |
65W-W0093-02-00 |
from US $98.20 |
||
|
02
|
02
65W-14126-10-00 Gasket |
65W-14126-10-00 |
from US $14.17 |
||
|
03
|
03
63V-14985-00-00 Float |
63V-14985-00-00 |
from US $23.94 |
||
|
04
|
04
6G1-14546-00-00
Valve, Needle
|
6G1-14546-00-00 |
— | ||
| replacements | |||||
|
04
|
04
6G1-14546-01-00
Valve, Needle
|
6G1-14546-01-00 |
— | ||
|
04
|
04
6AH-14546-00-00 Valve, Needle |
6AH-14546-00-00 |
from US $19.98 |
||
|
05
|
05
676-14186-00-00 Pin, Float |
676-14186-00-00 |
from US $1.66 |
||
|
06
|
06
663-14159-00-00
Clip
|
663-14159-00-00 |
— | ||
| replacement | |||||
|
06
|
06
633-14159-00-00 Clip |
633-14159-00-00 |
from US $3.32 |
||
|
07
|
07
6H4-14548-00-00 Pin, Float Arm |
6H4-14548-00-00 |
from US $3.97 |
||
|
08
|
08
65W-14373-00-00
Cover, Plunger Cap
|
65W-14373-00-00 |
— | ||
| replacement | |||||
|
08
|
08
65W-14373-01-00 Cover, Plunger Cap |
65W-14373-01-00 |
from US $10.63 |
||
|
09
|
09
65W-14335-00-00 Spring, Plunger |
65W-14335-00-00 |
from US $7.08 |
||
|
10
|
10
65W-14384-00-00 Gasket, Float Chamber |
65W-14384-00-00 |
from US $9.49 |
||
|
11
|
11
65W-14398-00-00
Gasket
|
65W-14398-00-00 |
— | ||
| replacement | |||||
|
11
|
11
6G1-14398-00-00 Washer |
6G1-14398-00-00 |
from US $1.70 |
||
|
12
|
12
979-80041-14-00
Screw, With Washer
|
979-80041-14-00 |
— | ||
| replacement | |||||
|
12
|
12
98580-04014-00 Screw, Pan Head |
98580-04014-00 |
from US $1.42 |
||
|
13
|
13
67C-14397-00-00
O-Ring
|
67C-14397-00-00 |
— | ||
| replacement | |||||
|
13
|
13
67F-14398-10-00 O-Ring |
67F-14398-10-00 |
from US $1.84 |
||
