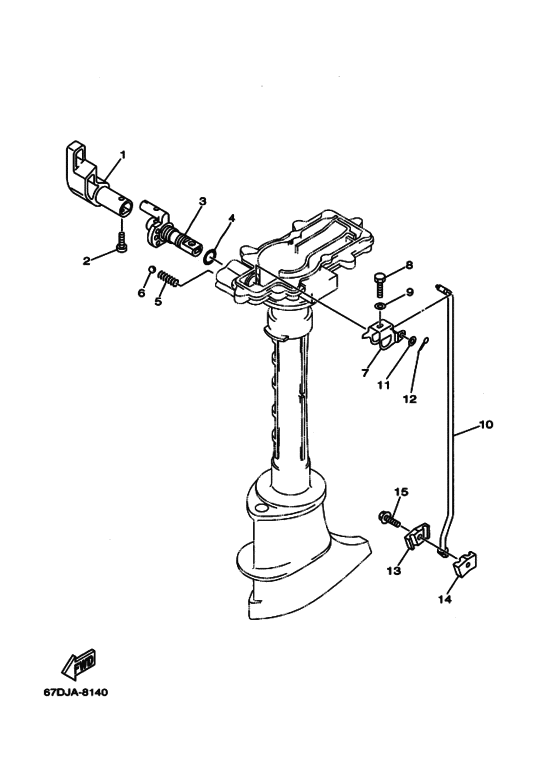

Capsulevacuum distributor Diagram Yamaha F4 MHS/L
- Year
- 1998
- Model
- F4A
- Model code
- 67D
- Year
- 1998
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 4
- Sales region
- Japan (010)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
67D-44111-00-00
Handle, Gear Shift
|
67D-44111-00-00 |
— | ||
| replacement | |||||
|
1
|
1
68D-G4111-00-00 Handle, Gear Shift |
68D-G4111-00-00 |
from US $19.69 |
||
|
2
|
2
98680-05520-00 Screw, Flat Headスクリユ，オーバルヘツド; |
98680-05520-00 |
from US $2.23 |
||
| replacements | |||||
|
2
|
2
98780-05020-00 Screw, Flat Headスクリユ，オーバルヘツド; |
98780-05020-00 |
from US $1.82 |
||
|
2
|
2
986-80050-20-00 Ybs51-520 Screw,oval Headスクリユ，オーバルヘツド; |
986-80050-20-00 |
US $1.77 |
||
|
3
|
3
67D-44119-00-9M Shaft, Change |
67D-44119-00-9M |
US $100.44 |
||
| replacement | |||||
|
3
|
3
67D-WG411-00-9M Change Shaft Set |
67D-WG411-00-9M |
US $100.44 |
||
|
4
|
4
93210-12327-00 O-Ring |
93210-12327-00 |
from US $1.70 |
||
| replacement | |||||
|
4
|
4
93210-12790-00 O-Ring |
93210-12790-00 |
from US $1.34 |
||
|
5
|
5
90501-12274-00 1090 Spring, Compression |
90501-12274-00 |
from US $1.98 |
||
|
6
|
6
93505-16024-00 Ball, Steelボール; |
93505-16024-00 |
from US $2.45 |
||
|
7
|
7
6E0-44121-00-00 Lever, Shift Rodレバー，シフトロツド; |
6E0-44121-00-00 |
from US $9.78 |
||
|
8
|
8
970-95060-25-00
Bolt
ボルト; |
970-95060-25-00 |
— | ||
| replacement | |||||
|
8
|
8
90101-06M27-00 Boltボルト; |
90101-06M27-00 |
from US $1.35 |
||
|
9
|
9
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
9
|
9
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
10
|
10
67D-44143-00-00 Rod, Shift |
67D-44143-00-00 |
US $33.51 |
||
| replacement | |||||
|
10
|
10
67D-44143-01-00 Rod, Shift |
67D-44143-01-00 |
from US $22.28 |
||
|
11
|
11
92990-05600-00 Washer, Plateワツシヤ，プレート; |
92990-05600-00 |
from US $1.07 |
||
|
12
|
12
91490-16010-00 Pin. Cotter |
91490-16010-00 |
from US $1.34 |
||
|
13
|
13
67D-44145-00-00
Connector, Shift Rod 1
|
67D-44145-00-00 |
— | ||
| replacement | |||||
|
13
|
13
68D-G4145-00-00 Connector, Shift Rod 1 |
68D-G4145-00-00 |
from US $23.99 |
||
|
14
|
14
67D-44146-00-00
Connector, Shift Rod 2
．コネクタ，シフトロツド ; Ｍ６ Ｘ １０ |
67D-44146-00-00 |
— | ||
| replacement | |||||
|
14
|
14
68D-G4146-00-00 Connector, Shift Rod 2．コネクタ，シフトロツド ; Ｍ６ Ｘ １０ |
68D-G4146-00-00 |
from US $28.35 |
||
|
15
|
15
95895-06020-00 Bolt, Flange |
95895-06020-00 |
US $1.42 |
||
| replacements | |||||
|
15
|
15
95880-06020-00 Bolt, Flange(Jk3) |
95880-06020-00 |
from US $1.56 |
||
|
15
|
15
95D95-06020-00 Bolt, Flange Deep Re |
95D95-06020-00 |
from US $1.07 |
||
|
15
|
15
95D95-06020-00 Bolt, Flange Deep Re |
95D95-06020-00 |
from US $1.07 |
||
