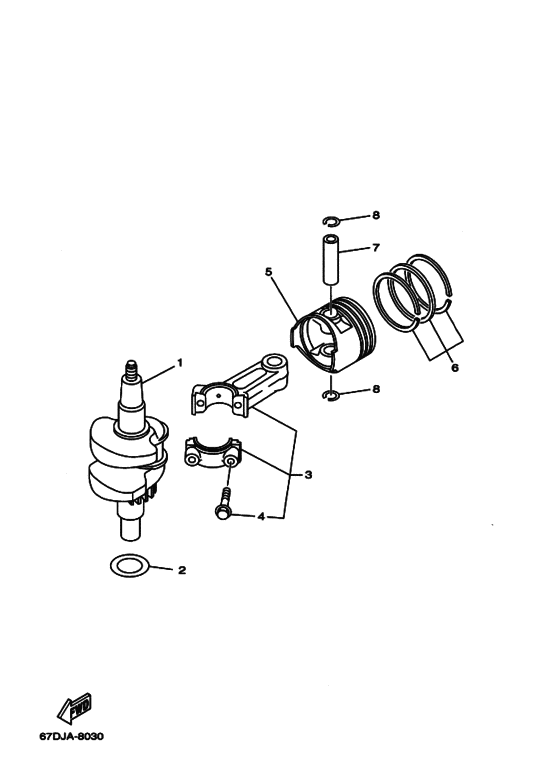

Crankshaft & Piston Diagram Yamaha F4 MHS/L
- Year
- 1998
- Model
- F4A
- Model code
- 67D
- Year
- 1998
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 4
- Sales region
- Japan (010)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
67D-11400-00-00 Crankshaft Assy |
67D-11400-00-00 |
from US $282.55 |
||
|
2
|
2
90201-266P2-00 Washer, Plateワツシヤ，プレート; |
90201-266P2-00 |
from US $3.69 |
||
|
3
|
3
67D-11650-00-00 Connecting Rod Assyコネクテイングロツドアセンブリ; |
67D-11650-00-00 |
from US $104.49 |
||
|
4
|
4
67D-11654-00-00 Bolt, Connecting Rod．ボルト，コネクテイングロツド; |
67D-11654-00-00 |
from US $2.83 |
||
|
5
|
5
67D-11631-00-96 Piston (Std)ＳＴＤ |
67D-11631-00-96 |
US $101.27 |
||
| replacement | |||||
|
5
|
5
68D-E1631-00-96 Piston (Std)ＳＴＤ |
68D-E1631-00-96 |
from US $101.27 |
||
|
5
|
5
67D-11635-00-00
Piston (0.25Mm O/s)
．ピストン ; ０２５ＭＭ Ｏ／Ｓ; ＡＰ |
67D-11635-00-00 |
— | ||
|
5
|
5
67D-11636-00-00
Piston (0.50Mm O/s)
．ピストン ; ０５０ＭＭ Ｏ／Ｓ; ＡＰ |
67D-11636-00-00 |
— | ||
|
6
|
6
67D-11603-00-00 Piston Ring Set (Std)ＳＴＤ |
67D-11603-00-00 |
US $37.86 |
||
|
6
|
6
67D-11604-00-00
Piston Ring Set (0.25Mm O/s)
．ピストンリングセツト ; ０２５ＭＭ Ｏ／Ｓ; ＡＰ |
67D-11604-00-00 |
— | ||
|
6
|
6
67D-11605-00-00
Piston Ring Set (0.50Mm O/s)
．ピストンリングセツト ; ０５０ＭＭ Ｏ／Ｓ; ＡＰ |
67D-11605-00-00 |
— | ||
|
7
|
7
67D-11633-00-00 Pin, Piston |
67D-11633-00-00 |
US $10.02 |
||
| replacement | |||||
|
7
|
7
68D-E1633-00-00 Pin, Piston |
68D-E1633-00-00 |
from US $10.02 |
||
|
8
|
8
93450-14088-00 Circlipサークリツプ; |
93450-14088-00 |
from US $1.66 |
||
