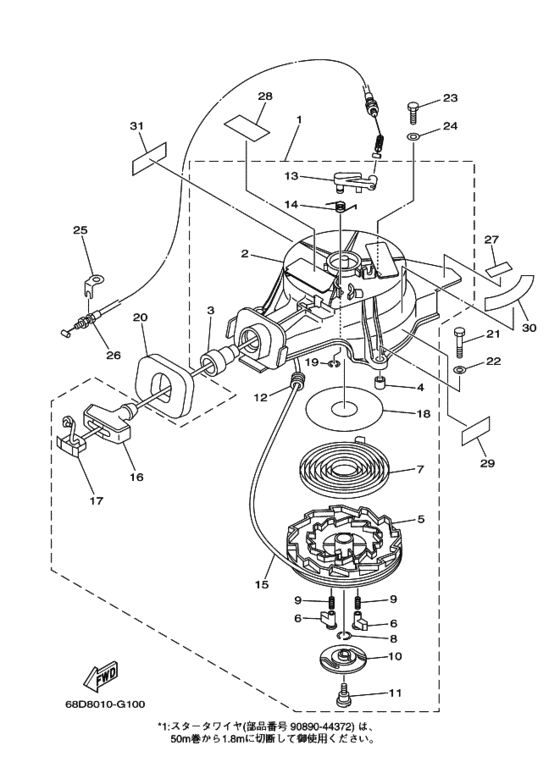

Starter Diagram Yamaha F4 MHS/L
- Year
- 2008
- Model
- F4A
- Model code
- 68D
- Year
- 2008
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 4
- Sales region
- Japan (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
67D-15710-02-00 Starter Assyスタータアセンブリ; |
67D-15710-02-00 |
from US $123.62 |
||
|
2
|
2
67D-15711-01-00 Case, Starter．ケース，スタータ; |
67D-15711-01-00 |
from US $91.22 |
||
|
3
|
3
63V-15795-01-00 Guide, Rope．ガイド，ロープ; |
63V-15795-01-00 |
from US $9.07 |
||
|
4
|
4
67D-15764-00-00 Collar 1．カラー １; |
67D-15764-00-00 |
from US $1.70 |
||
|
5
|
5
67D-15714-00-00 Drum, Sheave．ドラム，シーブ; |
67D-15714-00-00 |
from US $36.05 |
||
|
6
|
6
67D-15741-00-00 Pawl, Drive．ポール，ドライブ; |
67D-15741-00-00 |
from US $9.35 |
||
|
7
|
7
67D-15713-00-00 Spring, Starter．スプリング，スタータ; |
67D-15713-00-00 |
from US $22.10 |
||
|
8
|
8
67D-15705-00-00 Spring, Drive Pawl．スプリング，ドライブポール; |
67D-15705-00-00 |
from US $2.41 |
||
|
9
|
9
67D-15767-00-00 Spring．スプリング; |
67D-15767-00-00 |
from US $1.98 |
||
|
10
|
10
67D-15735-00-00 Guide, Cam．ガイド，カム; |
67D-15735-00-00 |
from US $8.64 |
||
|
11
|
11
67D-15793-00-00 Screw．スクリユ; |
67D-15793-00-00 |
from US $4.39 |
||
|
12
|
12
63V-15764-00-00 Collar 1．カラー １; |
63V-15764-00-00 |
from US $9.07 |
||
|
13
|
13
67D-15794-01-00 Stopper．ストツパ; |
67D-15794-01-00 |
from US $16.09 |
||
|
14
|
14
67D-15734-00-00 Spring, Return．スプリング，リターン; |
67D-15734-00-00 |
from US $4.53 |
||
|
16
|
16
6G1-15755-00-00 Handle, Starter．ハンドル，スタータ; |
6G1-15755-00-00 |
from US $8.60 |
||
|
17
|
17
6G1-15779-00-00 Cover．カバー; |
6G1-15779-00-00 |
from US $3.68 |
||
|
18
|
18
67D-15739-00-00 Washer, Thrust．ワツシヤ，スラスト; |
67D-15739-00-00 |
from US $15.44 |
||
|
19
|
19
67D-15744-00-00 Circlip．サークリツプ; |
67D-15744-00-00 |
from US $1.42 |
||
|
20
|
20
67D-15762-00-00 Seal, Rubber 2シール，ラバー ２; |
67D-15762-00-00 |
US $11.07 |
||
|
21
|
21
97095-06035-00 Bolt(6R8)ボルト; |
97095-06035-00 |
from US $2.69 |
||
| replacement | |||||
|
21
|
21
97080-06035-00 Bolt(J52)ボルト; |
97080-06035-00 |
from US $1.66 |
||
|
22
|
22
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
22
|
22
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
23
|
23
97095-06020-00 Boltボルト; |
97095-06020-00 |
US $1.56 |
||
| replacement | |||||
|
23
|
23
970-80060-20-00 Boltボルト; |
970-80060-20-00 |
from US $1.56 |
||
|
24
|
24
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
24
|
24
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
25
|
25
67D-15772-00-00 Stay 2ステー ２; |
67D-15772-00-00 |
US $4.34 |
||
|
26
|
26
67D-15770-00-00 Cable Comp., Starter Stopケーブルコンプリート，スタータストツプ; |
67D-15770-00-00 |
from US $26.35 |
||
|
27
|
27
67D-42791-10-00 Mark 1マーク １; |
67D-42791-10-00 |
from US $1.17 |
||
|
28
|
28
6AH-81995-00-00 Label, Warning |
6AH-81995-00-00 |
US $10.20 |
||
| replacement | |||||
|
28
|
28
6EE-H1995-00-00 Label, Warning |
6EE-H1995-00-00 |
US $10.20 |
||
|
29
|
29
68D-E3437-01-00 Mark, Caution |
68D-E3437-01-00 |
US $4.68 |
||
|
30
|
30
68D-E4427-01-00 Label, Instruction |
68D-E4427-01-00 |
US $15.73 |
||
|
31
|
31
6AH-81994-00-00 Label, Safety |
6AH-81994-00-00 |
US $10.20 |
||
| replacement | |||||
|
31
|
31
6EE-H1994-00-00 Label, Safety |
6EE-H1994-00-00 |
US $10.20 |
||
