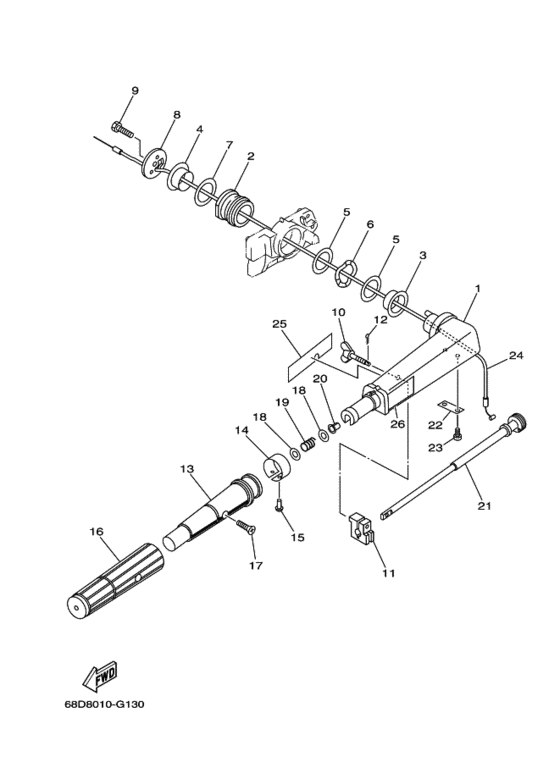

Steering Diagram Yamaha F4 MHS/L
- Year
- 2008
- Model
- F4A
- Model code
- 68D
- Year
- 2008
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 4
- Sales region
- Japan (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
68D-G2111-00-4D Handle, Steering |
68D-G2111-00-4D |
from US $83.48 |
||
|
2
|
2
67D-42129-00-00 Bushing, Rubberブツシング，ラバー; |
67D-42129-00-00 |
from US $16.72 |
||
|
3
|
3
68D-G2171-00-00 Bushing |
68D-G2171-00-00 |
from US $8.60 |
||
|
4
|
4
68D-G2172-00-00 Bushing 2 |
68D-G2172-00-00 |
from US $9.09 |
||
|
5
|
5
68D-G2181-00-00 Washer |
68D-G2181-00-00 |
from US $15.50 |
||
|
6
|
6
69M-G2188-00-00 Washer, Waveワツシヤ，ウエーブ; |
69M-G2188-00-00 |
from US $13.32 |
||
|
7
|
7
68D-G2182-00-00 Washer 2 |
68D-G2182-00-00 |
from US $13.88 |
||
|
8
|
8
68D-G2131-01-00 Cover, Handle Steeringカバー，ハンドルステアリング; |
68D-G2131-01-00 |
from US $24.19 |
||
|
9
|
9
97075-08025-00 Boltボルト; |
97075-08025-00 |
US $1.42 |
||
| replacement | |||||
|
9
|
9
97D75-08025-00 Bolt, Hexagon Deep Recessボルト; |
97D75-08025-00 |
from US $1.42 |
||
|
10
|
10
6G1-42125-01-00 Bolt, Friction Adjustingボルト，フリクシヨンアジヤスト; |
6G1-42125-01-00 |
from US $10.63 |
||
|
11
|
11
6G1-42126-00-00 Friction, Steering Handle Gripフリクシヨン，ステアリングハンドルグリツプ; |
6G1-42126-00-00 |
from US $8.64 |
||
| replacement | |||||
|
11
|
11
6EE-G2126-00-00 Friction, Steeringフリクシヨン，ステアリングハンドルグリツプ; |
6EE-G2126-00-00 |
from US $2.98 |
||
|
12
|
12
91490-16010-00 Pin. Cotter |
91490-16010-00 |
from US $1.34 |
||
|
13
|
13
68D-G2119-00-00 Grip, Steering Handle |
68D-G2119-00-00 |
US $31.74 |
||
| replacement | |||||
|
13
|
13
67D-42119-01-00 Grip, Steering Handle |
67D-42119-01-00 |
from US $31.74 |
||
|
14
|
14
68D-G2137-00-00 Indicator, Throttleインジケータ，スロツトル; |
68D-G2137-00-00 |
US $8.22 |
||
| replacement | |||||
|
14
|
14
6L5-42137-00-00 Indicator, Throttleインジケータ，スロツトル; |
6L5-42137-00-00 |
from US $8.22 |
||
|
15
|
15
90269-02M09-00 Rivet |
90269-02M09-00 |
from US $1.98 |
||
|
16
|
16
68D-G2177-10-00 Rubber, Handleラバー，ハンドル; |
68D-G2177-10-00 |
US $14.17 |
||
| replacements | |||||
|
16
|
16
6EE-G2177-00-00 Rubber, Handleラバー，ハンドル; |
6EE-G2177-00-00 |
US $14.17 |
||
|
16
|
16
6EE-G2177-01-00 Rubber, Handleラバー，ハンドル; |
6EE-G2177-01-00 |
from US $14.17 |
||
|
17
|
17
901-4905M-13-00
Screw
|
901-4905M-13-00 |
— | ||
| replacement | |||||
|
17
|
17
901-52050-11-00 Screw, Countersunk |
901-52050-11-00 |
from US $1.34 |
||
|
18
|
18
90201-10M02-00 Washer, Plateワツシヤ，プレート; |
90201-10M02-00 |
from US $1.98 |
||
|
19
|
19
90501-23215-00 Spring, Compression |
90501-23215-00 |
from US $3.40 |
||
|
20
|
20
90386-08032-00 Bush |
90386-08032-00 |
from US $2.13 |
||
|
21
|
21
6G1-42138-01-00 Lever, Throttleレバー，スロツトル; |
6G1-42138-01-00 |
from US $46.42 |
||
| replacement | |||||
|
21
|
21
6EG-G2138-00-00 Lever, Throttleレバー，スロツトル; |
6EG-G2138-00-00 |
from US $23.66 |
||
|
22
|
22
68D-G2159-00-00 Stay |
68D-G2159-00-00 |
US $6.38 |
||
| replacement | |||||
|
22
|
22
6E0-42159-02-00 Stay |
6E0-42159-02-00 |
from US $6.38 |
||
|
23
|
23
978-85050-12-00 Screw, Pan Head |
978-85050-12-00 |
from US $1.70 |
||
| replacement | |||||
|
23
|
23
98580-05012-00 Screw, Pan Head |
98580-05012-00 |
from US $1.34 |
||
|
24
|
24
68D-F6301-00-00 Throttle Cable Assyスロツトルケーブルアセンブリ; |
68D-F6301-00-00 |
US $25.36 |
||
| replacement | |||||
|
24
|
24
68D-F6301-10-00 Throttle Cable Assyスロツトルケーブルアセンブリ; |
68D-F6301-10-00 |
from US $25.36 |
||
|
25
|
25
68D-E571Y-00-00 Mark, Caution |
68D-E571Y-00-00 |
US $11.33 |
||
|
26
|
26
6AH-42794-00-00 Label, Warning (General)ジエネラル |
6AH-42794-00-00 |
US $10.20 |
||
| replacement | |||||
|
26
|
26
6EE-G2794-00-00 Label, Warning (General)ジエネラル |
6EE-G2794-00-00 |
US $10.20 |
||
