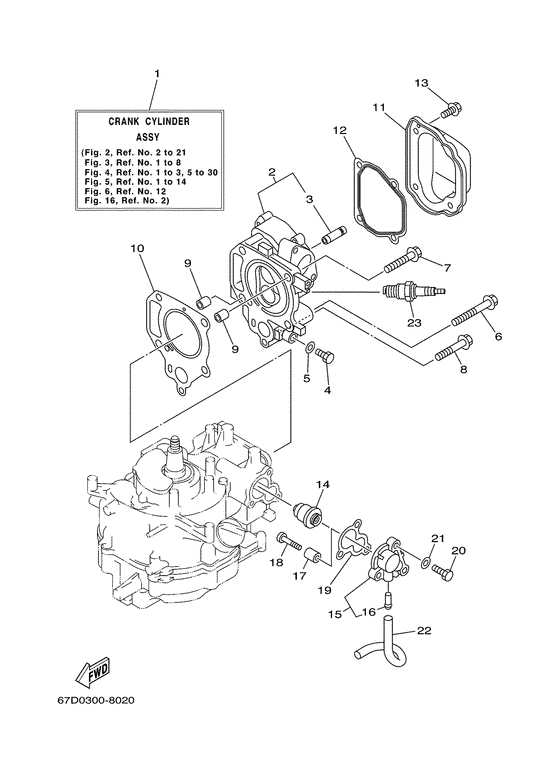

Cylinder. crankcase Diagram Yamaha F4 MHS/L
- Year
- 2000
- Model
- F4A
- Model code
- 67D
- Year
- 2000
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 4
- Sales region
- Europe (General) (020)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
67D-W0090-01-1S Crank Cylinder Assy |
67D-W0090-01-1S |
US $1,433.38 |
||
| replacement | |||||
|
01
|
01
68D-WE090-11-1S Crank Cylinder Assy |
68D-WE090-11-1S |
from US $1,433.38 |
||
|
02
|
02
67D-11111-00-94
Head, Cylinder 1
|
67D-11111-00-94 |
— | ||
| replacements | |||||
|
02
|
02
68D-E1111-10-1S Head, Cylinder 1 |
68D-E1111-10-1S |
from US $209.40 |
||
|
02
|
02
68D-E1111-00-94 Head, Cylinder 1 |
68D-E1111-00-94 |
US $738.92 |
||
|
03
|
03
67D-11133-10-00 Guide, Valve 1 |
67D-11133-10-00 |
from US $21.82 |
||
| replacement | |||||
|
03
|
03
6EE-E1133-10-00 Guide, Valve 1 |
6EE-E1133-10-00 |
from US $16.86 |
||
|
04
|
04
97095-08014-00 Bolt |
97095-08014-00 |
US $1.07 |
||
| replacements | |||||
|
04
|
04
97D95-08014-00 Bolt, Hexagon Deep R |
97D95-08014-00 |
from US $1.07 |
||
|
04
|
04
97D95-08014-00 Bolt, Hexagon Deep R |
97D95-08014-00 |
from US $1.07 |
||
|
05
|
05
90430-08143-00 Gasket |
90430-08143-00 |
from US $1.81 |
||
|
06
|
06
90105-08M81-00 Bolt, Flange |
90105-08M81-00 |
from US $2.94 |
||
|
07
|
07
90105-08M80-00 Bolt, Flange |
90105-08M80-00 |
US $2.83 |
||
|
08
|
08
90105-06M25-00 Bolt, Flange |
90105-06M25-00 |
from US $3.10 |
||
|
09
|
09
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
| replacement | |||||
|
09
|
09
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $2.02 |
||
|
10
|
10
67D-11181-A0-00 Gasket, Cylinder Head 1 |
67D-11181-A0-00 |
from US $24.65 |
||
|
11
|
11
67D-11191-00-00 Cover, Cylinder Head 1 |
67D-11191-00-00 |
from US $21.39 |
||
|
12
|
12
67D-11193-A0-00 Gasket, Head Cover 1 |
67D-11193-A0-00 |
US $15.58 |
||
| replacement | |||||
|
12
|
12
68D-E1193-A0-00 Gasket, Head Cover 1 |
68D-E1193-A0-00 |
from US $15.58 |
||
|
13
|
13
90105-06M14-00 Bolt Flange |
90105-06M14-00 |
from US $2.05 |
||
|
14
|
14
66M-12411-00-00 Thermostat |
66M-12411-00-00 |
US $40.34 |
||
| replacement | |||||
|
14
|
14
66M-12411-01-00 Thermostat |
66M-12411-01-00 |
from US $41.57 |
||
|
15
|
15
67D-12413-00-1S
Cover, Thermostat
|
67D-12413-00-1S |
— | ||
| replacement | |||||
|
15
|
15
6EE-E2413-00-1S Cover, Thermostat |
6EE-E2413-00-1S |
from US $35.14 |
||
|
16
|
16
650-24378-00-00
Pipe, Joint 4
|
650-24378-00-00 |
— | ||
| replacements | |||||
|
16
|
16
652-24461-00-00 Pipe, Joint 4 |
652-24461-00-00 |
from US $3.97 |
||
|
16
|
16
6EE-F4377-00-00 Pipe, Joint 2 |
6EE-F4377-00-00 |
from US $3.33 |
||
|
17
|
17
6G8-11325-00-00 Anode |
6G8-11325-00-00 |
from US $1.32 |
||
|
18
|
18
97880-05025-00 Screw, Pan Head |
97880-05025-00 |
US $1.35 |
||
| replacement | |||||
|
18
|
18
985-80055-25-00 Screw, Pan Head |
985-80055-25-00 |
from US $1.33 |
||
|
19
|
19
67D-12414-A0-00 Gasket, Cover |
67D-12414-A0-00 |
from US $4.53 |
||
|
20
|
20
97095-06020-00 Bolt |
97095-06020-00 |
US $1.66 |
||
| replacement | |||||
|
20
|
20
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
21
|
21
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
21
|
21
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
22
|
22
90445-09M00-00 Hose (L180) |
90445-09M00-00 |
from US $4.11 |
||
| replacement | |||||
|
22
|
22
90445-094K7-00 Hose (L180) |
90445-094K7-00 |
from US $4.11 |
||
|
23
|
23
94702-00248-00 Plug, Spark (Br6Hs) |
94702-00248-00 |
US $7.42 |
||
| replacement | |||||
|
23
|
23
BR6-HS000-00-00 Plug, Spark (Ngk Br6Hs) |
BR6-HS000-00-00 |
US $27.36 |
||
