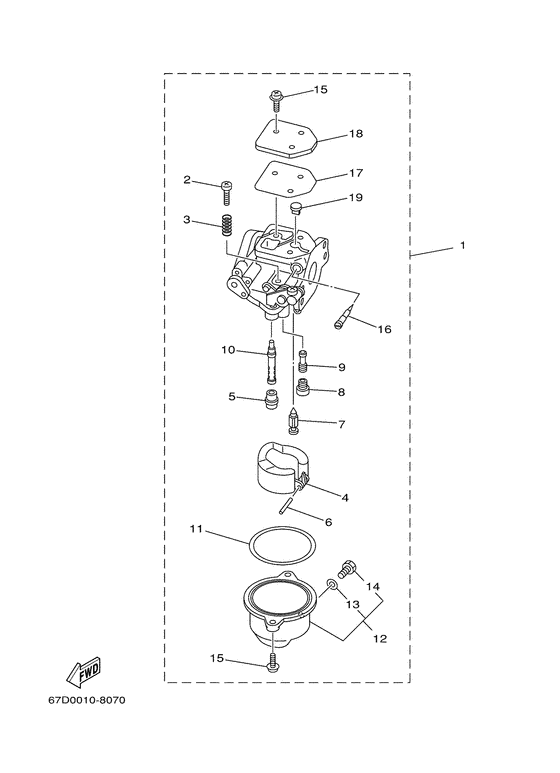

Carburetor Diagram Yamaha F4 MHS/L
- Year
- 2004
- Model
- F4A
- Model code
- 68D
- Year
- 2004
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 4
- Sales region
- Europe (General) (080)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
67D-14301-01-00
Carburetor Assy 1
For std |
67D-14301-01-00 |
— | ||
| replacement | |||||
|
01
|
01
67D-14301-03-00 Carburetor Assy 1For std |
67D-14301-03-00 |
US $337.11 |
||
|
01
|
01
67D-14301-20-00 Carburetor Assy 1For sav |
67D-14301-20-00 |
US $337.11 |
||
| replacement | |||||
|
01
|
01
67D-14301-22-00 Carburetor Assy 1For sav |
67D-14301-22-00 |
US $337.11 |
||
|
02
|
02
6E5-14321-00-00 Screw, Throttle |
6E5-14321-00-00 |
from US $12.04 |
||
|
03
|
03
6J8-14334-00-00 Spring, Throttle |
6J8-14334-00-00 |
from US $3.40 |
||
|
04
|
04
68T-14385-00-00 Float |
68T-14385-00-00 |
from US $37.17 |
||
|
05
|
05
67D-14966-00-00 Rubber Cap |
67D-14966-00-00 |
from US $8.36 |
||
|
06
|
06
67D-14386-00-00 Pin, Float |
67D-14386-00-00 |
from US $6.80 |
||
|
07
|
07
67D-14546-00-00 Valve, Needle |
67D-14546-00-00 |
from US $41.86 |
||
|
08
|
08
67D-1492E-34-00 Jet, Main (#68) |
67D-1492E-34-00 |
from US $13.18 |
||
|
09
|
09
67D-1492F-18-00 Jet, Air Slow (#36) |
67D-1492F-18-00 |
from US $20.83 |
||
|
10
|
10
67D-1492A-00-00 Nozzle, Main |
67D-1492A-00-00 |
from US $36.47 |
||
|
11
|
11
67D-14984-00-00 Gasket, Float Chamber |
67D-14984-00-00 |
from US $6.66 |
||
|
12
|
12
67D-14981-00-00 Body, Float Chamber |
67D-14981-00-00 |
from US $85.80 |
||
|
13
|
13
6J8-14959-00-00 Gasket |
6J8-14959-00-00 |
US $2.41 |
||
| replacement | |||||
|
13
|
13
6J8-14995-00-00 Gasket |
6J8-14995-00-00 |
from US $1.34 |
||
|
14
|
14
66T-14991-00-00 Plug, Drain |
66T-14991-00-00 |
from US $12.47 |
||
|
15
|
15
97980-04112-00 Screw, With Washer |
97980-04112-00 |
from US $2.13 |
||
| replacement | |||||
|
15
|
15
98580-04012-00 Screw, Pan Head (686) |
98580-04012-00 |
from US $1.28 |
||
|
16
|
16
67D-14323-00-00 Screw, Air AdjustingFor 67d-14301-01 |
67D-14323-00-00 |
from US $33.01 |
||
|
16
|
16
68T-14323-20-00
Screw, Air Adjusting
For 67d-14301-20 |
68T-14323-20-00 |
— | ||
|
17
|
17
67D-14536-00-00 Gasket |
67D-14536-00-00 |
from US $8.78 |
||
|
18
|
18
67D-14527-00-00 Plate |
67D-14527-00-00 |
from US $10.48 |
||
|
19
|
19
67D-14126-00-00 Plug |
67D-14126-00-00 |
from US $4.64 |
||
