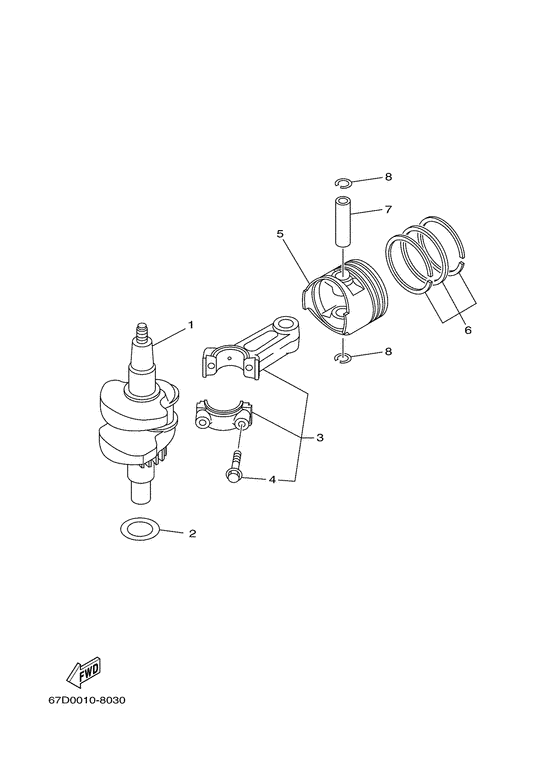

Crankshaft & Piston Diagram Yamaha F4 MHS/L
- Year
- 2004
- Model
- F4A
- Model code
- 68D
- Year
- 2004
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 4
- Sales region
- Europe (General) (080)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
67D-11400-00-00 Crankshaft Assy |
67D-11400-00-00 |
from US $282.55 |
||
|
02
|
02
90201-266P2-00 Washer, Plate |
90201-266P2-00 |
from US $3.69 |
||
|
03
|
03
67D-11650-00-00 Connecting Rod Assy |
67D-11650-00-00 |
from US $104.49 |
||
|
04
|
04
67D-11654-00-00 Bolt, Connecting Rod |
67D-11654-00-00 |
from US $2.83 |
||
|
05
|
05
68D-E1631-00-96 Piston (Std) |
68D-E1631-00-96 |
from US $101.27 |
||
|
05
|
05
68D-E1635-00-00
Piston (0.25Mm O/s)
Ap |
68D-E1635-00-00 |
— | ||
| replacement | |||||
|
05
|
05
67D-11635-00-00
Piston (0.25Mm O/s)
Ap |
67D-11635-00-00 |
— | ||
|
05
|
05
68D-E1636-00-00
Piston (0.50Mm O/s)
Ap |
68D-E1636-00-00 |
— | ||
| replacement | |||||
|
05
|
05
67D-11636-00-00
Piston (0.50Mm O/s)
Ap |
67D-11636-00-00 |
— | ||
|
06
|
06
68D-E1603-00-00 Piston Ring Set (Std) |
68D-E1603-00-00 |
from US $37.86 |
||
|
06
|
06
68D-E1604-00-00
Piston Ring Set (0.25Mm O/s)
Ap |
68D-E1604-00-00 |
— | ||
| replacement | |||||
|
06
|
06
67D-11604-00-00
Piston Ring Set (0.25Mm O/s)
Ap |
67D-11604-00-00 |
— | ||
|
06
|
06
68D-E1605-00-00
Piston Ring Set (0.50Mm O/s)
Ap |
68D-E1605-00-00 |
— | ||
| replacement | |||||
|
06
|
06
67D-11605-00-00
Piston Ring Set (0.50Mm O/s)
Ap |
67D-11605-00-00 |
— | ||
|
07
|
07
68D-E1633-00-00 Pin, Piston |
68D-E1633-00-00 |
from US $10.02 |
||
|
08
|
08
93450-14088-00 Circlip |
93450-14088-00 |
from US $1.66 |
||
