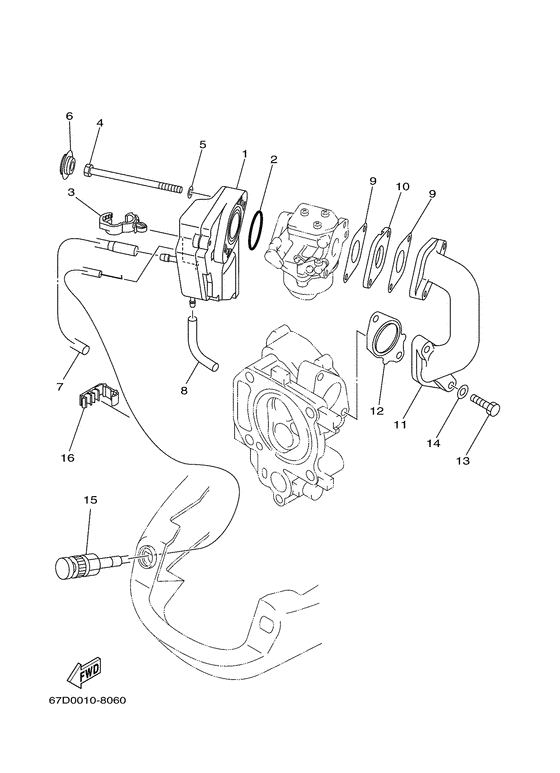

Intake Diagram Yamaha F4 MHS/L
- Year
- 2004
- Model
- F4A
- Model code
- 68D
- Year
- 2004
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 4
- Sales region
- Europe (General) (080)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
68D-E4440-00-00 Silencer Assy, Intake |
68D-E4440-00-00 |
from US $58.12 |
||
|
02
|
02
93210-31MJ5-00 O-Ring |
93210-31MJ5-00 |
from US $1.84 |
||
|
03
|
03
90464-13249-00 Clamp |
90464-13249-00 |
from US $1.34 |
||
|
04
|
04
97095-06090-00 Bolt |
97095-06090-00 |
from US $7.87 |
||
|
05
|
05
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
05
|
05
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
06
|
06
90480-18M74-00 Grommet |
90480-18M74-00 |
from US $2.55 |
||
|
07
|
07
68D-F4314-00-00
Pipe 4
|
68D-F4314-00-00 |
— | ||
| replacement | |||||
|
07
|
07
1VJ-13929-00-00
Pipe, Impulse
|
1VJ-13929-00-00 |
— | ||
|
08
|
08
904-45078-05-00
Hose (L70)
|
904-45078-05-00 |
— | ||
| replacement | |||||
|
08
|
08
90445-07MA3-00 Hose (L200) |
90445-07MA3-00 |
from US $2.32 |
||
|
09
|
09
68D-E3646-A0-00 Gasket, Manifold 2 |
68D-E3646-A0-00 |
US $3.26 |
||
| replacement | |||||
|
09
|
09
67D-13646-A0-00 Gasket, Manifold 2 |
67D-13646-A0-00 |
from US $3.26 |
||
|
10
|
10
68D-E3647-00-00 Gasket, Manifold 3 |
68D-E3647-00-00 |
US $4.71 |
||
|
11
|
11
68D-E3641-00-94 Manifold, Intake 1 |
68D-E3641-00-94 |
US $62.10 |
||
|
12
|
12
68D-E3645-A0-00
Gasket, Manifold 1
|
68D-E3645-A0-00 |
— | ||
| replacement | |||||
|
12
|
12
67D-13645-A0-00
Gasket, Manifold 1
|
67D-13645-A0-00 |
— | ||
|
13
|
13
970-95060-25-00
Bolt
|
970-95060-25-00 |
— | ||
| replacement | |||||
|
13
|
13
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.35 |
||
|
14
|
14
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
14
|
14
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
15
|
15
68D-F6330-00-00 Starter Cable Assy |
68D-F6330-00-00 |
US $28.76 |
||
| replacement | |||||
|
15
|
15
68D-F6330-01-00 Starter Cable Assy |
68D-F6330-01-00 |
US $82.12 |
||
|
16
|
16
90464-05122-00
Clamp
|
90464-05122-00 |
— | ||
