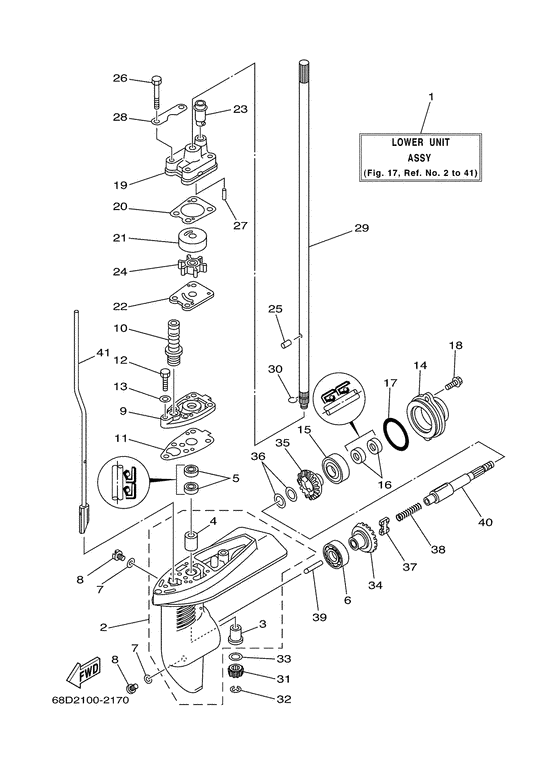

Lower casing & drive 1 Diagram Yamaha F4 MHS/L
- Year
- 2004
- Model
- F4A
- Model code
- 68D
- Year
- 2004
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 4
- Sales region
- Europe (General) (080)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
68D-G5300-01-4D Lower Unit AssyS |
68D-G5300-01-4D |
US $1,082.54 |
||
| replacement | |||||
|
01
|
01
68D-G5300-03-4D Lower Unit Assy (S)S |
68D-G5300-03-4D |
from US $1,082.54 |
||
|
01
|
01
68D-G5300-11-4D Lower Unit AssyL |
68D-G5300-11-4D |
US $1,191.75 |
||
| replacement | |||||
|
01
|
01
68D-G5300-13-4D Lower Unit Ass'y (Longue)L |
68D-G5300-13-4D |
US $1,191.75 |
||
|
02
|
02
68D-G5311-00-4D Casing, Lower |
68D-G5311-00-4D |
US $309.48 |
||
| replacement | |||||
|
02
|
02
6E0-45311-02-8D CASING, LOWER |
6E0-45311-02-8D |
from US $299.50 |
||
|
03
|
03
6E0-45317-09-00 Bushing, Drive Shaft |
6E0-45317-09-00 |
from US $11.26 |
||
|
04
|
04
6E0-45316-09-00 Bushing, Drive Shaft |
6E0-45316-09-00 |
from US $11.92 |
||
|
05
|
05
93101-10M14-00 Oil Seal(6E0) |
93101-10M14-00 |
from US $4.30 |
||
| replacement | |||||
|
05
|
05
93101-10811-00 Oil Seal |
93101-10811-00 |
from US $1.98 |
||
|
06
|
06
93306-004YH-00 Bearing |
93306-004YH-00 |
from US $12.33 |
||
| replacement | |||||
|
06
|
06
93306-00423-00 Bearing (7K2) |
93306-00423-00 |
from US $12.75 |
||
|
07
|
07
90430-08801-00 Gasket |
90430-08801-00 |
US $1.28 |
||
| replacement | |||||
|
07
|
07
90430-08003-00 Gasket |
90430-08003-00 |
from US $1.28 |
||
|
08
|
08
903-40080-02-00 Plug, Straight Screw |
903-40080-02-00 |
from US $3.12 |
||
|
09
|
09
68D-G5321-00-00 Plate |
68D-G5321-00-00 |
US $19.55 |
||
| replacement | |||||
|
09
|
09
6E0-45321-01-CA Plate |
6E0-45321-01-CA |
from US $19.55 |
||
|
10
|
10
6L2-44147-00-00 Boot, Shift Rod |
6L2-44147-00-00 |
from US $3.98 |
||
|
11
|
11
68D-G5315-A0-00 Packing, Lower Casing |
68D-G5315-A0-00 |
US $8.64 |
||
| replacement | |||||
|
11
|
11
6EE-G5315-00-00 Packing, Lower Cas |
6EE-G5315-00-00 |
from US $8.64 |
||
|
12
|
12
970-95060-25-00
Bolt
|
970-95060-25-00 |
— | ||
| replacement | |||||
|
12
|
12
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.35 |
||
|
13
|
13
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
13
|
13
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
14
|
14
68D-G5361-00-4D Cap, Lower Casing |
68D-G5361-00-4D |
US $55.40 |
||
| replacement | |||||
|
14
|
14
6E0-45361-01-8D CAP, LOWER CASING |
6E0-45361-01-8D |
from US $41.92 |
||
|
15
|
15
93306-004YH-00 Bearing |
93306-004YH-00 |
from US $12.33 |
||
| replacement | |||||
|
15
|
15
93306-00423-00 Bearing (7K2) |
93306-00423-00 |
from US $12.75 |
||
|
16
|
16
93101-13M12-00 Oil Seal |
93101-13M12-00 |
from US $4.82 |
||
|
17
|
17
93210-48214-00 O-Ring |
93210-48214-00 |
from US $5.24 |
||
| replacement | |||||
|
17
|
17
93210-48800-00 O-Ring |
93210-48800-00 |
from US $1.28 |
||
|
18
|
18
95895-06016-00 Bolt, Flange |
95895-06016-00 |
US $1.07 |
||
| replacements | |||||
|
18
|
18
958-80060-16-00
Bolt, Flange
|
958-80060-16-00 |
— | ||
|
18
|
18
95D95-06016-00 Bolt, Flange Deep Re |
95D95-06016-00 |
from US $1.07 |
||
|
18
|
18
95814-06016-00 Bolt, Flange |
95814-06016-00 |
from US $1.35 |
||
|
19
|
19
68D-G4311-01-00 Housing, Water Pump |
68D-G4311-01-00 |
from US $32.02 |
||
|
20
|
20
68D-G4315-A0-00 Gasket, Water Pump |
68D-G4315-A0-00 |
US $5.81 |
||
| replacement | |||||
|
20
|
20
6EE-G4315-00-00 Gasket, Water Pump |
6EE-G4315-00-00 |
from US $5.81 |
||
|
21
|
21
68D-G4322-00-00 Insert, Cartridge |
68D-G4322-00-00 |
US $11.62 |
||
| replacement | |||||
|
21
|
21
6E0-44322-02-00 Insert, Cartridge |
6E0-44322-02-00 |
from US $9.26 |
||
|
22
|
22
6E0-44323-00-00 Outer Plate, Cartridge |
6E0-44323-00-00 |
from US $7.37 |
||
|
23
|
23
67D-44366-00-00 Damper, Water Seal 2 |
67D-44366-00-00 |
from US $3.87 |
||
| replacement | |||||
|
23
|
23
6EE-G4366-00-00 Damper, Water Seal 2 |
6EE-G4366-00-00 |
from US $3.26 |
||
|
24
|
24
6E0-44352-00-00 Impeller |
6E0-44352-00-00 |
from US $13.90 |
||
|
25
|
25
93604-09066-00 Pin, Dowel |
93604-09066-00 |
from US $1.34 |
||
|
26
|
26
97095-06045-00 Bolt |
97095-06045-00 |
from US $3.04 |
||
| replacement | |||||
|
26
|
26
970-80060-45-00 Bolt |
970-80060-45-00 |
from US $4.56 |
||
|
27
|
27
93604-18080-00 Pin, Dowel |
93604-18080-00 |
from US $1.70 |
||
|
28
|
28
68D-G4328-00-00 Plate |
68D-G4328-00-00 |
US $3.97 |
||
| replacement | |||||
|
28
|
28
6E0-44328-00-00 Plate |
6E0-44328-00-00 |
from US $3.24 |
||
|
29
|
29
68D-G5511-00-00 Shaft, DriveS |
68D-G5511-00-00 |
US $201.71 |
||
| replacement | |||||
|
29
|
29
6E0-45511-01-00 Shaft, Drive (S)S |
6E0-45511-01-00 |
from US $201.71 |
||
|
29
|
29
68D-G5511-10-00 Shaft, DriveL |
68D-G5511-10-00 |
US $201.71 |
||
| replacement | |||||
|
29
|
29
6E0-45511-11-00 Shaft, Drive (L)L |
6E0-45511-11-00 |
from US $201.71 |
||
|
30
|
30
90467-08M01-00 Clip |
90467-08M01-00 |
from US $2.41 |
||
|
31
|
31
6E0-45551-00-00 Pinion |
6E0-45551-00-00 |
from US $26.12 |
||
|
32
|
32
99001-06600-00 Circlip |
99001-06600-00 |
from US $1.56 |
||
|
33
|
33
90201-11M49-00 Washer, Plate |
90201-11M49-00 |
from US $2.69 |
||
|
34
|
34
67D-45560-00-00 Gear 1 (27T) |
67D-45560-00-00 |
from US $98.78 |
||
|
35
|
35
67D-45570-00-00 Gear 2 (27T) |
67D-45570-00-00 |
from US $98.78 |
||
|
36
|
36
67D-45576-00-00 Washer, Thrust 2 |
67D-45576-00-00 |
from US $3.54 |
||
| replacement | |||||
|
36
|
36
6EE-G5576-00-00 Washer, Thrust 2 |
6EE-G5576-00-00 |
from US $2.69 |
||
|
37
|
37
67D-45631-01-00 Clutch, Dog |
67D-45631-01-00 |
from US $31.31 |
||
|
38
|
38
90501-10064-00 Spring, Compression |
90501-10064-00 |
from US $5.81 |
||
|
39
|
39
67D-45635-00-00 Plunger, Shift |
67D-45635-00-00 |
from US $10.48 |
||
| replacement | |||||
|
39
|
39
6EE-G5635-00-00 Plunger, Shift |
6EE-G5635-00-00 |
from US $7.93 |
||
|
40
|
40
68D-G5611-10-00 Shaft, Propeller |
68D-G5611-10-00 |
US $277.70 |
||
| replacement | |||||
|
40
|
40
6EE-G5611-00-00 Shaft, Propeller |
6EE-G5611-00-00 |
from US $193.39 |
||
|
41
|
41
68D-G4150-00-00 Shift Cam AssyS |
68D-G4150-00-00 |
US $50.01 |
||
| replacement | |||||
|
41
|
41
6EE-G4150-00-00 Shift Cam AssyS |
6EE-G4150-00-00 |
from US $50.01 |
||
|
41
|
41
68D-G4150-10-00 Shift Cam Ass'yL |
68D-G4150-10-00 |
US $50.01 |
||
| replacement | |||||
|
41
|
41
6EE-G4150-10-00 Shift Cam AssyL |
6EE-G4150-10-00 |
from US $50.01 |
||
