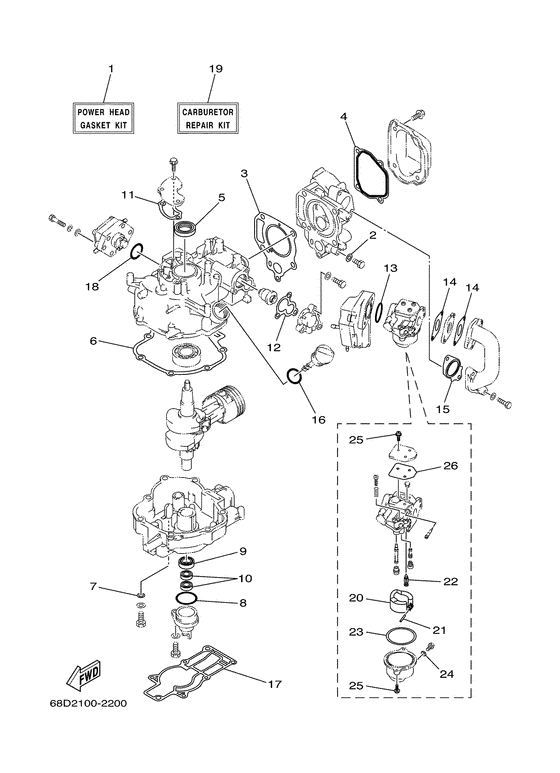

Repair kit 1 Diagram Yamaha F4 MHS/L
- Year
- 2004
- Model
- F4A
- Model code
- 68D
- Year
- 2004
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 4
- Sales region
- Europe (General) (080)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
68D-WE001-00-00 Power Head Gasket Kit |
68D-WE001-00-00 |
US $167.99 |
||
| replacement | |||||
|
01
|
01
68D-WE001-01-00 Power Head Gasket Kit |
68D-WE001-01-00 |
US $245.12 |
||
|
02
|
02
90430-08800-00 Gasket |
90430-08800-00 |
US $1.70 |
||
| replacement | |||||
|
02
|
02
90430-08143-00 Gasket |
90430-08143-00 |
from US $1.70 |
||
|
03
|
03
67D-11181-A0-00 Gasket, Cylinder Head 1 |
67D-11181-A0-00 |
from US $24.65 |
||
|
04
|
04
68D-E1193-A0-00 Gasket, Head Cover 1 |
68D-E1193-A0-00 |
from US $15.58 |
||
|
05
|
05
93102-25090-00 Oil Seal |
93102-25090-00 |
from US $12.75 |
||
|
06
|
06
68D-11351-A0-00 Gasket, Cylinder |
68D-11351-A0-00 |
from US $20.12 |
||
|
07
|
07
90201-08818-00 Washer, Plate |
90201-08818-00 |
from US $2.98 |
||
|
08
|
08
93210-35537-00 O-Ring |
93210-35537-00 |
from US $6.94 |
||
| replacement | |||||
|
08
|
08
93210-35803-00 O-Ring |
93210-35803-00 |
from US $1.70 |
||
|
09
|
09
931-02201-08-00 Oil Seal (20X30X7-371) |
931-02201-08-00 |
from US $11.18 |
||
| replacement | |||||
|
09
|
09
93102-20814-00 Oil Seal |
93102-20814-00 |
from US $3.40 |
||
|
10
|
10
93102-10004-00 Oil Seal |
93102-10004-00 |
from US $11.48 |
||
| replacement | |||||
|
10
|
10
93102-10800-00 Oil Seal |
93102-10800-00 |
from US $4.39 |
||
|
11
|
11
68D-E1169-A0-00
Gasket, Breather Cover
|
68D-E1169-A0-00 |
— | ||
|
12
|
12
68D-E2414-A0-00 Gasket, Cover |
68D-E2414-A0-00 |
US $4.53 |
||
| replacement | |||||
|
12
|
12
67D-12414-A0-00 Gasket, Cover |
67D-12414-A0-00 |
from US $4.53 |
||
|
13
|
13
93210-31MJ5-00 O-Ring |
93210-31MJ5-00 |
from US $1.84 |
||
|
14
|
14
68D-E3646-A0-00 Gasket, Manifold 2 |
68D-E3646-A0-00 |
US $3.26 |
||
| replacement | |||||
|
14
|
14
67D-13646-A0-00 Gasket, Manifold 2 |
67D-13646-A0-00 |
from US $3.26 |
||
|
15
|
15
68D-E3645-A0-00
Gasket, Manifold 1
|
68D-E3645-A0-00 |
— | ||
| replacement | |||||
|
15
|
15
67D-13645-A0-00
Gasket, Manifold 1
|
67D-13645-A0-00 |
— | ||
|
16
|
16
932-1024M-79-00
O-Ring
|
932-1024M-79-00 |
— | ||
| replacements | |||||
|
16
|
16
932-10242-35-00 O-Ring |
932-10242-35-00 |
from US $2.98 |
||
|
16
|
16
93210-24800-00 O-Ring |
93210-24800-00 |
from US $1.28 |
||
|
17
|
17
68D-G5113-A0-00 Gasket, Upper Casing |
68D-G5113-A0-00 |
US $28.90 |
||
| replacement | |||||
|
17
|
17
67D-45113-A0-00 Gasket, Upper Casing |
67D-45113-A0-00 |
from US $17.93 |
||
|
18
|
18
93210-27ME3-00 O-Ring |
93210-27ME3-00 |
from US $1.84 |
||
| replacement | |||||
|
18
|
18
93210-27806-00 O-Ring |
93210-27806-00 |
from US $1.28 |
||
|
19
|
19
67D-W0093-01-00 Carburetor Repair Kit |
67D-W0093-01-00 |
from US $105 |
||
|
20
|
20
68T-14385-00-00 Float |
68T-14385-00-00 |
from US $37.17 |
||
|
21
|
21
67D-14386-00-00 Pin, Float |
67D-14386-00-00 |
from US $6.80 |
||
|
22
|
22
67D-14546-00-00 Valve, Needle |
67D-14546-00-00 |
from US $41.86 |
||
|
23
|
23
67D-14984-00-00 Gasket, Float Chamber |
67D-14984-00-00 |
from US $6.66 |
||
|
24
|
24
6J8-14959-00-00 Gasket |
6J8-14959-00-00 |
US $2.41 |
||
| replacement | |||||
|
24
|
24
6J8-14995-00-00 Gasket |
6J8-14995-00-00 |
from US $1.34 |
||
|
25
|
25
97980-04112-00 Screw, With Washer |
97980-04112-00 |
from US $2.13 |
||
| replacement | |||||
|
25
|
25
98580-04012-00 Screw, Pan Head (686) |
98580-04012-00 |
from US $1.28 |
||
|
26
|
26
67D-14536-00-00 Gasket |
67D-14536-00-00 |
from US $8.78 |
||
