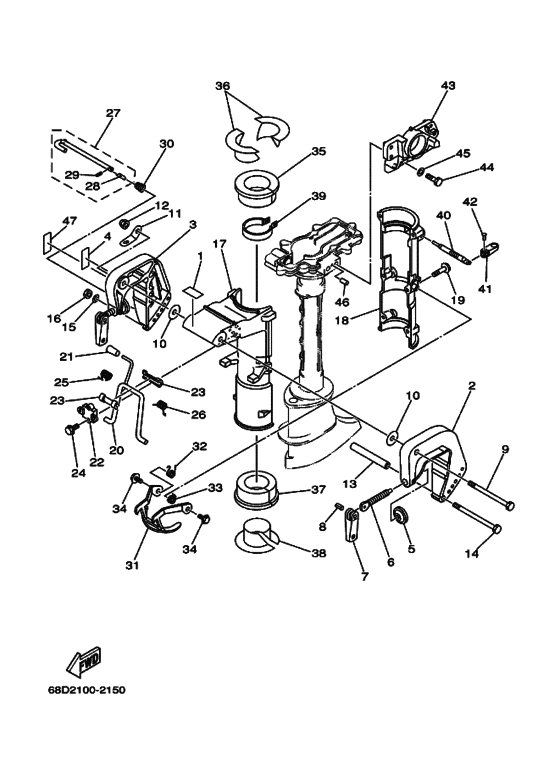

Bracket Diagram Yamaha F4 MHS/L
- Year
- 2004
- Model
- F4A
- Model code
- 68D
- Year
- 2004
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 4
- Sales region
- Europe (110)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
68D-F4591-00-00 Emblem, Fuel Cock |
68D-F4591-00-00 |
US $7.04 |
||
| replacement | |||||
|
1
|
1
67D-24591-01-00 Emblem, Fuel Cock |
67D-24591-01-00 |
US $7.78 |
||
|
2
|
2
6L8-G3111-01-4D Bracket, Clamp 1 |
6L8-G3111-01-4D |
US $129.04 |
||
| replacement | |||||
|
2
|
2
6E0-43111-02-8D BRACKET, CLAMP 1 |
6E0-43111-02-8D |
from US $104.38 |
||
|
3
|
3
6L8-G3112-00-4D Bracket, Clamp 2 |
6L8-G3112-00-4D |
US $129.04 |
||
| replacement | |||||
|
3
|
3
6E0-43112-01-8D BRACKET, CLAMP 2 |
6E0-43112-01-8D |
from US $104.38 |
||
|
4
|
4
6M0-G3318-00-00 Cover |
6M0-G3318-00-00 |
US $23.52 |
||
|
5
|
5
620-43114-00-00
Pad, Transom Clamp
|
620-43114-00-00 |
— | ||
| replacement | |||||
|
5
|
5
648-43114-01-00 Pad, Transom Clamp |
648-43114-01-00 |
from US $5.30 |
||
|
6
|
6
6E0-43116-01-00 Screw, Transom Clamp |
6E0-43116-01-00 |
from US $15.16 |
||
|
7
|
7
6L8-G3118-01-00 Handle Transom Clamp |
6L8-G3118-01-00 |
US $11.19 |
||
| replacement | |||||
|
7
|
7
6EE-G3118-00-00 Handle, Transom Clamp |
6EE-G3118-00-00 |
from US $6.89 |
||
|
8
|
8
90243-04M01-00 Pin |
90243-04M01-00 |
from US $2.41 |
||
|
9
|
9
90101-08M07-00 Bolt |
90101-08M07-00 |
from US $11.76 |
||
|
10
|
10
90202-08M58-00 Washer, Plate |
90202-08M58-00 |
from US $4.82 |
||
|
11
|
11
68D-G3113-00-00 Plate, Clamp Bracket |
68D-G3113-00-00 |
US $6.94 |
||
| replacement | |||||
|
11
|
11
6A1-43113-01-00 Plate, Clamp Bracket |
6A1-43113-01-00 |
from US $6.94 |
||
|
12
|
12
901-85080-57-00
Nut, Self-Locking
|
901-85080-57-00 |
— | ||
| replacement | |||||
|
12
|
12
95780-08300-00 Nut, Nylon (6J8) |
95780-08300-00 |
from US $6.30 |
||
|
13
|
13
903-8706M-11-00
Collar
|
903-8706M-11-00 |
— | ||
| replacement | |||||
|
13
|
13
6EE-G3122-00-00 Collar Clamp Brack |
6EE-G3122-00-00 |
US $23.80 |
||
|
14
|
14
90101-06335-00 Bolt |
90101-06335-00 |
from US $8.22 |
||
|
15
|
15
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
16
|
16
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
17
|
17
68D-G3311-00-4D Bracket, Swivel 1 |
68D-G3311-00-4D |
US $190.66 |
||
| replacement | |||||
|
17
|
17
6EE-G3311-00-8D BRACKET, SWIVEL 1 |
6EE-G3311-00-8D |
from US $187.52 |
||
|
18
|
18
68D-G3312-00-4D Bracket, Swivel 2 |
68D-G3312-00-4D |
US $77.78 |
||
| replacements | |||||
|
18
|
18
6EE-G3312-00-4D Bracket, Swivel 2 |
6EE-G3312-00-4D |
US $77.78 |
||
|
18
|
18
6EE-G3312-00-8D BRACKET, SWIVEL 2 |
6EE-G3312-00-8D |
from US $77.78 |
||
|
19
|
19
958-95060-35-00
Bolt, Flange
|
958-95060-35-00 |
— | ||
| replacement | |||||
|
19
|
19
95880-06035-00 Bolt, Flange |
95880-06035-00 |
from US $1.34 |
||
|
20
|
20
6E0-43181-00-00 Lever, Tilt Stop 1 |
6E0-43181-00-00 |
from US $30.89 |
||
|
21
|
21
6E0-43632-00-00 Knob, Tilt |
6E0-43632-00-00 |
from US $4.68 |
||
|
22
|
22
6E0-43313-00-4D Bracket, Swivel 3 |
6E0-43313-00-4D |
US $11.33 |
||
| replacement | |||||
|
22
|
22
6E0-43313-00-94 Bracket, Swivel 3 |
6E0-43313-00-94 |
from US $11.33 |
||
|
23
|
23
620-43189-00-00 Bushing |
620-43189-00-00 |
from US $6.52 |
||
|
24
|
24
95895-06020-00 Bolt, Flange |
95895-06020-00 |
US $1.42 |
||
| replacements | |||||
|
24
|
24
95880-06020-00 Bolt, Flange(Jk3) |
95880-06020-00 |
from US $1.56 |
||
|
24
|
24
95D95-06020-00 Bolt, Flange Deep Re |
95D95-06020-00 |
from US $1.07 |
||
|
24
|
24
95D95-06020-00 Bolt, Flange Deep Re |
95D95-06020-00 |
from US $1.07 |
||
|
25
|
25
90508-16020-00 Spring, Torsion |
90508-16020-00 |
from US $6.80 |
||
|
26
|
26
90508-16021-00 Spring, Torsion |
90508-16021-00 |
from US $4.11 |
||
|
27
|
27
68D-G3160-00-00 Tilt Rod Assy |
68D-G3160-00-00 |
US $30.89 |
||
| replacement | |||||
|
27
|
27
6E0-43160-01-00 Tilt Rod Assy |
6E0-43160-01-00 |
from US $14.88 |
||
|
28
|
28
6N0-G3165-00-00 Stopper, Plate Tilt Lock |
6N0-G3165-00-00 |
US $5.38 |
||
| replacement | |||||
|
28
|
28
6EE-G3165-00-00 Plate, Tilt Lock |
6EE-G3165-00-00 |
from US $5.38 |
||
|
29
|
29
91690-30008-00 Pin, Spring |
91690-30008-00 |
from US $1.56 |
||
|
30
|
30
90502-08M05-00 Spring, Conical |
90502-08M05-00 |
from US $1.84 |
||
|
31
|
31
6E0-43614-00-5B Plate, Tilt Lock |
6E0-43614-00-5B |
US $37.17 |
||
| replacement | |||||
|
31
|
31
6E0-43614-00-CA Plate, Tilt Lock |
6E0-43614-00-CA |
from US $37.17 |
||
|
32
|
32
90508-14M10-00 Spring, Torsion |
90508-14M10-00 |
from US $4.11 |
||
|
33
|
33
905-0814M-11-00 Spring, Torsion |
905-0814M-11-00 |
from US $3.12 |
||
|
34
|
34
95895-06010-00 Bolt, Flange |
95895-06010-00 |
US $2.13 |
||
| replacement | |||||
|
34
|
34
95880-06010-00 Bolt, Flange |
95880-06010-00 |
from US $1.56 |
||
|
35
|
35
68D-G2537-00-00 Bushing, Pivot Shaft |
68D-G2537-00-00 |
US $22.39 |
||
| replacement | |||||
|
35
|
35
6EE-G2537-00-00 Bushing, Pivot Sha |
6EE-G2537-00-00 |
from US $22.39 |
||
|
36
|
36
68D-G2539-00-00 Bushing, Pivot Shaft |
68D-G2539-00-00 |
US $7.23 |
||
| replacement | |||||
|
36
|
36
6EE-G2539-00-00 Bushing, Pivot Shaft |
6EE-G2539-00-00 |
from US $3.98 |
||
|
37
|
37
68D-G2538-00-00 Bushing, Pivot Shaft |
68D-G2538-00-00 |
from US $28.34 |
||
|
38
|
38
68D-G2549-00-00 Bushing, Pivot Shaft |
68D-G2549-00-00 |
from US $15.44 |
||
|
39
|
39
6E0-42528-03-00 Plate, Friction |
6E0-42528-03-00 |
US $10.91 |
||
| replacement | |||||
|
39
|
39
6E0-42528-04-00 Plate, Friction |
6E0-42528-04-00 |
from US $10.91 |
||
|
40
|
40
6L5-42529-01-00 Screw, Friction Piece |
6L5-42529-01-00 |
from US $10.20 |
||
|
41
|
41
68D-G2561-01-00 Knob, Steering Lock |
68D-G2561-01-00 |
US $5.67 |
||
| replacement | |||||
|
41
|
41
6EE-G2561-00-00 Knob, Steering Lock |
6EE-G2561-00-00 |
from US $5.67 |
||
|
42
|
42
90266-04M05-00 Rivet |
90266-04M05-00 |
from US $1.84 |
||
|
43
|
43
68D-G2511-00-4D Bracket, Steering |
68D-G2511-00-4D |
from US $109.56 |
||
|
44
|
44
97075-08030-00 Bolt |
97075-08030-00 |
US $2.69 |
||
| replacement | |||||
|
44
|
44
97080-08030-00 Bolt |
97080-08030-00 |
from US $2.69 |
||
|
45
|
45
929-95086-00-00
Washer, Plate
|
929-95086-00-00 |
— | ||
| replacement | |||||
|
45
|
45
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
46
|
46
93604-12M07-00 Pin, Dowel |
93604-12M07-00 |
US $1.84 |
||
| replacement | |||||
|
46
|
46
93604-10M03-00 Pin, Dowel |
93604-10M03-00 |
from US $1.66 |
||
|
47
|
47
63V-82377-50-00
Label (Spark, Ignition)
FOR CAN |
63V-82377-50-00 |
— | ||
