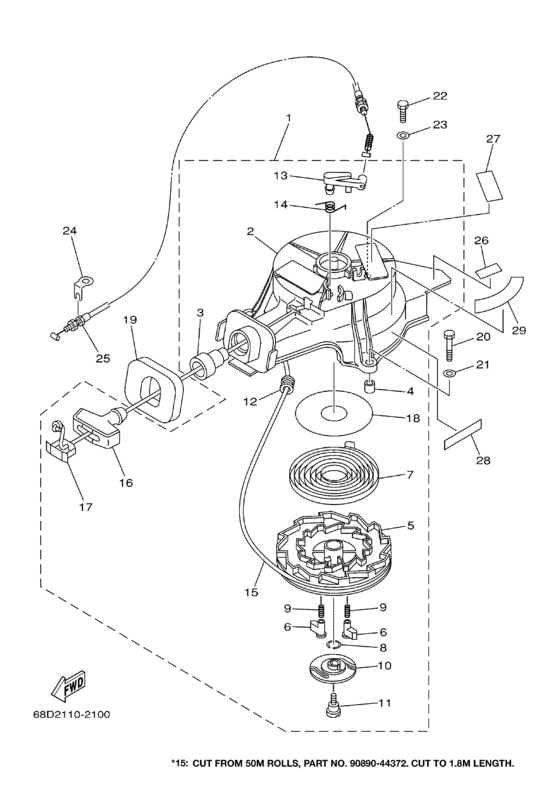

Starter Diagram Yamaha F4 MS/LH
- Year
- 2003
- Model
- F4
- Year
- 2003
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 4
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
67D-15710-00-00 Starter Assy |
67D-15710-00-00 |
US $258.36 |
||
| replacement | |||||
|
1
|
1
67D-15710-02-00 Starter Assy |
67D-15710-02-00 |
from US $123.62 |
||
|
2
|
2
67D-15711-00-00 Case, Starter |
67D-15711-00-00 |
US $77.45 |
||
|
3
|
3
63V-15795-01-00 Guide, Rope |
63V-15795-01-00 |
from US $9.07 |
||
|
4
|
4
67D-15764-00-00 Collar 1 |
67D-15764-00-00 |
from US $1.70 |
||
|
5
|
5
67D-15714-00-00 Drum, Sheave |
67D-15714-00-00 |
from US $36.05 |
||
|
6
|
6
67D-15741-00-00 Pawl, Drive |
67D-15741-00-00 |
from US $9.35 |
||
|
7
|
7
67D-15713-00-00 Spring, Starter |
67D-15713-00-00 |
from US $22.10 |
||
|
8
|
8
67D-15705-00-00 Spring, Drive Pawl |
67D-15705-00-00 |
from US $2.41 |
||
|
9
|
9
67D-15767-00-00 Spring |
67D-15767-00-00 |
from US $1.98 |
||
|
10
|
10
67D-15735-00-00 Guide, Cam |
67D-15735-00-00 |
from US $8.64 |
||
|
11
|
11
67D-15793-00-00 Screw |
67D-15793-00-00 |
from US $4.39 |
||
|
12
|
12
63V-15764-00-00 Collar 1 |
63V-15764-00-00 |
from US $9.07 |
||
|
13
|
13
67D-15794-00-00 Stopper |
67D-15794-00-00 |
from US $22.88 |
||
|
14
|
14
67D-15734-00-00 Spring, Return |
67D-15734-00-00 |
from US $4.53 |
||
|
15
|
15
908-90443-72-00 Starter Rope |
908-90443-72-00 |
US $87.49 |
||
| replacement | |||||
|
15
|
15
907-90481-92-00 Rope, Starter |
907-90481-92-00 |
from US $87.49 |
||
|
16
|
16
6G1-15755-00-00 Handle, Starter |
6G1-15755-00-00 |
from US $8.60 |
||
|
17
|
17
6G1-15779-00-00 Cover |
6G1-15779-00-00 |
from US $3.68 |
||
|
18
|
18
67D-15739-00-00 Washer, Thrust |
67D-15739-00-00 |
from US $15.44 |
||
|
19
|
19
67D-15762-00-00 Seal, Rubber 2 |
67D-15762-00-00 |
US $11.07 |
||
|
20
|
20
97095-06035-00 Bolt(6R8) |
97095-06035-00 |
from US $2.69 |
||
| replacement | |||||
|
20
|
20
97080-06035-00 Bolt(J52) |
97080-06035-00 |
from US $1.66 |
||
|
21
|
21
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
21
|
21
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
22
|
22
97095-06020-00 Bolt |
97095-06020-00 |
US $1.56 |
||
| replacement | |||||
|
22
|
22
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
23
|
23
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
23
|
23
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
24
|
24
67D-15772-00-00 Stay 2 |
67D-15772-00-00 |
US $4.34 |
||
|
25
|
25
67D-15770-00-00 Cable Comp., Starter Stop |
67D-15770-00-00 |
from US $26.35 |
||
|
26
|
26
67D-42791-10-00 Mark 1 |
67D-42791-10-00 |
from US $1.17 |
||
|
27
|
27
6A1-83625-41-00 Mark 5 |
6A1-83625-41-00 |
from US $7.25 |
||
|
28
|
28
68D-13437-40-00
Mark, Caution
|
68D-13437-40-00 |
— | ||
|
29
|
29
67D-14427-40-00
Label, Instruction
|
67D-14427-40-00 |
— | ||
