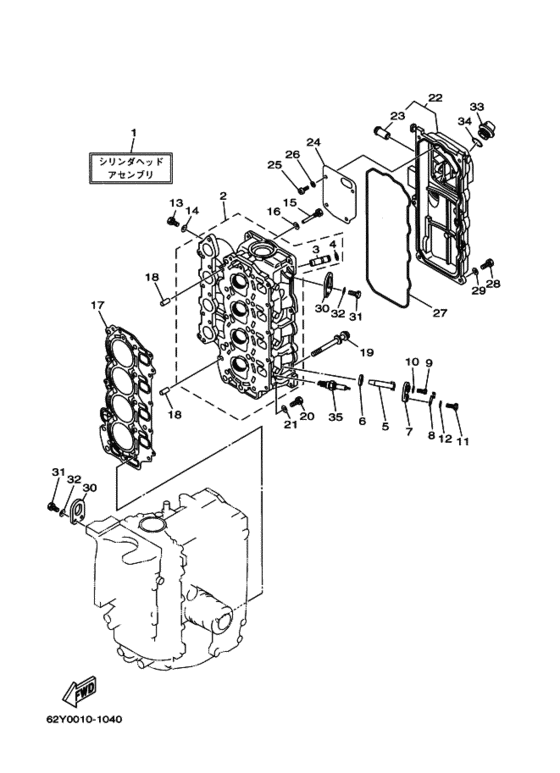

ｼﾘﾝﾀﾞ. ｸﾗﾝｸｹ-ｽ 2 Diagram Yamaha F50 E(D/T/H)L/X
- Year
- 2001
- Model
- F50A
- Model code
- 62Y
- Year
- 2001
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 50
- Sales region
- Japan (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
64J-W009A-00-4D Cylinder Head Completeシリンダヘツドアセンブリ; 参照; ＊１ |
64J-W009A-00-4D |
US $2,428.80 |
||
| replacements | |||||
|
1
|
1
64J-W009A-04-9S Cylinder Head Assyシリンダヘツドアセンブリ; 参照; ＊１ |
64J-W009A-04-9S |
US $2,428.80 |
||
|
1
|
1
64J-W009A-05-9S Cylinder Head Completeシリンダヘツドアセンブリ; 参照; ＊１ |
64J-W009A-05-9S |
from US $2,428.80 |
||
|
2
|
2
62Y-11111-20-94 Head, Cylinder 1 |
62Y-11111-20-94 |
US $1,071.08 |
||
| replacements | |||||
|
2
|
2
62Y-11111-20-1S Head, Cylinder 1 |
62Y-11111-20-1S |
US $1,071.08 |
||
|
2
|
2
99999-03903-00 Head,Cylinder 1 |
99999-03903-00 |
US $2,293.30 |
||
|
3
|
3
62Y-11133-30-00 Guide, Intake Valve．ガイド，インテ−クバルブ; |
62Y-11133-30-00 |
US $12.61 |
||
| replacement | |||||
|
3
|
3
62Y-11133-31-00 Guide, Valve 1．ガイド，インテ−クバルブ; |
62Y-11133-31-00 |
from US $13.31 |
||
|
4
|
4
93450-09M01-00 Circlip．サ−クリツプ; |
93450-09M01-00 |
from US $1.49 |
||
|
5
|
5
62Y-11325-00-00 Anode |
62Y-11325-00-00 |
from US $8.60 |
||
|
6
|
6
66M-11328-00-00 Grommet, Anode |
66M-11328-00-00 |
US $1.94 |
||
|
7
|
7
66M-11327-00-94 Cover, Anode |
66M-11327-00-94 |
from US $5.24 |
||
|
8
|
8
66M-12535-00-00 Plate |
66M-12535-00-00 |
from US $3.54 |
||
|
9
|
9
97095-05012-00 Boltボルト; |
97095-05012-00 |
from US $1.55 |
||
|
10
|
10
929-95056-00-00
Washer, Plate
|
929-95056-00-00 |
— | ||
| replacement | |||||
|
10
|
10
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
11
|
11
97013-06020-00 Boltボルト; |
97013-06020-00 |
from US $1.42 |
||
|
12
|
12
929-03066-00-00
Washer, Plate
ワツシヤ，プレ−ト; |
929-03066-00-00 |
— | ||
| replacement | |||||
|
12
|
12
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレ−ト; |
929-90066-00-00 |
from US $1.39 |
||
|
13
|
13
970-95060-10-00
Bolt
ボルト; |
970-95060-10-00 |
— | ||
| replacement | |||||
|
13
|
13
97085-06010-00 Boltボルト; |
97085-06010-00 |
from US $1.28 |
||
|
14
|
14
904-30060-14-00 Gasket (Copper washer) |
904-30060-14-00 |
from US $1.39 |
||
|
15
|
15
90109-06M65-00 Boltボルト; |
90109-06M65-00 |
from US $22.67 |
||
|
16
|
16
904-30060-14-00 Gasket (Copper washer) |
904-30060-14-00 |
from US $1.39 |
||
|
17
|
17
62Y-11181-00-00 Gasket, Cylinder Head 1ガスケツト，シリンダヘツド １; |
62Y-11181-00-00 |
from US $62.18 |
||
|
18
|
18
99530-08012-00 Pin, Dowel |
99530-08012-00 |
from US $1.18 |
||
|
19
|
19
90119-09M00-00 Bolt, With Washerボルト，ウイズワツシヤ; |
90119-09M00-00 |
from US $8.19 |
||
|
20
|
20
97013-06025-00 Boltボルト; |
97013-06025-00 |
from US $1.48 |
||
|
21
|
21
929-03066-00-00
Washer, Plate
ワツシヤ，プレ−ト; |
929-03066-00-00 |
— | ||
| replacement | |||||
|
21
|
21
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレ−ト; |
929-90066-00-00 |
from US $1.39 |
||
|
22
|
22
62Y-11191-01-9M Cover, Cylinder Head 1 |
62Y-11191-01-9M |
US $183.75 |
||
| replacements | |||||
|
22
|
22
62Y-11191-01-9S Cover, Cylinder Head 1 |
62Y-11191-01-9S |
US $183.75 |
||
|
22
|
22
62Y-11191-02-9S Cover, Cylinder Head |
62Y-11191-02-9S |
from US $152.98 |
||
|
23
|
23
62Y-14485-00-00 Pipe, Joint．パイプ，ジヨイント; |
62Y-14485-00-00 |
from US $14.03 |
||
|
24
|
24
62Y-11168-00-00 Cover, Breatherカバ−，ブリ−ザ; |
62Y-11168-00-00 |
from US $5.38 |
||
|
25
|
25
98507-04010-00 Screw, Pan Head |
98507-04010-00 |
from US $1.39 |
||
|
26
|
26
92907-04600-00 Washer(Jf2) |
92907-04600-00 |
from US $1.07 |
||
|
27
|
27
62Y-11356-00-00 Seal, Cylinder 2シ−ル，シリンダ ２; |
62Y-11356-00-00 |
from US $15.50 |
||
|
28
|
28
97013-06020-00 Boltボルト; |
97013-06020-00 |
from US $1.42 |
||
|
29
|
29
929-03066-00-00
Washer, Plate
ワツシヤ，プレ−ト; |
929-03066-00-00 |
— | ||
| replacement | |||||
|
29
|
29
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレ−ト; |
929-90066-00-00 |
from US $1.39 |
||
|
30
|
30
62Y-11119-00-00 Hanger, Engineハンガ，エンジン; |
62Y-11119-00-00 |
from US $10.34 |
||
|
31
|
31
97095-06020-00 Boltボルト; |
97095-06020-00 |
US $1.66 |
||
| replacement | |||||
|
31
|
31
970-80060-20-00 Boltボルト; |
970-80060-20-00 |
from US $1.66 |
||
|
32
|
32
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
32
|
32
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
33
|
33
6G8-15363-00-00 Plug, Oilプラグ，オイル; |
6G8-15363-00-00 |
from US $8.05 |
||
|
34
|
34
932-1024M-79-00
O-Ring
Ｏ−リング; |
932-1024M-79-00 |
— | ||
| replacements | |||||
|
34
|
34
932-10242-35-00 O-RingＯ−リング; |
932-10242-35-00 |
from US $3.04 |
||
|
34
|
34
93210-24800-00 O-RingＯ−リング; |
93210-24800-00 |
from US $2.29 |
||
|
35
|
35
94703-00375-00 Plug, Spark (Ngk Dpr6Ea-9)プラグ，スパ−ク ; ＮＧＫ ＤＰＲ６ＥＡ−９ |
94703-00375-00 |
US $7.49 |
||
