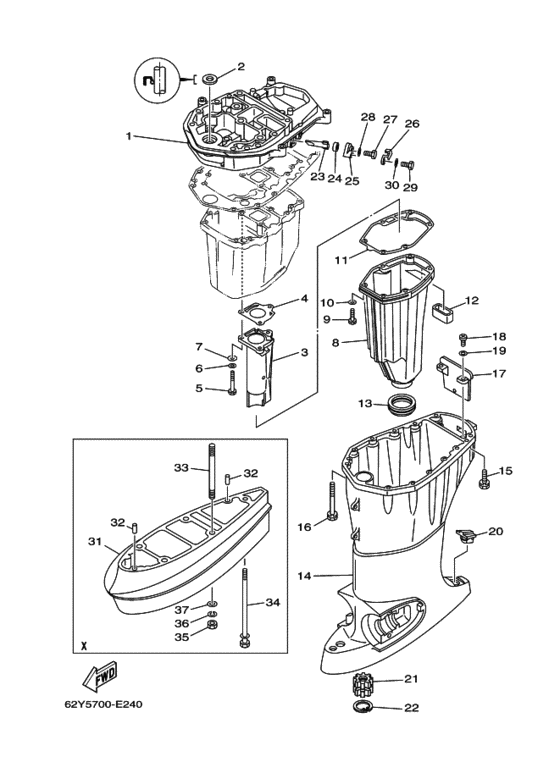

ｱﾂﾊﾟｰｹｰｼﾝｸﾞ Diagram Yamaha F50 E(D/T/H)L/X
- Year
- 2006
- Model
- F50A
- Model code
- 62Y
- Year
- 2006
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 50
- Sales region
- Japan (040)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
69W-41137-02-94 Guide, Exhaustガイド，エキゾースト; |
69W-41137-02-94 |
from US $333.12 |
||
|
2
|
2
93103-18011-00 Oil Sealオイルシール; |
93103-18011-00 |
from US $24.14 |
||
|
3
|
3
67C-41131-00-5B Manifold, Ext. 1マニホールド，エキゾースト １; |
67C-41131-00-5B |
US $186.52 |
||
| replacement | |||||
|
3
|
3
67C-41131-00-CA Manifold, Ext. 1マニホールド，エキゾースト １; |
67C-41131-00-CA |
from US $204.51 |
||
|
4
|
4
67C-41133-00-00 Gasket, Exhaust Manifold 1ガスケツト，エキゾーストマニホールド １; |
67C-41133-00-00 |
from US $8.05 |
||
|
5
|
5
97075-06050-00 Bolt |
97075-06050-00 |
US $3.26 |
||
| replacement | |||||
|
5
|
5
970-80060-50-00 Bolt |
970-80060-50-00 |
from US $3.26 |
||
|
6
|
6
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
6
|
6
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
7
|
7
90201-06015-00 Washer, Plateワツシヤ，プレート; |
90201-06015-00 |
from US $1.94 |
||
|
8
|
8
62Y-14711-00-5B Muffler 1マフラ １; |
62Y-14711-00-5B |
US $131.80 |
||
| replacement | |||||
|
8
|
8
62Y-14711-00-CA Muffler 1マフラ １; |
62Y-14711-00-CA |
US $131.80 |
||
|
9
|
9
97075-06025-00 Boltボルト; |
97075-06025-00 |
US $1.35 |
||
| replacement | |||||
|
9
|
9
90101-06M27-00 Boltボルト; |
90101-06M27-00 |
from US $1.52 |
||
|
10
|
10
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
10
|
10
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
11
|
11
62Y-41134-01-00 Gasket, Exhaust Manifoldガスケツト，エキゾーストマニホールド; |
62Y-41134-01-00 |
US $12.91 |
||
| replacement | |||||
|
11
|
11
6BG-41134-00-00 Gasket, Exhaust Manifoldガスケツト，エキゾーストマニホールド; |
6BG-41134-00-00 |
from US $13.74 |
||
|
12
|
12
62Y-45127-00-00 Sealシール; |
62Y-45127-00-00 |
US $5.13 |
||
|
13
|
13
663-45123-00-00 Gasket, Mufflerガスケツト，マフラ; |
663-45123-00-00 |
from US $20.94 |
||
|
14
|
14
62Y-45111-21-4D Casing, Upperケーシング，アツパー; |
62Y-45111-21-4D |
US $644.16 |
||
| replacement | |||||
|
14
|
14
62Y-45111-21-8D Casing, Upperケーシング，アツパー; |
62Y-45111-21-8D |
from US $644.16 |
||
|
15
|
15
90119-08M79-00 Bolt, With Washer |
90119-08M79-00 |
US $3.97 |
||
| replacement | |||||
|
15
|
15
97080-08030-00 Bolt |
97080-08030-00 |
from US $2.91 |
||
|
16
|
16
90119-08M82-00 Bolt, With Washer |
90119-08M82-00 |
from US $7.23 |
||
|
17
|
17
62Y-45151-00-00 Cover, Upper Casingカバー，アツパーケーシング; |
62Y-45151-00-00 |
from US $4.68 |
||
|
18
|
18
97880-05016-00 Screw, Pan Head |
97880-05016-00 |
US $1.42 |
||
| replacement | |||||
|
18
|
18
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
19
|
19
92990-05600-00 Washer, Plateワツシヤ，プレート; |
92990-05600-00 |
from US $1.07 |
||
|
20
|
20
6H3-45155-00-00 Capキヤツプ; |
6H3-45155-00-00 |
US $2.41 |
||
| replacements | |||||
|
20
|
20
6C5-45155-00-00 Capキヤツプ; |
6C5-45155-00-00 |
from US $2.64 |
||
|
20
|
20
6C5-45155-01-00 CAPキヤツプ; |
6C5-45155-01-00 |
US $2.64 |
||
|
20
|
20
6C5-45155-02-00 Capキヤツプ; |
6C5-45155-02-00 |
from US $2.64 |
||
|
20
|
20
6C5-45155-02-00 Capキヤツプ; |
6C5-45155-02-00 |
from US $2.64 |
||
|
21
|
21
69W-45318-00-00 Bushing, Drive Shaft |
69W-45318-00-00 |
from US $35.65 |
||
|
22
|
22
93420-36M01-00 Circlipサークリツプ; |
93420-36M01-00 |
from US $6.06 |
||
|
23
|
23
62Y-11325-00-00 Anodeアノード; |
62Y-11325-00-00 |
from US $8.60 |
||
|
24
|
24
66M-11328-00-00 Grommet, Anode |
66M-11328-00-00 |
US $1.94 |
||
|
25
|
25
66M-11327-00-94 Cover, Anode |
66M-11327-00-94 |
from US $5.24 |
||
|
26
|
26
66M-12535-00-00 Plate |
66M-12535-00-00 |
from US $3.54 |
||
|
27
|
27
97095-05012-00 Boltボルト; |
97095-05012-00 |
from US $1.55 |
||
|
28
|
28
929-95056-00-00
Washer, Plate
|
929-95056-00-00 |
— | ||
| replacement | |||||
|
28
|
28
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
29
|
29
97013-06020-00 Boltボルト; |
97013-06020-00 |
from US $1.42 |
||
|
30
|
30
929-03066-00-00
Washer, Plate
ワツシヤ，プレート; |
929-03066-00-00 |
— | ||
| replacement | |||||
|
30
|
30
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.39 |
||
|
31
|
31
63D-45211-02-4D ExtensionＸ （２５．４＆ｑｕｏｔ；） |
63D-45211-02-4D |
US $731.28 |
||
| replacement | |||||
|
31
|
31
63D-45211-02-8D ExtensionＸ （２５．４＆ｑｕｏｔ；） |
63D-45211-02-8D |
US $731.28 |
||
|
32
|
32
936-06120-19-00 Pin, DowelＸ （２５．４＆ｑｕｏｔ；） |
936-06120-19-00 |
from US $2.86 |
||
|
33
|
33
90116-10M53-00 Bolt, Studボルト，スタツド; Ｘ （２５．４＆ｑｕｏｔ；） |
90116-10M53-00 |
US $24.23 |
||
| replacement | |||||
|
33
|
33
90116-10039-00 Bolt, Studボルト，スタツド; Ｘ （２５．４＆ｑｕｏｔ；） |
90116-10039-00 |
from US $24.23 |
||
|
34
|
34
90119-08M00-00 Bolt, With Washerボルト，ウイズワツシヤ; Ｘ （２５．４＆ｑｕｏｔ；） |
90119-08M00-00 |
from US $3.40 |
||
|
35
|
35
95380-10600-00 EcrouＸ （２５．４＆ｑｕｏｔ；） |
95380-10600-00 |
from US $2.36 |
||
|
36
|
36
92990-10100-00 Ybs67-10 Washer, Springワツシヤ，スプリング; Ｘ （２５．４＆ｑｕｏｔ；） |
92990-10100-00 |
from US $1.66 |
||
|
37
|
37
929-90106-00-00 Washer, Plateワツシヤ，プレート; Ｘ （２５．４＆ｑｕｏｔ；） |
929-90106-00-00 |
from US $1.18 |
||
