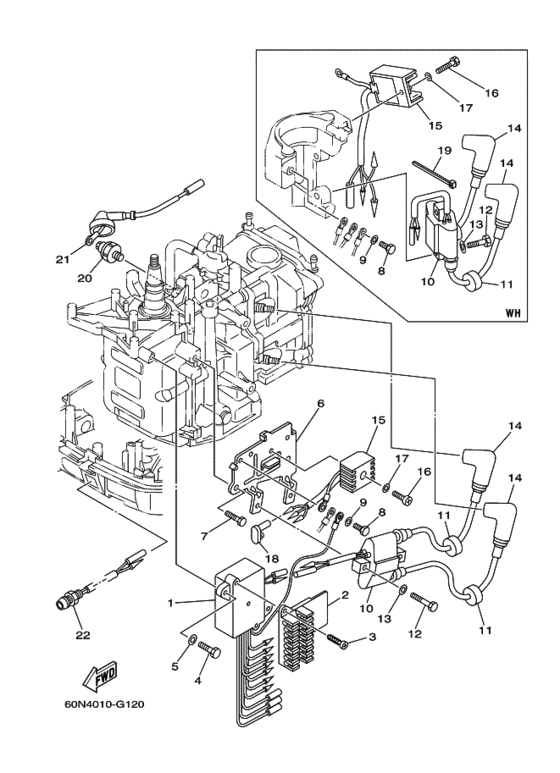

Electrical 1 Diagram Yamaha F6 MHS/L
- Year
- 2008
- Model
- F6A
- Model code
- 60N
- Year
- 2008
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 6
- Sales region
- Japan (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
68R-85540-00-00
C.d.i. Unit Assy
|
68R-85540-00-00 |
— | ||
|
2
|
2
68T-82522-00-00 Clamp, Couplerクランプ，カプラー; |
68T-82522-00-00 |
from US $5.53 |
||
|
3
|
3
97780-40512-00 Screw, Tapping |
97780-40512-00 |
US $1.84 |
||
| replacement | |||||
|
3
|
3
97780-40112-00 Screw, Oval Head Tapping |
97780-40112-00 |
from US $1.84 |
||
|
4
|
4
97095-06020-00 Boltボルト; |
97095-06020-00 |
US $1.56 |
||
| replacement | |||||
|
4
|
4
970-80060-20-00 Boltボルト; |
970-80060-20-00 |
from US $1.56 |
||
|
5
|
5
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
5
|
5
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
6
|
6
68T-85542-00-00 BracketＭＨ |
68T-85542-00-00 |
from US $26.92 |
||
|
7
|
7
97095-08012-00 BoltＭＨ |
97095-08012-00 |
from US $1.07 |
||
| replacement | |||||
|
7
|
7
97D95-08012-00 ＭＨ |
97D95-08012-00 |
from US $1.07 |
||
|
8
|
8
97095-06012-00 Boltボルト; |
97095-06012-00 |
from US $1.98 |
||
| replacement | |||||
|
8
|
8
970-80060-12-00 Boltボルト; |
970-80060-12-00 |
from US $1.98 |
||
|
9
|
9
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
9
|
9
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
10
|
10
680-85570-01-00 Ignition Coil Assy |
680-85570-01-00 |
US $102.38 |
||
| replacement | |||||
|
10
|
10
680-85570-02-00 Ignition Coil Assy |
680-85570-02-00 |
from US $102.38 |
||
|
11
|
11
90480-25161-00 Grommet |
90480-25161-00 |
from US $2.41 |
||
|
12
|
12
970-95060-25-00
Bolt
ボルト; |
970-95060-25-00 |
— | ||
| replacement | |||||
|
12
|
12
90101-06M27-00 Boltボルト; |
90101-06M27-00 |
from US $1.35 |
||
|
13
|
13
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
13
|
13
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
14
|
14
6E3-82370-21-00 Plug Cap Assy |
6E3-82370-21-00 |
from US $15.87 |
||
|
15
|
15
664-81970-61-00 Rectifier Assemblyレクチフアイヤアセンブリ; ＵＲ ＭＨ |
664-81970-61-00 |
US $88.98 |
||
| replacement | |||||
|
15
|
15
664-81970-62-00 Rectifier Assyレクチフアイヤアセンブリ; ＵＲ ＭＨ |
664-81970-62-00 |
from US $88.98 |
||
|
15
|
15
68T-81960-00-00 Rectifier & Regulator Assyレクチフアイヤアンドレギユレータアセンブリ; ＵＲ ＷＨ |
68T-81960-00-00 |
from US $105.42 |
||
|
16
|
16
97095-06012-00 Boltボルト; ＵＲ ＷＨ |
97095-06012-00 |
from US $1.98 |
||
| replacement | |||||
|
16
|
16
970-80060-12-00 Boltボルト; ＵＲ ＷＨ |
970-80060-12-00 |
from US $1.98 |
||
|
16
|
16
97880-05025-00 Screw, Pan HeadＵＲ ＭＨ |
97880-05025-00 |
US $1.35 |
||
| replacement | |||||
|
16
|
16
985-80055-25-00 Screw, Pan HeadＵＲ ＭＨ |
985-80055-25-00 |
from US $1.33 |
||
|
17
|
17
92990-05600-00 Washer, Plateワツシヤ，プレート; ＵＲ ＭＨ |
92990-05600-00 |
from US $1.07 |
||
|
17
|
17
929-95066-00-00
Washer, Plate
ＵＲ ＷＨ |
929-95066-00-00 |
— | ||
| replacement | |||||
|
17
|
17
929-90066-00-00 Washer, Plain (646)ＵＲ ＷＨ |
929-90066-00-00 |
from US $1.07 |
||
|
18
|
18
6A0-82119-00-00 Cover, Lead Wireカバー，リードワイヤ; ＭＨ |
6A0-82119-00-00 |
from US $5.53 |
||
|
19
|
19
904-6511M-10-00
Clamp
ＷＨ |
904-6511M-10-00 |
— | ||
| replacements | |||||
|
19
|
19
80L-26397-00-00 BandＷＨ |
80L-26397-00-00 |
from US $1.21 |
||
|
19
|
19
904-65100-98-00 ClampＷＨ |
904-65100-98-00 |
from US $1.34 |
||
|
20
|
20
67F-82504-00-00 Oil Pressure Switch Assy |
67F-82504-00-00 |
from US $33.15 |
||
|
21
|
21
68T-82127-10-00 Wire, Lead 2ワイヤ，リード ２; |
68T-82127-10-00 |
from US $8.78 |
||
|
22
|
22
68T-85410-00-00 Emergency Signal Light Assyエマージエンシーシグナルライトアセンブリ; |
68T-85410-00-00 |
from US $23.38 |
||
