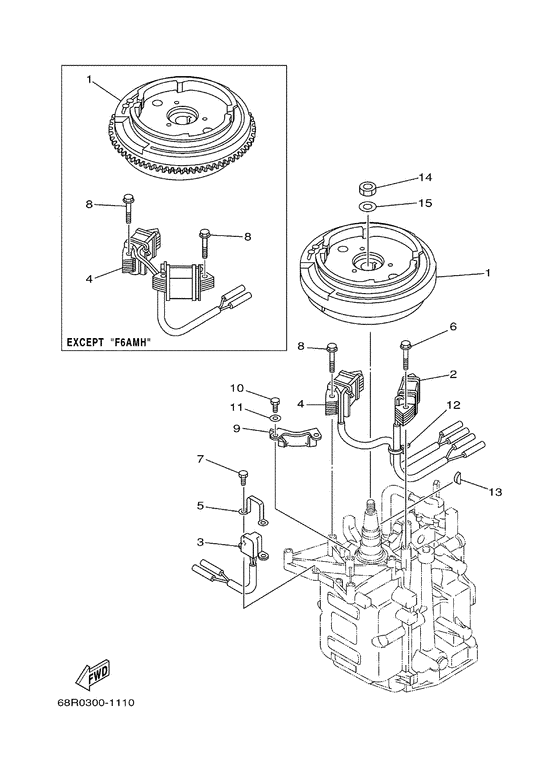

Generator Diagram Yamaha F6 MHS/L
- Year
- 2002
- Model
- F6A
- Model code
- 68R
- Year
- 2002
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 6
- Sales region
- Europe (General) (100)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
02
|
02
68T-85520-00-00 Coil, Charge |
68T-85520-00-00 |
from US $74.74 |
||
|
03
|
03
68T-85580-01-00 Coil, Pulser |
68T-85580-01-00 |
from US $55.13 |
||
|
05
|
05
6H2-85582-00-00 Attachment, Pulser |
6H2-85582-00-00 |
from US $9.49 |
||
|
06
|
06
90119-06014-00 Bolt, With Washer |
90119-06014-00 |
from US $1.84 |
||
| replacement | |||||
|
06
|
06
97513-06525-00 Bolt, With Washer |
97513-06525-00 |
from US $1.84 |
||
|
07
|
07
97095-05010-00 Bolt |
97095-05010-00 |
from US $1.78 |
||
|
12
|
12
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
12
|
12
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.21 |
||
|
12
|
12
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.34 |
||
|
13
|
13
90280-04M06-00 Key, Woodruff |
90280-04M06-00 |
from US $4.82 |
||
|
14
|
14
90170-12066-00 Nut |
90170-12066-00 |
from US $6.94 |
||
|
15
|
15
902-01124-72-00
Washer, Plate
|
902-01124-72-00 |
— | ||
| replacement | |||||
|
15
|
15
90201-126A7-00 Washer, Plate (4N0) |
90201-126A7-00 |
from US $1.70 |
||
