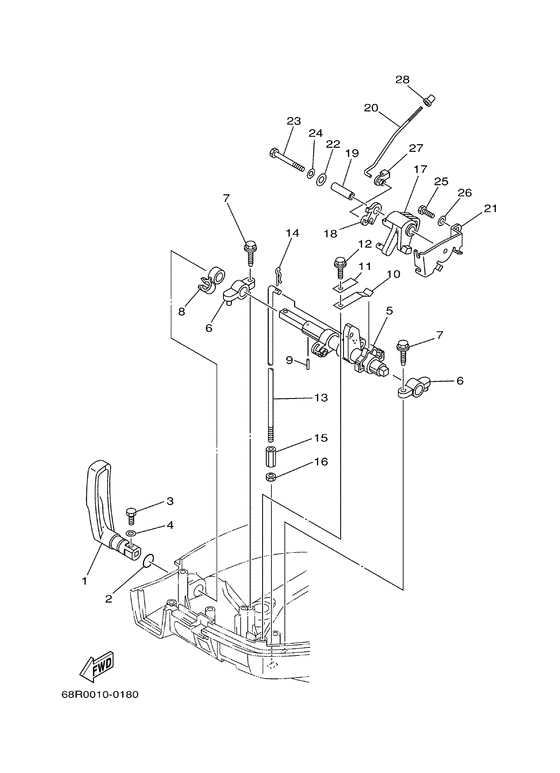

Control Diagram Yamaha F6 MHS/L
- Year
- 2001
- Model
- F6B
- Model code
- 69F
- Year
- 2001
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 6
- Sales region
- Europe (General) (020)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
68T-44111-00-00 Handle, Gear Shift |
68T-44111-00-00 |
US $28.90 |
||
| replacement | |||||
|
01
|
01
6AU-44111-00-00 Handle, Gear Shift |
6AU-44111-00-00 |
US $28.90 |
||
|
02
|
02
93210-12327-00 O-Ring |
93210-12327-00 |
from US $1.70 |
||
| replacement | |||||
|
02
|
02
93210-12790-00 O-Ring |
93210-12790-00 |
from US $1.34 |
||
|
03
|
03
970-95050-16-00 Bolt |
970-95050-16-00 |
from US $1.55 |
||
|
04
|
04
929-95056-00-00
Washer, Plate
|
929-95056-00-00 |
— | ||
| replacement | |||||
|
04
|
04
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
05
|
05
68T-44121-01-00 Lever, Shift Rod |
68T-44121-01-00 |
US $44.35 |
||
| replacement | |||||
|
05
|
05
68T-44121-03-00 Lever, Shift Rod |
68T-44121-03-00 |
from US $44.35 |
||
|
06
|
06
6G1-41662-01-94 Bracket 2 |
6G1-41662-01-94 |
from US $10.63 |
||
|
07
|
07
901-0906M-81-00 Bolt |
901-0906M-81-00 |
from US $2.52 |
||
|
08
|
08
90464-10M60-00 Clamp |
90464-10M60-00 |
from US $3.83 |
||
|
09
|
09
91690-30014-00 Pin, Spring |
91690-30014-00 |
from US $1.50 |
||
|
10
|
10
65W-44116-00-00 Spring |
65W-44116-00-00 |
from US $4.39 |
||
|
11
|
11
66R-44114-00-00 Stopper |
66R-44114-00-00 |
from US $6.94 |
||
|
12
|
12
90109-06M86-00 Bolt |
90109-06M86-00 |
from US $2.52 |
||
|
13
|
13
68T-44143-00-00 Rod, ShiftS |
68T-44143-00-00 |
US $18.84 |
||
| replacement | |||||
|
13
|
13
68T-44143-01-00 Rod, Shift 1S |
68T-44143-01-00 |
from US $18.84 |
||
|
13
|
13
68T-44143-10-00 Rod, ShiftL |
68T-44143-10-00 |
US $18.84 |
||
| replacement | |||||
|
13
|
13
68T-44143-11-00 Rod, ShiftL |
68T-44143-11-00 |
from US $18.84 |
||
|
14
|
14
90468-18001-00 Clip |
90468-18001-00 |
from US $2.55 |
||
|
15
|
15
90170-06015-00 Nut |
90170-06015-00 |
US $9.78 |
||
| replacement | |||||
|
15
|
15
61N-44146-00-00 Connector, Shift Rod 2 |
61N-44146-00-00 |
from US $9.60 |
||
|
16
|
16
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.34 |
||
| replacement | |||||
|
16
|
16
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.42 |
||
|
17
|
17
68T-41638-00-00 Pulley |
68T-41638-00-00 |
from US $10.30 |
||
|
18
|
18
68T-41283-00-00 Lever, Free AccelF8c |
68T-41283-00-00 |
from US $4.68 |
||
|
18
|
18
68R-41283-00-00 Lever, Free AccelF6a,f6b |
68R-41283-00-00 |
from US $4.19 |
||
|
19
|
19
90387-06M59-00 Collar |
90387-06M59-00 |
from US $4.53 |
||
|
20
|
20
68T-41211-00-00 Link, AccelF6a,f8c |
68T-41211-00-00 |
from US $7.65 |
||
|
20
|
20
69F-41211-00-00
Link, Accel
F6b |
69F-41211-00-00 |
— | ||
|
21
|
21
68T-14497-00-00 Stay, Throttle Wire |
68T-14497-00-00 |
from US $9.21 |
||
|
22
|
22
90201-06M62-00 Washer, Plate |
90201-06M62-00 |
from US $2.55 |
||
|
23
|
23
97095-06045-00 Bolt |
97095-06045-00 |
from US $3.04 |
||
| replacement | |||||
|
23
|
23
970-80060-45-00 Bolt |
970-80060-45-00 |
from US $4.56 |
||
|
24
|
24
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
24
|
24
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
25
|
25
97095-06012-00 Bolt |
97095-06012-00 |
from US $1.98 |
||
| replacement | |||||
|
25
|
25
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
26
|
26
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
26
|
26
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
27
|
27
661-41262-02-00 Joint, Choke Lever |
661-41262-02-00 |
from US $7.62 |
||
|
28
|
28
647-14395-60-00 Cap, Overflow Pipe |
647-14395-60-00 |
US $4.39 |
||
