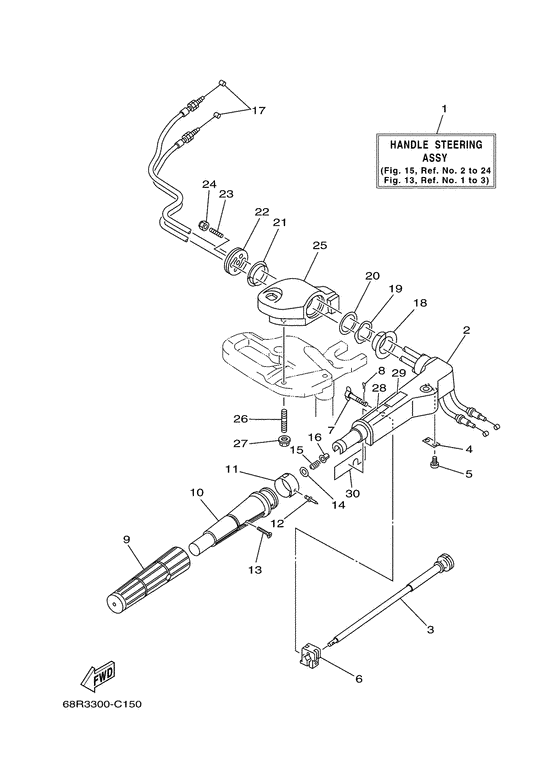

Steering Diagram Yamaha F6 MHS/L
- Year
- 2004
- Model
- F6B
- Model code
- 69F
- Year
- 2004
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 6
- Sales region
- Europe (General) (020)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
68T-W0084-01-4D Handle Steering Assy |
68T-W0084-01-4D |
US $447.39 |
||
| replacements | |||||
|
01
|
01
6AU-Y301P-03-00 Handle Steering Assy |
6AU-Y301P-03-00 |
US $436.23 |
||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
01
|
01
6AU-W0084-02-8D Handle Steering Assy |
6AU-W0084-02-8D |
US $540.97 |
||
|
02
|
02
63V-42111-01-4D Handle, Steering |
63V-42111-01-4D |
US $78.20 |
||
| replacement | |||||
|
02
|
02
63V-42111-01-8D HANDLE, STEERING |
63V-42111-01-8D |
from US $78.20 |
||
|
03
|
03
6G1-42138-01-00 Lever, Throttle |
6G1-42138-01-00 |
from US $46.42 |
||
| replacement | |||||
|
03
|
03
6EG-G2138-00-00 Lever, Throttle |
6EG-G2138-00-00 |
from US $23.66 |
||
|
04
|
04
6E0-42159-02-00 Stay |
6E0-42159-02-00 |
from US $6.38 |
||
|
05
|
05
978-85050-12-00 Screw, Pan Head |
978-85050-12-00 |
from US $1.70 |
||
| replacement | |||||
|
05
|
05
98580-05012-00 Screw, Pan Head |
98580-05012-00 |
from US $1.34 |
||
|
06
|
06
6G1-42126-00-00 Friction, Steering Handle Grip |
6G1-42126-00-00 |
from US $8.64 |
||
| replacement | |||||
|
06
|
06
6EE-G2126-00-00 Friction, Steering |
6EE-G2126-00-00 |
from US $2.98 |
||
|
07
|
07
6G1-42125-01-00 Bolt, Friction Adjusting |
6G1-42125-01-00 |
from US $10.63 |
||
|
08
|
08
91490-16010-00 Pin. Cotter |
91490-16010-00 |
from US $1.34 |
||
|
09
|
09
67D-42177-00-00 Rubber, Handle |
67D-42177-00-00 |
US $11.05 |
||
| replacement | |||||
|
09
|
09
67D-42177-01-00 RUBBER HANDLE |
67D-42177-01-00 |
from US $11.05 |
||
|
10
|
10
67D-42119-00-00 Grip, Steering Handle |
67D-42119-00-00 |
US $31.74 |
||
| replacement | |||||
|
10
|
10
67D-42119-01-00 Grip, Steering Handle |
67D-42119-01-00 |
from US $31.74 |
||
|
11
|
11
68R-42137-10-00
Indicator, Throttle
F6a |
68R-42137-10-00 |
— | ||
| replacement | |||||
|
11
|
11
60N-G2137-10-00
Indicator, Throttle
F6a |
60N-G2137-10-00 |
— | ||
|
11
|
11
68T-42137-00-00 Indicator, ThrottleF8c |
68T-42137-00-00 |
from US $10.06 |
||
| replacement | |||||
|
11
|
11
60R-G2137-00-00 Indicator ThrottleF8c |
60R-G2137-00-00 |
from US $7.79 |
||
|
11
|
11
69F-42137-10-00
Indicator, Throttle
F6b |
69F-42137-10-00 |
— | ||
|
12
|
12
90269-02M09-00 Rivet |
90269-02M09-00 |
from US $1.98 |
||
|
13
|
13
901-4905M-13-00
Screw
|
901-4905M-13-00 |
— | ||
| replacement | |||||
|
13
|
13
901-52050-11-00 Screw, Countersunk |
901-52050-11-00 |
from US $1.34 |
||
|
14
|
14
92903-10600-00 Washer, Plate |
92903-10600-00 |
US $1.07 |
||
| replacement | |||||
|
14
|
14
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.07 |
||
|
15
|
15
90501-23215-00 Spring, Compression |
90501-23215-00 |
from US $3.40 |
||
|
16
|
16
90386-08032-00 Bush |
90386-08032-00 |
from US $2.13 |
||
|
17
|
17
68T-26301-01-00 Throttle Cable Assy |
68T-26301-01-00 |
US $15.73 |
||
|
18
|
18
90386-34M97-00 Bush |
90386-34M97-00 |
from US $3.64 |
||
|
19
|
19
90206-36M21-00 Washer, Wave |
90206-36M21-00 |
from US $6.52 |
||
|
20
|
20
90202-36M55-00 Washer, Plate |
90202-36M55-00 |
from US $2.55 |
||
|
21
|
21
90386-33M96-00 Bush |
90386-33M96-00 |
from US $2.98 |
||
|
22
|
22
68T-42131-01-00 Cover, Handle Steering |
68T-42131-01-00 |
US $18.84 |
||
|
23
|
23
90116-08015-00 Bolt, Stud |
90116-08015-00 |
US $9.21 |
||
|
24
|
24
901-85080-57-00
Nut, Self-Locking
|
901-85080-57-00 |
— | ||
| replacement | |||||
|
24
|
24
95780-08300-00 Nut, Nylon (6J8) |
95780-08300-00 |
from US $6.30 |
||
|
25
|
25
68T-42121-00-4D Bracket |
68T-42121-00-4D |
US $96.30 |
||
| replacement | |||||
|
25
|
25
60R-G2121-00-4D Bracket |
60R-G2121-00-4D |
from US $96.30 |
||
|
26
|
26
90116-10019-00 Bolt, Stud |
90116-10019-00 |
US $5.68 |
||
|
27
|
27
90179-10M33-00 Nut |
90179-10M33-00 |
from US $6.09 |
||
|
28
|
28
6E0-83627-41-00 Label, Caution 7 |
6E0-83627-41-00 |
from US $6.66 |
||
|
29
|
29
6E0-83627-51-00 Label, Caution 7 |
6E0-83627-51-00 |
US $3.67 |
||
|
30
|
30
68T-1571Y-60-00
Mark, Caution
|
68T-1571Y-60-00 |
— | ||
