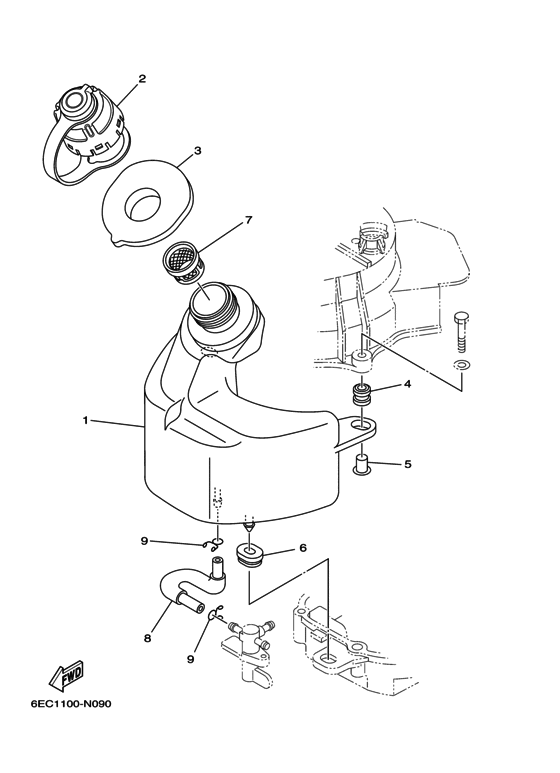

Fuel 1 Diagram Yamaha F6 LMHA
- Year
- 2017
- Model
- F6
- Year
- 2017
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 6
- Sales region
- U.S.A.
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6EE-F4111-11-00 Tank, Fuel |
6EE-F4111-11-00 |
from US $167.17 |
||
|
2
|
2
6BX-24610-10-00 Cap Assy |
6BX-24610-10-00 |
from US $199.26 |
||
|
3
|
3
6BX-24641-00-00 Gasket, Cap 1 |
6BX-24641-00-00 |
from US $35.51 |
||
|
4
|
4
6A0-82317-00-00 Damper, Ignition Coil |
6A0-82317-00-00 |
from US $4.53 |
||
| replacement | |||||
|
4
|
4
6A0-82317-01-00 DAMPER IGNITION COIL |
6A0-82317-01-00 |
from US $1.34 |
||
|
5
|
5
90387-06119-00 Collar |
90387-06119-00 |
from US $2.32 |
||
|
6
|
6
90480-01559-00 Grommet |
90480-01559-00 |
from US $4.39 |
||
|
7
|
7
6EE-F4167-00-00 Strainer |
6EE-F4167-00-00 |
from US $15.44 |
||
|
8
|
8
6EE-F4311-10-00 Pipe, Fuel 1 |
6EE-F4311-10-00 |
from US $20.97 |
||
|
9
|
9
90467-09M09-00 Clip(6K8) |
90467-09M09-00 |
from US $1.71 |
||
