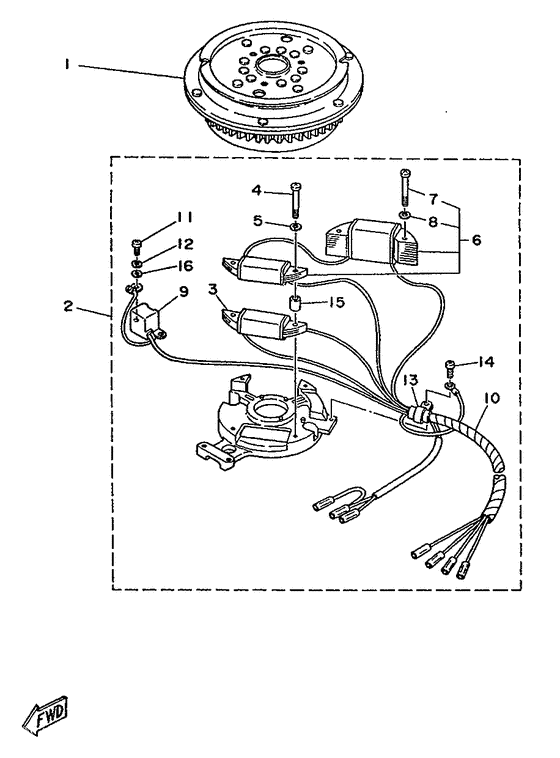

C.d.i. magneto (F8AEM/F9.9AEM/F9.9AE MOD.) Diagram Yamaha F8 MHS/L
- Year
- 1987
- Model
- F8A
- Model code
- 6J6
- Year
- 1987
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 8
- Sales region
- Europe (General) (999)
- Colour
- Harbor White (HW; 00EL)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6G8-85550-K0-00
Rotor Assy
|
6G8-85550-K0-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
6G8-85560-00-00
Base Assy
|
6G8-85560-00-00 |
— | ||
|
03
|
03
6G8-85520-00-00
Coil, Charge
|
6G8-85520-00-00 |
— | ||
|
04
|
04
97802-05040-00 Screw, Pan Head |
97802-05040-00 |
US $1.42 |
||
| replacements | |||||
|
04
|
04
98580-05540-00 Screw,panhead (Eg9) |
98580-05540-00 |
from US $3.12 |
||
|
04
|
04
98507-05040-00 Screw, Pan Head |
98507-05040-00 |
from US $1.42 |
||
|
05
|
05
92902-05100-00 Washer, Spring |
92902-05100-00 |
US $1.21 |
||
| replacement | |||||
|
05
|
05
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
06
|
06
6G8-81303-00-00
Lighting Coil Assy
|
6G8-81303-00-00 |
— | ||
|
07
|
07
97802-05040-00 Screw, Pan Head |
97802-05040-00 |
US $1.42 |
||
| replacements | |||||
|
07
|
07
98580-05540-00 Screw,panhead (Eg9) |
98580-05540-00 |
from US $3.12 |
||
|
07
|
07
98507-05040-00 Screw, Pan Head |
98507-05040-00 |
from US $1.42 |
||
|
08
|
08
92902-05100-00 Washer, Spring |
92902-05100-00 |
US $1.21 |
||
| replacement | |||||
|
08
|
08
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
09
|
09
6G8-85580-00-00
Coil, Pulser
|
6G8-85580-00-00 |
— | ||
| replacement | |||||
|
09
|
09
6G8-85580-01-00
Coil Pulser
|
6G8-85580-01-00 |
— | ||
|
10
|
10
6G8-85515-00-00
Lead Wire Assembly
|
6G8-85515-00-00 |
— | ||
|
11
|
11
97802-05012-00 Screw, Pan Head |
97802-05012-00 |
from US $1.21 |
||
| replacements | |||||
|
11
|
11
98580-05012-00 Screw, Pan Head |
98580-05012-00 |
from US $2.13 |
||
|
11
|
11
98517-05012-00 Screw, Pan Head |
98517-05012-00 |
from US $1.21 |
||
|
12
|
12
92902-05100-00 Washer, Spring |
92902-05100-00 |
US $1.21 |
||
| replacement | |||||
|
12
|
12
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
13
|
13
445-81328-20-00 Clamp |
445-81328-20-00 |
from US $3.54 |
||
|
14
|
14
97802-04008-00 Screw, Pan Head |
97802-04008-00 |
US $1.21 |
||
| replacement | |||||
|
14
|
14
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.39 |
||
|
15
|
15
6G8-85519-00-00
Spacer
|
6G8-85519-00-00 |
— | ||
|
16
|
16
929-03056-00-00
Washer, Plate
|
929-03056-00-00 |
— | ||
| replacement | |||||
|
16
|
16
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
