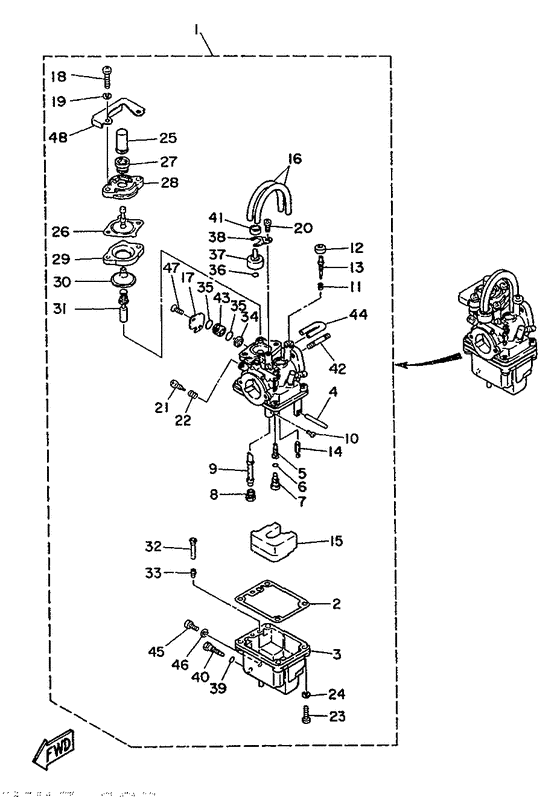

Carburetor Diagram Yamaha F8 MHS/L
- Year
- 1988
- Model
- F8A
- Model code
- 6J6
- Year
- 1988
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 8
- Sales region
- Europe (General) (999)
- Colour
- Harbor White (HW; 00EL)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6G8-14301-00-00
Carburetor Assy 1
Ur |
6G8-14301-00-00 |
— | ||
| replacement | |||||
|
01
|
01
6G8-14301-09-00
Carburetor Assy
Ur |
6G8-14301-09-00 |
— | ||
|
01
|
01
6J6-14301-01-00
Carburetor Assy 1
Ur |
6J6-14301-01-00 |
— | ||
| replacements | |||||
|
01
|
01
6J6-14301-09-00
Carburetor Assy
Ur |
6J6-14301-09-00 |
— | ||
|
01
|
01
6J6-14301-02-00
Carburetor Assy
Ur |
6J6-14301-02-00 |
— | ||
|
02
|
02
6G8-14384-00-00 Gasket, Float Chamber |
6G8-14384-00-00 |
from US $8.93 |
||
|
03
|
03
6G8-14381-00-00
Body, Float Chamber Chamber
|
6G8-14381-00-00 |
— | ||
| replacement | |||||
|
03
|
03
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
04
|
04
647-14386-00-00
Pin, Float
|
647-14386-00-00 |
— | ||
| replacement | |||||
|
04
|
04
647-14386-10-00 Pin, Float |
647-14386-10-00 |
from US $2.88 |
||
|
05
|
05
6G8-14342-20-00
Jet, Pilot
Ur |
6G8-14342-20-00 |
— | ||
| replacement | |||||
|
05
|
05
999-99999-99-00
Not Available
Ur |
999-99999-99-00 |
— | ||
|
05
|
05
6G8-14342-21-00
Jet, Pilot
Ur |
6G8-14342-21-00 |
— | ||
|
06
|
06
654-14198-00-00 Gasket |
654-14198-00-00 |
from US $4.53 |
||
|
07
|
07
6G8-14345-00-00 Plug, Main Nozzle |
6G8-14345-00-00 |
from US $2.29 |
||
|
08
|
08
648-14343-46-00
Jet, Main
Ur |
648-14343-46-00 |
— | ||
|
08
|
08
648-14343-47-00
Jet, Main (#94)
Ur |
648-14343-47-00 |
— | ||
|
09
|
09
6G8-14341-00-00
Nozzle, Main
Ur |
6G8-14341-00-00 |
— | ||
|
09
|
09
6J6-14341-00-00
Nozzle, Main
Ur |
6J6-14341-00-00 |
— | ||
|
10
|
10
654-14216-00-00
Screw
|
654-14216-00-00 |
— | ||
|
11
|
11
647-14334-00-00 Spring, Air Adjusting |
647-14334-00-00 |
from US $2.97 |
||
|
12
|
12
6G8-14997-00-00
Seal
|
6G8-14997-00-00 |
— | ||
|
13
|
13
6G8-14323-00-00 Screw, Air Adjusting |
6G8-14323-00-00 |
from US $34.85 |
||
|
14
|
14
6G8-14392-00-00 Valve, Needle |
6G8-14392-00-00 |
from US $11.42 |
||
|
15
|
15
6G8-14385-00-00 Float |
6G8-14385-00-00 |
from US $31.74 |
||
|
16
|
16
6G8-14197-00-00
Pipe
|
6G8-14197-00-00 |
— | ||
|
17
|
17
6G8-14346-01-00
Plate
|
6G8-14346-01-00 |
— | ||
|
18
|
18
92580-06020-00 Screw |
92580-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
18
|
18
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.02 |
||
|
19
|
19
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
19
|
19
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
20
|
20
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.39 |
||
|
21
|
21
648-14321-00-00
Screw, Pan Head
|
648-14321-00-00 |
— | ||
| replacement | |||||
|
21
|
21
98580-04014-00 Screw, Pan Head |
98580-04014-00 |
from US $1.42 |
||
|
22
|
22
646-14212-01-00 Spring, Pilot Adjusting |
646-14212-01-00 |
from US $4.11 |
||
|
23
|
23
98580-04016-00 Screw, Panhead (+) |
98580-04016-00 |
from US $1.07 |
||
|
24
|
24
92903-04100-00 Washer |
92903-04100-00 |
from US $1.21 |
||
| replacement | |||||
|
24
|
24
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
25
|
25
6G8-14355-00-00
Cap
|
6G8-14355-00-00 |
— | ||
|
26
|
26
6G8-14368-00-00 Diaphragm Assembly 1 |
6G8-14368-00-00 |
from US $61.34 |
||
|
27
|
27
6G8-14373-00-00
Cover, Plunger Cap
|
6G8-14373-00-00 |
— | ||
|
28
|
28
6G8-14374-00-00
Cap, Plunger
|
6G8-14374-00-00 |
— | ||
|
29
|
29
14T-14367-00-00
Nozzle, Main 2
|
14T-14367-00-00 |
— | ||
|
30
|
30
33A-14369-00-00
Diaphragm Assembly
|
33A-14369-00-00 |
— | ||
|
31
|
31
6G8-14371-00-00
Plunger, Starter
|
6G8-14371-00-00 |
— | ||
|
32
|
32
6G8-14318-27-00
Pipe, Starter
|
6G8-14318-27-00 |
— | ||
|
33
|
33
6A4-14344-31-00
Jet, Starter
|
6A4-14344-31-00 |
— | ||
|
34
|
34
6G8-14272-00-00
Valve, Check Seat
|
6G8-14272-00-00 |
— | ||
|
35
|
35
1J2-14397-00-00 O-Ring |
1J2-14397-00-00 |
US $4.41 |
||
|
36
|
36
5H0-14397-00-00 O-Ring |
5H0-14397-00-00 |
from US $2.55 |
||
|
37
|
37
6G8-14313-00-00
Valve Air
|
6G8-14313-00-00 |
— | ||
|
38
|
38
6G8-14377-00-00
Stopper
|
6G8-14377-00-00 |
— | ||
|
39
|
39
5Y1-14397-00-00 O-Ring |
5Y1-14397-00-00 |
from US $5.41 |
||
|
40
|
40
6G8-14383-00-00 Screw, Drain |
6G8-14383-00-00 |
from US $14.21 |
||
|
41
|
41
44J-14349-00-00 Pipe |
44J-14349-00-00 |
from US $3.97 |
||
|
42
|
42
90119-06M26-00 Bolt, With Washer |
90119-06M26-00 |
US $4.39 |
||
| replacements | |||||
|
42
|
42
90119-06M08-00 Bolt, With Washer |
90119-06M08-00 |
from US $4.39 |
||
|
42
|
42
90119-06295-00 Bolt, With Washer |
90119-06295-00 |
from US $4.86 |
||
|
43
|
43
6G8-14271-00-00
Insulator
|
6G8-14271-00-00 |
— | ||
|
44
|
44
14T-14396-00-00
Pipe
|
14T-14396-00-00 |
— | ||
| replacement | |||||
|
44
|
44
36F-14396-00-00
Pipe
|
36F-14396-00-00 |
— | ||
|
45
|
45
650-14222-01-00
Screw, Drain
|
650-14222-01-00 |
— | ||
|
46
|
46
650-14222-01-00
Screw, Drain
|
650-14222-01-00 |
— | ||
|
47
|
47
98703-04008-00 Screw, Flat Hd (6G8) |
98703-04008-00 |
US $2.13 |
||
| replacement | |||||
|
47
|
47
98707-04008-00 Screw, Flat Head |
98707-04008-00 |
from US $2.13 |
||
|
48
|
48
6G8-14346-10-00
Plate
|
6G8-14346-10-00 |
— | ||
