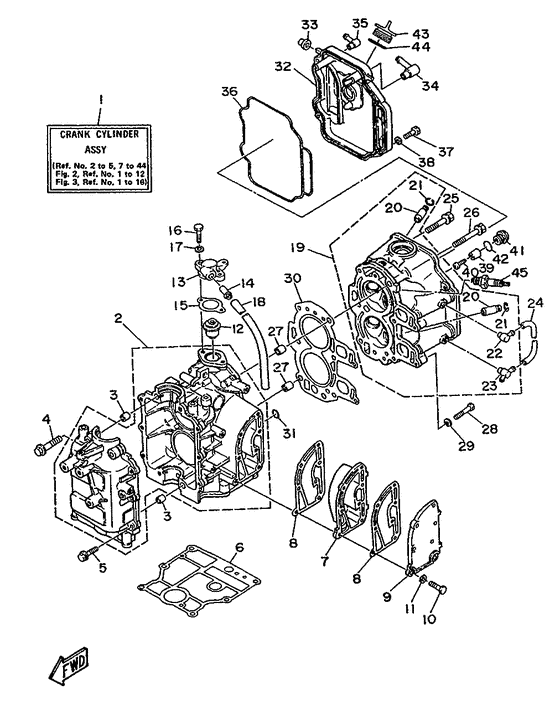

Cylinder. crankcase Diagram Yamaha F8 MHS/L
- Year
- 1988
- Model
- F8A
- Model code
- 6J6
- Year
- 1988
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 8
- Sales region
- Europe (General) (999)
- Colour
- Harbor White (HW; 00EL)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6G8-W0090-05-EL
Crank Cylinder Assy
|
6G8-W0090-05-EL |
— | ||
| replacements | |||||
|
01
|
01
6G8-W0090-10-EL
Crank Cylinder Assy
|
6G8-W0090-10-EL |
— | ||
|
01
|
01
6G8-W0090-06-EL
Crank-Cylinder.assembly
|
6G8-W0090-06-EL |
— | ||
|
02
|
02
6G8-15100-02-94
Crankcase Assembly
|
6G8-15100-02-94 |
— | ||
| replacements | |||||
|
02
|
02
6G8-15100-02-1S
Crank Case Assy
|
6G8-15100-02-1S |
— | ||
|
02
|
02
6G8-15100-02-00 Crankcase Assy |
6G8-15100-02-00 |
US $1,211.86 |
||
|
03
|
03
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
| replacement | |||||
|
03
|
03
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $2.02 |
||
|
04
|
04
901-1908M-18-00
Boulon, Avec Rondelle
|
901-1908M-18-00 |
— | ||
| replacement | |||||
|
04
|
04
90119-08009-00 Bolt, With Washer |
90119-08009-00 |
from US $3.54 |
||
|
05
|
05
90119-06M12-00 Bolt, With Washer |
90119-06M12-00 |
from US $3.97 |
||
|
06
|
06
6G8-11351-00-00 Gasket, Cylinder |
6G8-11351-00-00 |
US $17.85 |
||
| replacement | |||||
|
06
|
06
6G8-11351-A0-00 Gasket, Cylinder |
6G8-11351-A0-00 |
from US $17.14 |
||
|
07
|
07
6G8-41111-01-9M Exhaust Inner Cvr |
6G8-41111-01-9M |
US $21.30 |
||
| replacement | |||||
|
07
|
07
6G8-41111-02-1S
Inner Cover, Exhaust
|
6G8-41111-02-1S |
— | ||
|
08
|
08
6G8-41112-00-00 Gasket, Exhaust Inner Cover |
6G8-41112-00-00 |
US $11.19 |
||
| replacement | |||||
|
08
|
08
6G8-41112-02-00 Gasket, Exhaust Inner Cover |
6G8-41112-02-00 |
from US $11.19 |
||
|
09
|
09
6G8-41113-00-9M Exhaust Outer Cur |
6G8-41113-00-9M |
US $21.30 |
||
| replacement | |||||
|
09
|
09
6G8-41113-10-1S
Outer Cover, Exhaust
|
6G8-41113-10-1S |
— | ||
|
10
|
10
97313-06025-00 Bolt |
97313-06025-00 |
US $1.35 |
||
| replacement | |||||
|
10
|
10
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.52 |
||
|
11
|
11
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
12
|
12
6G8-12411-00-00 Thermostat |
6G8-12411-00-00 |
US $40.34 |
||
| replacement | |||||
|
12
|
12
66M-12411-01-00 Thermostat |
66M-12411-01-00 |
from US $41.57 |
||
|
13
|
13
6G8-12413-00-94 Cover, Thermostat (6G8-12413-00-9M) |
6G8-12413-00-94 |
US $41.45 |
||
| replacement | |||||
|
13
|
13
6G8-12413-00-1S Cover, Thermostat |
6G8-12413-00-1S |
from US $34.13 |
||
|
14
|
14
6E5-24377-00-00 Pipe, Joint 2 |
6E5-24377-00-00 |
from US $9.07 |
||
|
15
|
15
6G8-12414-00-00
Gasket, Cover
|
6G8-12414-00-00 |
— | ||
| replacement | |||||
|
15
|
15
6G8-12414-A0-00 Gasket, Cover |
6G8-12414-A0-00 |
from US $2.64 |
||
|
16
|
16
973-13060-20-00
Bolt, Hexagon
|
973-13060-20-00 |
— | ||
| replacement | |||||
|
16
|
16
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
17
|
17
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
18
|
18
90445-11M66-00 Hose (L410) |
90445-11M66-00 |
from US $12.61 |
||
| replacement | |||||
|
18
|
18
904-45110-83-00 Hose (L800) |
904-45110-83-00 |
from US $12.61 |
||
|
19
|
19
6G8-11111-01-94
Head, Cylinder 1
|
6G8-11111-01-94 |
— | ||
| replacements | |||||
|
19
|
19
6G8-11111-09-1S
Head, Cylinder
|
6G8-11111-09-1S |
— | ||
|
19
|
19
6G8-11111-09-94
Head, Cylinder 1
|
6G8-11111-09-94 |
— | ||
|
20
|
20
6G8-11133-10-00 Guide, Valve 1 |
6G8-11133-10-00 |
from US $32.16 |
||
|
21
|
21
93450-09M01-00 Circlip |
93450-09M01-00 |
from US $1.49 |
||
|
22
|
22
676-11372-00-00 Nipple, Hose |
676-11372-00-00 |
from US $8.76 |
||
|
23
|
23
6G8-11372-01-00
Nipple, Hose
|
6G8-11372-01-00 |
— | ||
|
24
|
24
6G8-12481-00-00
Pipe 1
|
6G8-12481-00-00 |
— | ||
|
25
|
25
90105-08M37-00 Bolt, Flange |
90105-08M37-00 |
from US $4.26 |
||
|
26
|
26
90105-08M36-00 Bolt, Flange |
90105-08M36-00 |
from US $4.68 |
||
|
27
|
27
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
| replacement | |||||
|
27
|
27
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $2.02 |
||
|
28
|
28
970-13060-35-00 Bolt, Hexagon |
970-13060-35-00 |
from US $2.09 |
||
| replacement | |||||
|
28
|
28
970-14060-35-00 Bolt, Hexagon |
970-14060-35-00 |
from US $2.41 |
||
|
29
|
29
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
30
|
30
6G8-11181-00-00 Gasket, Cylinder Head 1 |
6G8-11181-00-00 |
US $62.31 |
||
| replacement | |||||
|
30
|
30
6G8-11181-A1-00 Gasket, Cylinder Head 1 |
6G8-11181-A1-00 |
from US $49.61 |
||
|
31
|
31
93210-11M59-00 O-Ring |
93210-11M59-00 |
from US $2.27 |
||
|
32
|
32
6G8-11191-01-94
Cover, Cylinder Head 1
|
6G8-11191-01-94 |
— | ||
| replacement | |||||
|
32
|
32
6G8-11191-01-1S
Cover, Cylinder Head 1
|
6G8-11191-01-1S |
— | ||
|
33
|
33
6G8-81336-00-00 Grommet |
6G8-81336-00-00 |
from US $1.40 |
||
|
34
|
34
6G8-15373-00-00 Pipe, Breather |
6G8-15373-00-00 |
US $5.58 |
||
| replacement | |||||
|
34
|
34
6G8-15373-01-00 Pipe, Breather |
6G8-15373-01-00 |
US $5.58 |
||
|
35
|
35
676-11372-00-00 Nipple, Hose |
676-11372-00-00 |
from US $8.76 |
||
|
36
|
36
6G8-11356-00-00 Seal, Cylinder 2 |
6G8-11356-00-00 |
from US $18.56 |
||
|
37
|
37
973-13060-20-00
Bolt, Hexagon
|
973-13060-20-00 |
— | ||
| replacement | |||||
|
37
|
37
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
38
|
38
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
39
|
39
6G8-11325-00-00 Anode |
6G8-11325-00-00 |
from US $1.32 |
||
|
40
|
40
985-80055-25-00 Screw, Pan Head |
985-80055-25-00 |
from US $1.33 |
||
|
41
|
41
6G8-11197-00-00 Plug, Blind |
6G8-11197-00-00 |
US $12.18 |
||
| replacement | |||||
|
41
|
41
6G8-11197-A0-00 Plug, Blind |
6G8-11197-A0-00 |
from US $12.18 |
||
|
42
|
42
93210-13M63-00 O-Ring |
93210-13M63-00 |
from US $1.94 |
||
|
43
|
43
6G8-15363-00-00 Plug, Oil |
6G8-15363-00-00 |
from US $8.05 |
||
|
44
|
44
932-1024M-79-00
O-Ring
|
932-1024M-79-00 |
— | ||
| replacements | |||||
|
44
|
44
932-10242-35-00 O-Ring |
932-10242-35-00 |
from US $3.04 |
||
|
44
|
44
93210-24800-00 O-Ring |
93210-24800-00 |
from US $2.29 |
||
|
45
|
45
94701-00282-00
Plug, Spark
Ur |
94701-00282-00 |
— | ||
| replacements | |||||
|
45
|
45
CR6-HSA00-00-00 Plug Spark (Ngk Cr6Hsa)Ur |
CR6-HSA00-00-00 |
US $32.92 |
||
|
45
|
45
CR6-HS000-00-00 B7ES NGK SPLUG 10PUr |
CR6-HS000-00-00 |
US $68.90 |
||
|
45
|
45
94701-00300-00
Plug, Spark
Ur |
94701-00300-00 |
— | ||
