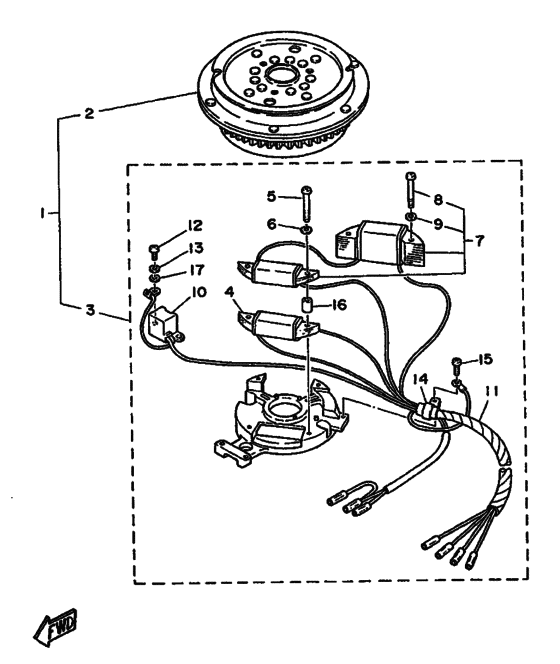

Magneto Diagram Yamaha F8 MHS/L
- Year
- 1986
- Model
- F8A
- Model code
- 6J6
- Year
- 1986
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 8
- Sales region
- Europe (999)
- Colour
- Harbor White (HW; 00EL)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6G8-85500-K0-00
C.d.i. Magneto Assy
|
6G8-85500-K0-00 |
— | ||
|
2
|
2
6G8-85550-K0-00
Rotor Assy
|
6G8-85550-K0-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
6G8-85560-J0-00
Base Assembly
|
6G8-85560-J0-00 |
— | ||
| replacement | |||||
|
3
|
3
6G8-85560-J1-00
Base Assembly
|
6G8-85560-J1-00 |
— | ||
|
4
|
4
6G8-85520-00-00
Coil, Charge
|
6G8-85520-00-00 |
— | ||
|
5
|
5
97802-05040-00 Screw, Pan Head |
97802-05040-00 |
US $1.42 |
||
| replacements | |||||
|
5
|
5
98580-05540-00 Screw,panhead (Eg9) |
98580-05540-00 |
from US $3.12 |
||
|
5
|
5
98507-05040-00 Screw, Pan Head |
98507-05040-00 |
from US $1.42 |
||
|
6
|
6
92902-05100-00 Washer, Spring |
92902-05100-00 |
US $1.21 |
||
| replacement | |||||
|
6
|
6
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
7
|
7
6G8-81303-00-00
Lighting Coil Assy
|
6G8-81303-00-00 |
— | ||
|
8
|
8
97802-05040-00 Screw, Pan Head |
97802-05040-00 |
US $1.42 |
||
| replacements | |||||
|
8
|
8
98580-05540-00 Screw,panhead (Eg9) |
98580-05540-00 |
from US $3.12 |
||
|
8
|
8
98507-05040-00 Screw, Pan Head |
98507-05040-00 |
from US $1.42 |
||
|
9
|
9
92902-05100-00 Washer, Spring |
92902-05100-00 |
US $1.21 |
||
| replacement | |||||
|
9
|
9
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
10
|
10
6G8-85580-00-00
Coil, Pulser
|
6G8-85580-00-00 |
— | ||
| replacement | |||||
|
10
|
10
6G8-85580-01-00
Coil Pulser
|
6G8-85580-01-00 |
— | ||
|
11
|
11
6G8-85515-00-00
Lead Wire Assembly
|
6G8-85515-00-00 |
— | ||
|
12
|
12
97802-05012-00 Screw, Pan Head |
97802-05012-00 |
from US $1.21 |
||
| replacements | |||||
|
12
|
12
98580-05012-00 Screw, Pan Head |
98580-05012-00 |
from US $2.13 |
||
|
12
|
12
98517-05012-00 Screw, Pan Head |
98517-05012-00 |
from US $1.21 |
||
|
13
|
13
92902-05100-00 Washer, Spring |
92902-05100-00 |
US $1.21 |
||
| replacement | |||||
|
13
|
13
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
14
|
14
445-81328-20-00 Clamp |
445-81328-20-00 |
from US $3.54 |
||
|
15
|
15
97802-04008-00 Screw, Pan Head |
97802-04008-00 |
US $1.21 |
||
| replacement | |||||
|
15
|
15
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.39 |
||
|
16
|
16
6G8-85519-00-00
Spacer
|
6G8-85519-00-00 |
— | ||
|
17
|
17
929-03056-00-00
Washer, Plate
(F8AEM/F9.9AEM MODEL) |
929-03056-00-00 |
— | ||
| replacement | |||||
|
17
|
17
92990-05600-00 Washer, Plate(F8AEM/F9.9AEM MODEL) |
92990-05600-00 |
from US $1.07 |
||
