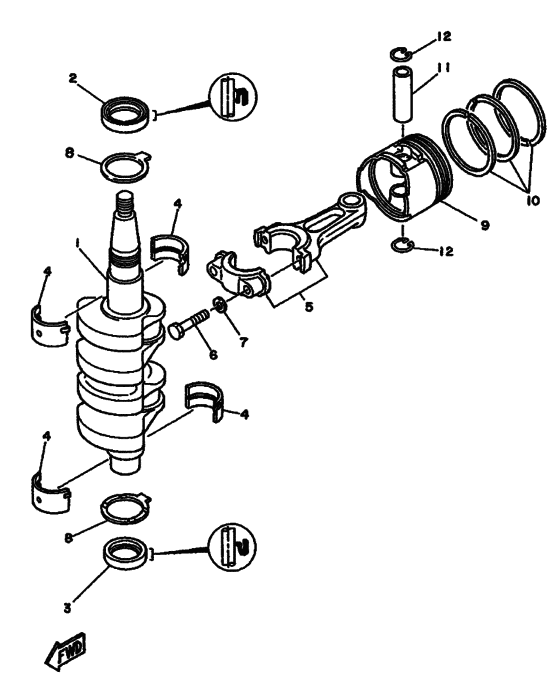

Crankshaft & Piston Diagram Yamaha F8 M(E)HS/L
- Year
- 1990
- Model
- F8B
- Model code
- 6J7
- Year
- 1990
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 8
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6G8-11411-04-00 Crankshaft |
6G8-11411-04-00 |
from US $506.68 |
||
|
2
|
2
93102-30M22-00 Oil Seal |
93102-30M22-00 |
from US $7.49 |
||
|
3
|
3
93101-25M24-00 Oil Seal |
93101-25M24-00 |
from US $8.30 |
||
|
4
|
4
6G8-11416-00-00 Plane Bearing, Crankshaft 1UR |
6G8-11416-00-00 |
US $15.89 |
||
|
4
|
4
6G8-11416-10-00 Plane Bearing, Crankshaft 1UR |
6G8-11416-10-00 |
from US $16.31 |
||
|
4
|
4
6G8-11416-20-00 Plane Bearing, Crankshaft 1UR |
6G8-11416-20-00 |
from US $16.31 |
||
|
5
|
5
6G8-11650-03-00 Connecting Rod Assy |
6G8-11650-03-00 |
from US $161.65 |
||
|
6
|
6
6G8-11654-00-00 Bolt, Connecting Rod |
6G8-11654-00-00 |
from US $2.64 |
||
|
7
|
7
90201-06M00-00 Washer, Plate |
90201-06M00-00 |
from US $2.83 |
||
|
8
|
8
6G8-11426-00-00 Bearing, Thrust 1 |
6G8-11426-00-00 |
from US $4.84 |
||
|
9
|
9
6G8-11631-01-97
Piston Std
|
6G8-11631-01-97 |
— | ||
| replacement | |||||
|
9
|
9
6G8-11631-03-96 Piston (Std) |
6G8-11631-03-96 |
from US $83.63 |
||
|
9
|
9
6G8-11635-01-00
Piston (0.25Mm O/s)
0.25MM O/S; AP |
6G8-11635-01-00 |
— | ||
| replacements | |||||
|
9
|
9
6G8-11635-03-00
Piston (0.25Mm O/s)
0.25MM O/S; AP |
6G8-11635-03-00 |
— | ||
|
9
|
9
999-99999-99-00
Not Available
0.25MM O/S; AP |
999-99999-99-00 |
— | ||
|
9
|
9
6G8-11636-01-00
Piston 2 O/s 0.50
0.50MM O/S; AP |
6G8-11636-01-00 |
— | ||
| replacement | |||||
|
9
|
9
6G8-11636-03-00
Piston (0.50Mm O/s)
0.50MM O/S; AP |
6G8-11636-03-00 |
— | ||
|
10
|
10
6G8-11610-01-00
Piston Ring Set
|
6G8-11610-01-00 |
— | ||
|
10
|
10
6G8-11610-11-00
Piston Ring Set
AP |
6G8-11610-11-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
AP |
999-99999-99-00 |
— | ||
|
10
|
10
6G8-11610-21-00
Piston Ring Set
AP |
6G8-11610-21-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
AP |
999-99999-99-00 |
— | ||
|
11
|
11
634-11633-00-00 Pin, Piston |
634-11633-00-00 |
from US $7.42 |
||
|
12
|
12
93450-15023-00 Circlip |
93450-15023-00 |
from US $1.70 |
||
