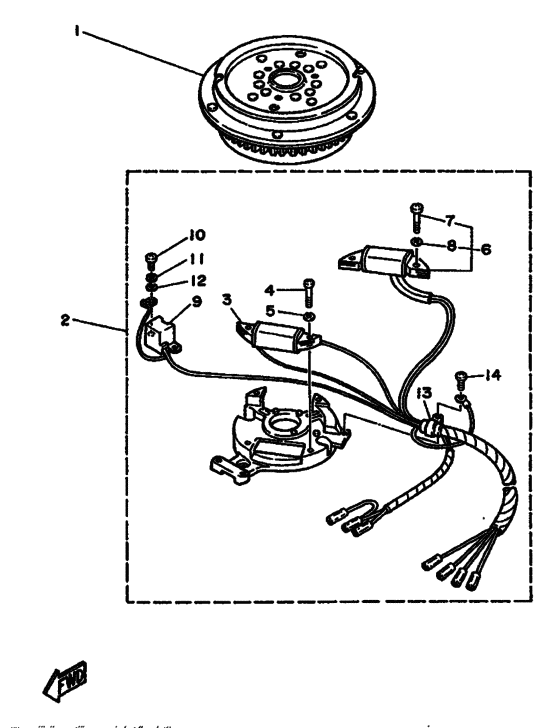

Generator Diagram Yamaha F8 M(E)HS/L
- Year
- 1990
- Model
- F8B
- Model code
- 6J7
- Year
- 1990
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 8
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6G8-85550-K0-00
Rotor Assy
|
6G8-85550-K0-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
6G9-85560-F0-00
Base Assy
|
6G9-85560-F0-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
6G8-85520-00-00
Coil, Charge
|
6G8-85520-00-00 |
— | ||
|
4
|
4
98503-05025-00 Screw, Pan Head |
98503-05025-00 |
from US $1.35 |
||
| replacement | |||||
|
4
|
4
985-80055-25-00 Screw, Pan Head |
985-80055-25-00 |
from US $1.33 |
||
|
5
|
5
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
6
|
6
6G9-81303-F0-00
Lighting Coil Assembly
|
6G9-81303-F0-00 |
— | ||
|
7
|
7
98503-05025-00 Screw, Pan Head |
98503-05025-00 |
from US $1.35 |
||
| replacement | |||||
|
7
|
7
985-80055-25-00 Screw, Pan Head |
985-80055-25-00 |
from US $1.33 |
||
|
8
|
8
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
9
|
9
6G8-85580-00-00
Coil, Pulser
|
6G8-85580-00-00 |
— | ||
| replacement | |||||
|
9
|
9
6G8-85580-01-00
Coil Pulser
|
6G8-85580-01-00 |
— | ||
|
10
|
10
98580-05012-00 Screw, Pan Head |
98580-05012-00 |
from US $2.13 |
||
|
11
|
11
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
12
|
12
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
13
|
13
445-81328-20-00 Clamp |
445-81328-20-00 |
from US $3.54 |
||
|
14
|
14
98580-04008-00 Screw, Pan Head (713)(F8BEM/F9.9BEM MODEL) |
98580-04008-00 |
from US $1.36 |
||
