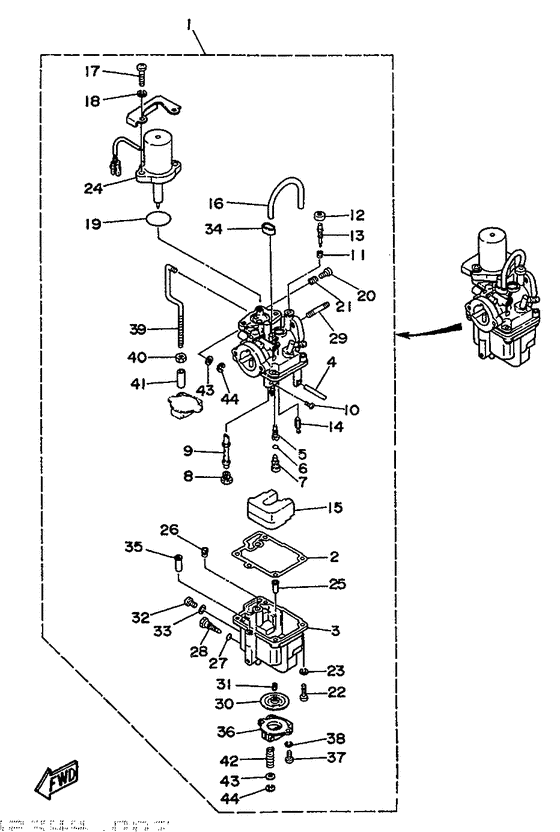

Carburetor Diagram Yamaha F8 M(E)HS/L
- Year
- 1993
- Model
- F8B
- Model code
- 6J7
- Year
- 1993
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 8
- Sales region
- Europe (General) (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6J6-14301-04-00
Carburetor Assy 1
Ur |
6J6-14301-04-00 |
— | ||
| replacement | |||||
|
01
|
01
6J6-14301-06-00
Carburetor Assy 1
Ur |
6J6-14301-06-00 |
— | ||
|
01
|
01
6J6-14301-06-00
Carburetor Assy 1
Ur |
6J6-14301-06-00 |
— | ||
|
01
|
01
6G9-14301-03-00
Carburetor Assembly 1
Ur |
6G9-14301-03-00 |
— | ||
| replacement | |||||
|
01
|
01
6G9-14301-05-00
Carburetor Assembly 1
Ur |
6G9-14301-05-00 |
— | ||
|
01
|
01
6G9-14301-04-00
Carburetor Assy 1
Ur |
6G9-14301-04-00 |
— | ||
| replacement | |||||
|
01
|
01
6G9-14301-05-00
Carburetor Assembly 1
Ur |
6G9-14301-05-00 |
— | ||
|
01
|
01
6G9-14301-05-00
Carburetor Assembly 1
Ur |
6G9-14301-05-00 |
— | ||
|
02
|
02
6G8-14384-01-00 Gasket, Float ChamberUr |
6G8-14384-01-00 |
from US $7.89 |
||
|
03
|
03
6G8-14381-01-00 Body, Float Chamber |
6G8-14381-01-00 |
US $153.38 |
||
| replacement | |||||
|
03
|
03
6G8-14381-02-00 Body, Float Chamber |
6G8-14381-02-00 |
US $206.80 |
||
|
03
|
03
6G8-14381-02-00 Body, Float ChamberUr |
6G8-14381-02-00 |
US $206.80 |
||
|
04
|
04
647-14386-10-00 Pin, Float |
647-14386-10-00 |
from US $2.88 |
||
|
05
|
05
6G8-14342-22-00
Jet, Pilot (# 44)
Ur |
6G8-14342-22-00 |
— | ||
|
05
|
05
6G8-14342-24-00
Jet, Pilot (#48)
Ur |
6G8-14342-24-00 |
— | ||
|
06
|
06
654-14198-00-00 Gasket |
654-14198-00-00 |
from US $4.53 |
||
|
07
|
07
6G8-14345-00-00 Plug, Main Nozzle |
6G8-14345-00-00 |
from US $2.29 |
||
|
08
|
08
648-14343-42-00
Jet, Main (# 84)
Ur |
648-14343-42-00 |
— | ||
|
08
|
08
648-14343-43-00 Jet, Main (#86)Ur |
648-14343-43-00 |
from US $13.66 |
||
|
09
|
09
6G8-14341-10-00
Nozzle, Main
Ur |
6G8-14341-10-00 |
— | ||
|
09
|
09
6G8-14341-20-00 Nozzle, MainUr |
6G8-14341-20-00 |
US $21.20 |
||
|
10
|
10
6G8-14216-00-00 Screw |
6G8-14216-00-00 |
from US $2.83 |
||
|
11
|
11
647-14334-00-00 Spring, Air Adjusting |
647-14334-00-00 |
from US $2.97 |
||
|
12
|
12
6G8-14997-00-00
Seal
|
6G8-14997-00-00 |
— | ||
|
13
|
13
6G8-14323-00-00 Screw, Air Adjusting |
6G8-14323-00-00 |
from US $34.85 |
||
|
14
|
14
6G8-14392-00-00 Valve, Needle |
6G8-14392-00-00 |
from US $11.42 |
||
|
15
|
15
6G8-14385-00-00 Float |
6G8-14385-00-00 |
from US $31.74 |
||
|
16
|
16
6G8-14197-01-00 Pipe |
6G8-14197-01-00 |
from US $8.50 |
||
|
17
|
17
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
17
|
17
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
18
|
18
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
18
|
18
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
19
|
19
1HV-14147-00-00 O-Ring |
1HV-14147-00-00 |
from US $9.92 |
||
|
20
|
20
985-03040-14-00
Screw, Pan Head
|
985-03040-14-00 |
— | ||
| replacement | |||||
|
20
|
20
98580-04014-00 Screw, Pan Head |
98580-04014-00 |
from US $1.42 |
||
|
21
|
21
646-14212-01-00 Spring, Pilot Adjusting |
646-14212-01-00 |
from US $4.11 |
||
|
22
|
22
985-03040-14-00
Screw, Pan Head
|
985-03040-14-00 |
— | ||
| replacement | |||||
|
22
|
22
98580-04014-00 Screw, Pan Head |
98580-04014-00 |
from US $1.42 |
||
|
23
|
23
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
24
|
24
6G8-1410A-00-00 Starter SetUr |
6G8-1410A-00-00 |
US $218.29 |
||
| replacement | |||||
|
24
|
24
6G8-1410A-01-00 Starter SetUr |
6G8-1410A-01-00 |
from US $153.59 |
||
|
24
|
24
6G8-1410A-01-00 Starter SetUr |
6G8-1410A-01-00 |
from US $153.59 |
||
|
25
|
25
6G8-14827-00-00 Filter |
6G8-14827-00-00 |
from US $6.60 |
||
|
26
|
26
6A4-14344-24-00
Jet, Starter (#48) (# 48)
Ur |
6A4-14344-24-00 |
— | ||
| replacement | |||||
|
26
|
26
999-99999-99-00
Not Available
Ur |
999-99999-99-00 |
— | ||
|
26
|
26
6A4-14344-25-00
Jet, Starter (# 50)
Ur |
6A4-14344-25-00 |
— | ||
|
26
|
26
6A4-14344-30-00
Jet, Starter (# 60)
Ur |
6A4-14344-30-00 |
— | ||
|
27
|
27
6Y1-14397-00-00
O-Ring
|
6Y1-14397-00-00 |
— | ||
|
28
|
28
6G8-14383-00-00 Screw, Drain |
6G8-14383-00-00 |
from US $14.21 |
||
|
29
|
29
90116-06M26-00 Bolt, Stud |
90116-06M26-00 |
US $2.50 |
||
|
30
|
30
6G8-14368-01-00 Diaphragm Assy 1 |
6G8-14368-01-00 |
US $61.34 |
||
| replacement | |||||
|
30
|
30
6G8-14368-02-00 Diaphragm Assembly |
6G8-14368-02-00 |
from US $58.96 |
||
|
31
|
31
6G8-14275-00-00 SpringUr |
6G8-14275-00-00 |
from US $11.23 |
||
|
31
|
31
6G8-14275-01-00 SpringUr |
6G8-14275-01-00 |
from US $10.77 |
||
|
32
|
32
97890-05006-00 Screw, Pan Head |
97890-05006-00 |
from US $1.56 |
||
| replacement | |||||
|
32
|
32
98580-05006-00 Screw, Pan Head |
98580-05006-00 |
from US $1.56 |
||
|
33
|
33
646-14198-01-00 Gasket |
646-14198-01-00 |
from US $3.26 |
||
|
34
|
34
6G8-14389-00-00
Nipple Assy
|
6G8-14389-00-00 |
— | ||
|
35
|
35
6G8-14217-00-00 Valve, ChokeUr |
6G8-14217-00-00 |
from US $18.02 |
||
| replacement | |||||
|
35
|
35
6G8-14217-01-00 Valve, ChokeUr |
6G8-14217-01-00 |
US $58.46 |
||
|
35
|
35
6G8-14217-01-00 Valve, ChokeUr |
6G8-14217-01-00 |
US $58.46 |
||
|
36
|
36
6G8-14293-02-00 Cover 1Ur |
6G8-14293-02-00 |
US $84.94 |
||
| replacement | |||||
|
36
|
36
6G8-14293-03-00
Cover 1
Ur |
6G8-14293-03-00 |
— | ||
|
36
|
36
6G8-14293-03-00
Cover 1
Ur |
6G8-14293-03-00 |
— | ||
|
37
|
37
985-80040-10-00 Screw, Pan Head |
985-80040-10-00 |
from US $1.07 |
||
|
38
|
38
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
39
|
39
6G8-14379-00-00 Rod, Starter |
6G8-14379-00-00 |
from US $4.99 |
||
|
40
|
40
98813-03100-00 Nut |
98813-03100-00 |
US $2.20 |
||
|
41
|
41
6G8-14229-00-00 Shaft, Choke |
6G8-14229-00-00 |
from US $46.75 |
||
|
42
|
42
6G8-14286-01-00
Spring
|
6G8-14286-01-00 |
— | ||
|
43
|
43
6G8-14357-00-00 Washer, Plain |
6G8-14357-00-00 |
US $20.90 |
||
|
44
|
44
389-14137-00-00 Clip |
389-14137-00-00 |
from US $4.11 |
||
