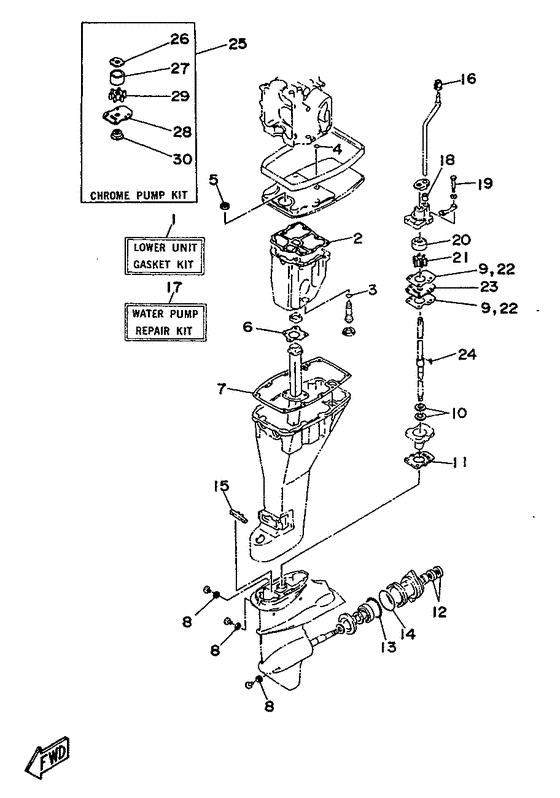

Repair kit 2 Diagram Yamaha F8 M(E)HS/L
- Year
- 1994
- Model
- F8B
- Model code
- 6J7
- Year
- 1994
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 8
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6G9-W0001-24-00 Lower Unit Gasket Kit |
6G9-W0001-24-00 |
US $91.29 |
||
| replacement | |||||
|
01
|
01
6G9-W0001-C4-00 Gasket Kit, Lower Unit |
6G9-W0001-C4-00 |
US $91.29 |
||
|
02
|
02
6G8-15312-A1-00 Gasket, Oil Pan |
6G8-15312-A1-00 |
from US $27.08 |
||
|
03
|
03
93210-16M64-00 O-Ring |
93210-16M64-00 |
US $1.42 |
||
| replacement | |||||
|
03
|
03
932-10167-72-00 O-Ring |
932-10167-72-00 |
from US $1.52 |
||
|
04
|
04
93210-08M60-00 O-Ring |
93210-08M60-00 |
from US $2.55 |
||
|
05
|
05
931-0113M-27-00 OIL SEAL. |
931-0113M-27-00 |
from US $10.20 |
||
|
06
|
06
6G8-41133-A0-00 Gasket, Exhaust Manifold 1 |
6G8-41133-A0-00 |
from US $9.63 |
||
|
07
|
07
6G8-45113-A0-00 Gasket,upper Casing |
6G8-45113-A0-00 |
from US $13.74 |
||
|
08
|
08
904-30080-20-00 Gasket |
904-30080-20-00 |
from US $1.52 |
||
| replacement | |||||
|
08
|
08
90430-08003-00 Gasket |
90430-08003-00 |
from US $1.36 |
||
|
09
|
09
682-44315-A0-00 Gasket, Water Pump |
682-44315-A0-00 |
from US $2.36 |
||
|
10
|
10
93101-20048-00 Oil Seal |
93101-20048-00 |
from US $6.40 |
||
| replacement | |||||
|
10
|
10
93102-20484-00 Oil Seal |
93102-20484-00 |
from US $4.38 |
||
|
11
|
11
683-45315-A0-00 Packing, Lower Casing |
683-45315-A0-00 |
from US $5.81 |
||
|
12
|
12
931-01170-54-00 Oil Seal |
931-01170-54-00 |
from US $9.10 |
||
|
13
|
13
932-1057M-09-00 O-Ring |
932-1057M-09-00 |
from US $3.04 |
||
|
14
|
14
93210-56M80-00 O-Ring |
93210-56M80-00 |
from US $3.89 |
||
|
15
|
15
682-45375-01-00 Damper, Seal |
682-45375-01-00 |
US $4.68 |
||
|
16
|
16
626-44365-01-00 Damper, Water Seal 1 |
626-44365-01-00 |
US $3.54 |
||
|
17
|
17
682-W0078-01-00
Water Pump Repair Kit
|
682-W0078-01-00 |
— | ||
| replacement | |||||
|
17
|
17
682-W0078-A1-00 Water Pump Repair Kit |
682-W0078-A1-00 |
from US $71.39 |
||
|
18
|
18
682-44365-00-00 Damper, Water Seal 1 |
682-44365-00-00 |
US $3.54 |
||
|
19
|
19
97095-06040-00 Bolt |
97095-06040-00 |
from US $1.39 |
||
|
20
|
20
682-44322-00-00 Insert, Cartridge |
682-44322-00-00 |
from US $15.50 |
||
|
21
|
21
682-44352-01-00
Impeller
|
682-44352-01-00 |
— | ||
| replacement | |||||
|
21
|
21
682-44352-03-00 Impeller |
682-44352-03-00 |
from US $22.56 |
||
|
22
|
22
682-44315-A0-00 Gasket, Water Pump |
682-44315-A0-00 |
from US $2.36 |
||
|
23
|
23
682-44323-00-00 Outer Plate, Cartridge |
682-44323-00-00 |
from US $10.42 |
||
|
24
|
24
90280-03024-00 Key, Woodruff |
90280-03024-00 |
from US $6.40 |
||
|
25
|
25
682-W0078-0A-00
Chrome Pump Kit
|
682-W0078-0A-00 |
— | ||
| replacements | |||||
|
25
|
25
682-W0078-0A-KT
Ekt Water Pump Repair Kit, Chr
|
682-W0078-0A-KT |
— | ||
|
25
|
25
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
26
|
26
682-44321-40-00 Inner Plate, Cartridge |
682-44321-40-00 |
from US $21.95 |
||
|
27
|
27
682-44322-40-00 Insert, Cartridge |
682-44322-40-00 |
from US $35.33 |
||
|
28
|
28
682-44323-40-00 Outer Plate, Cartridge |
682-44323-40-00 |
from US $32.30 |
||
|
29
|
29
682-44352-01-00
Impeller
|
682-44352-01-00 |
— | ||
| replacement | |||||
|
29
|
29
682-44352-03-00 Impeller |
682-44352-03-00 |
from US $22.56 |
||
|
30
|
30
682-45344-00-00 Cover, Oil Seal |
682-45344-00-00 |
from US $8.50 |
||
