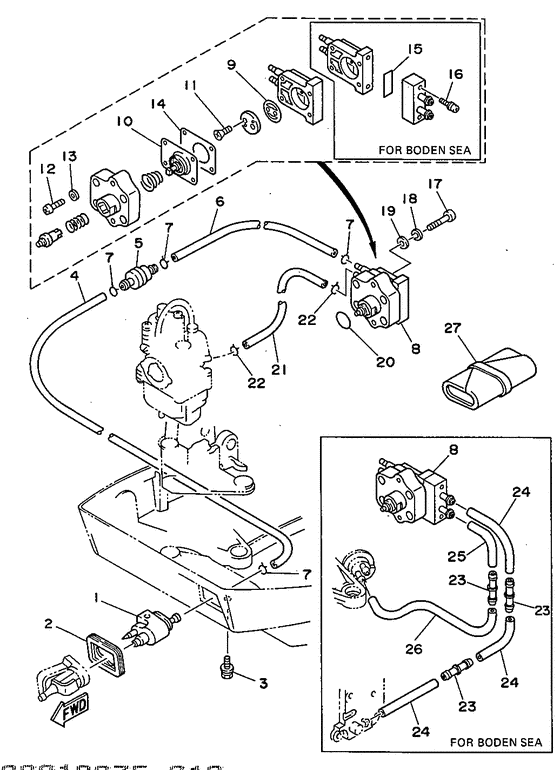

Fuel Diagram Yamaha F8 M(E)HS/L
- Year
- 1997
- Model
- F8B
- Model code
- 6J7
- Year
- 1997
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 8
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6G1-24304-02-00 Fuel Pipe Joint Comp. 1 |
6G1-24304-02-00 |
US $29.47 |
||
| replacements | |||||
|
01
|
01
6G1-24304-10-00 Fuel Pipe Joint Comp. 1 |
6G1-24304-10-00 |
US $32.74 |
||
|
01
|
01
6G1-24304-11-00 FUEL PIPE JOINT COMP 1 |
6G1-24304-11-00 |
from US $26.03 |
||
|
02
|
02
6G8-24329-00-00 Seal |
6G8-24329-00-00 |
from US $2.54 |
||
|
03
|
03
975-95065-20-00
Bolt, With Washer
|
975-95065-20-00 |
— | ||
| replacements | |||||
|
03
|
03
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
03
|
03
97E95-06520-00 Bolt, Hexagon W/w De |
97E95-06520-00 |
from US $1.07 |
||
|
04
|
04
6G8-24311-00-00 Pipe, Fuel 1 |
6G8-24311-00-00 |
from US $5.98 |
||
|
05
|
05
646-24251-02-00 Strainer 1 |
646-24251-02-00 |
from US $14.45 |
||
|
06
|
06
904-45090-78-00
Hose (L420)
|
904-45090-78-00 |
— | ||
| replacements | |||||
|
06
|
06
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $5.40 |
||
|
06
|
06
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $7.76 |
||
|
07
|
07
90467-08004-00 Clip |
90467-08004-00 |
from US $1.81 |
||
|
08
|
08
6G8-24410-03-00 Fuel Pump AssyUr std |
6G8-24410-03-00 |
US $194.94 |
||
| replacement | |||||
|
08
|
08
999-99032-73-00 Fuel Pump AssyUr std |
999-99032-73-00 |
from US $148.73 |
||
|
08
|
08
6G8-24410-E0-00 Fuel Pump AssyUr for boden sea |
6G8-24410-E0-00 |
US $99.11 |
||
| replacement | |||||
|
08
|
08
6G8-24410-E1-00
Fuel Pump Assy
Ur for boden sea |
6G8-24410-E1-00 |
— | ||
|
09
|
09
6G8-24421-00-00 Valve, Check |
6G8-24421-00-00 |
US $19.27 |
||
| replacement | |||||
|
09
|
09
6G8-24421-10-00 Valve, Check |
6G8-24421-10-00 |
from US $19.27 |
||
|
10
|
10
6G8-24411-02-00 Diaphragm |
6G8-24411-02-00 |
from US $27.54 |
||
|
11
|
11
98780-03008-00 Screw, Flat Head |
98780-03008-00 |
from US $2.55 |
||
|
12
|
12
98580-04014-00 Screw, Pan Head |
98580-04014-00 |
from US $1.42 |
||
|
13
|
13
92990-04200-00 Washer |
92990-04200-00 |
from US $1.21 |
||
|
14
|
14
6G8-24471-00-00 Diaphragm |
6G8-24471-00-00 |
from US $13.46 |
||
|
15
|
15
6G8-24329-E0-00
Seal
For boden sea |
6G8-24329-E0-00 |
— | ||
|
16
|
16
677-24444-01-00 ScrewFor boden sea |
677-24444-01-00 |
from US $3.38 |
||
| replacement | |||||
|
16
|
16
677-24444-09-00 ScrewFor boden sea |
677-24444-09-00 |
from US $2.94 |
||
|
17
|
17
98580-06025-00 Screw, Pan Head |
98580-06025-00 |
US $1.07 |
||
| replacement | |||||
|
17
|
17
97885-06025-00 Screw, Pan Head |
97885-06025-00 |
from US $1.07 |
||
|
18
|
18
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
19
|
19
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
20
|
20
93210-20M65-00 1081 O-Ring |
93210-20M65-00 |
from US $4.39 |
||
| replacement | |||||
|
20
|
20
93210-20801-00 O-Ring |
93210-20801-00 |
from US $3.02 |
||
|
21
|
21
90445-093J2-00 Hose (L420) |
90445-093J2-00 |
from US $6.52 |
||
| replacement | |||||
|
21
|
21
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $5.40 |
||
|
22
|
22
90467-08004-00 Clip |
90467-08004-00 |
from US $1.81 |
||
|
23
|
23
6G8-24376-00-00 Pipe, Joint 1For boden sea |
6G8-24376-00-00 |
from US $4.53 |
||
|
24
|
24
904-45090-78-00
Hose (L420)
For boden sea |
904-45090-78-00 |
— | ||
| replacements | |||||
|
24
|
24
904-45092-K1-00 Hose (L420)For boden sea |
904-45092-K1-00 |
from US $5.40 |
||
|
24
|
24
904-45090-F6-00 Hose (L1500)For boden sea |
904-45090-F6-00 |
from US $7.76 |
||
|
25
|
25
6H4-24312-00-00 Pipe 2For boden sea |
6H4-24312-00-00 |
US $9.78 |
||
| replacement | |||||
|
25
|
25
6A4-24312-00-00 Pipe, Fuel 2For boden sea |
6A4-24312-00-00 |
from US $10.96 |
||
|
26
|
26
90445-09M00-00 Hose (L180)For boden sea |
90445-09M00-00 |
from US $4.11 |
||
| replacement | |||||
|
26
|
26
90445-094K7-00 Hose (L180)For boden sea |
90445-094K7-00 |
from US $4.11 |
||
|
27
|
27
676-W2810-01-00 Tool Kit |
676-W2810-01-00 |
US $40.76 |
||
| replacement | |||||
|
27
|
27
676-W2810-02-00 Tool Kit |
676-W2810-02-00 |
US $56.09 |
||
