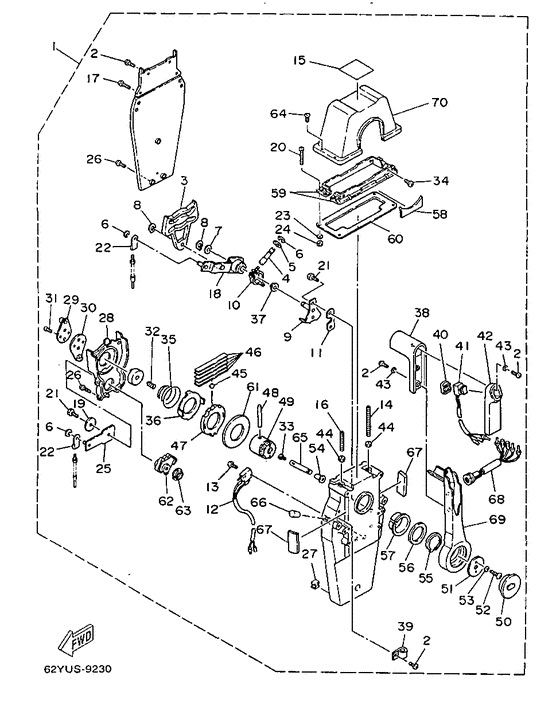

Remote control assy 2 Diagram Yamaha F80 ETL/X
- Year
- 1999
- Model
- F80A
- Model code
- 67G
- Year
- 1999
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 80
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
704-48205-13-00 Remote Control Assy, Sng BinnAp with pt/t sw. |
704-48205-13-00 |
US $583.44 |
||
| replacements | |||||
|
01
|
01
704-48205-P1-00 Remote Control Assy (Right)Ap with pt/t sw. |
704-48205-P1-00 |
US $583.44 |
||
|
01
|
01
704-48205-B1-00 Remote Control AssyAp with pt/t sw. |
704-48205-B1-00 |
US $583.44 |
||
|
01
|
01
704-48205-R0-00 CONTROL BINN SINGLEAp with pt/t sw. |
704-48205-R0-00 |
US $583.44 |
||
|
01
|
01
704-48205-R1-00 Control Binn Single (Chrome)Ap with pt/t sw. |
704-48205-R1-00 |
US $583.44 |
||
|
01
|
01
704-48205-R2-00 REMOTE CONTROL ASSY RHAp with pt/t sw. |
704-48205-R2-00 |
from US $470.12 |
||
|
02
|
02
985-80050-16-00
Screw, Pan Head
|
985-80050-16-00 |
— | ||
| replacement | |||||
|
02
|
02
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
03
|
03
EL8-48251-00-00 Plate,cam |
EL8-48251-00-00 |
from US $18.25 |
||
|
04
|
04
704-48265-00-00 Shaft, Friction |
704-48265-00-00 |
from US $5.24 |
||
|
05
|
05
701-48246-00-00 Spacer |
701-48246-00-00 |
from US $1.56 |
||
|
06
|
06
93430-06024-00 Circlip |
93430-06024-00 |
from US $2.13 |
||
|
07
|
07
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.07 |
||
|
08
|
08
EL8-48259-00-00 Circlip 1 |
EL8-48259-00-00 |
from US $1.80 |
||
|
09
|
09
704-48262-00-00 Shaft, Throttle |
704-48262-00-00 |
US $15.44 |
||
|
10
|
10
704-48264-00-00 Throttle, Friction |
704-48264-00-00 |
from US $11.76 |
||
|
11
|
11
704-48266-00-00 Spacer |
704-48266-00-00 |
US $5.38 |
||
|
12
|
12
704-82540-00-00 Neutral Switch Assy |
704-82540-00-00 |
from US $16.72 |
||
|
13
|
13
98580-03014-00 Screw |
98580-03014-00 |
from US $1.98 |
||
|
14
|
14
EL8-48281-00-00 Screw 1 |
EL8-48281-00-00 |
from US $7.08 |
||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
704-48215-00-00 Graphic |
704-48215-00-00 |
from US $14.31 |
||
|
16
|
16
704-48281-00-00 Screw 1 |
704-48281-00-00 |
from US $7.08 |
||
|
17
|
17
985-80055-25-00 Screw, Pan Head |
985-80055-25-00 |
from US $1.33 |
||
|
18
|
18
704-48261-00-00 Arm, Throttle |
704-48261-00-00 |
from US $33.86 |
||
|
19
|
19
EL8-48191-00-00 Washer 1 |
EL8-48191-00-00 |
from US $4.11 |
||
|
20
|
20
98580-05540-00 Screw,panhead (Eg9) |
98580-05540-00 |
from US $3.12 |
||
|
21
|
21
97080-06018-00 Bolt (Fj0) |
97080-06018-00 |
from US $4.11 |
||
|
22
|
22
703-48345-01-00 Cable End, Remote Control 2 |
703-48345-01-00 |
from US $4.39 |
||
|
23
|
23
704-48287-00-00 Washer |
704-48287-00-00 |
from US $1.70 |
||
|
24
|
24
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
25
|
25
EL5-48271-00-00
Arm, Shift
|
EL5-48271-00-00 |
— | ||
|
26
|
26
EL8-48127-00-00 Screw 1 |
EL8-48127-00-00 |
from US $2.13 |
||
|
27
|
27
703-48358-00-00 Anchor, Cable |
703-48358-00-00 |
US $3.26 |
||
|
28
|
28
EL8-48231-00-00 Housing, Gear |
EL8-48231-00-00 |
from US $21.82 |
||
|
29
|
29
EL8-48241-00-00 Arm, Drive |
EL8-48241-00-00 |
from US $19.41 |
||
|
30
|
30
EL8-48254-00-00 Stopper, Throttle Adjusting |
EL8-48254-00-00 |
from US $7.64 |
||
|
31
|
31
98780-06020-00 Screw Flat Head |
98780-06020-00 |
from US $3.40 |
||
|
32
|
32
EL8-48158-00-00 Spring 1 |
EL8-48158-00-00 |
US $2.13 |
||
|
33
|
33
98580-04006-00 Screw, Pan Head |
98580-04006-00 |
from US $1.56 |
||
|
34
|
34
98780-05018-00 Screw, Flat Head |
98780-05018-00 |
from US $1.56 |
||
|
35
|
35
EL8-48244-00-00 Spring, Free Accel |
EL8-48244-00-00 |
from US $9.78 |
||
|
36
|
36
EL8-48245-00-00 Plate, Lock |
EL8-48245-00-00 |
from US $6.38 |
||
|
37
|
37
703-48263-00-00 Bushing |
703-48263-00-00 |
US $1.32 |
||
|
38
|
38
704-48222-00-00 Grip, Control Lever |
704-48222-00-00 |
from US $11.37 |
||
|
39
|
39
704-82594-00-00 Clamp |
704-82594-00-00 |
from US $6.38 |
||
|
40
|
40
704-48228-00-00 Holder, Switch |
704-48228-00-00 |
from US $5.95 |
||
|
41
|
41
704-82563-A0-00 Trim & Tilt Switch |
704-82563-A0-00 |
US $101.55 |
||
| replacement | |||||
|
41
|
41
704-82563-01-00 Trim & Tilt Switch Assy |
704-82563-01-00 |
from US $101.55 |
||
|
42
|
42
704-48229-00-00 Grip, Control Lever |
704-48229-00-00 |
from US $12.75 |
||
|
43
|
43
92990-05300-00 Washer, Internal Tooth |
92990-05300-00 |
from US $1.56 |
||
|
44
|
44
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
45
|
45
701-48248-00-00 Roller, Free Accel |
701-48248-00-00 |
from US $1.98 |
||
|
46
|
46
703-48238-00-00 Spring, Detent |
703-48238-00-00 |
from US $1.56 |
||
|
47
|
47
EL8-48232-00-00 Gear 1 |
EL8-48232-00-00 |
from US $25.79 |
||
|
48
|
48
EL8-48164-00-00
Pin 2
|
EL8-48164-00-00 |
— | ||
| replacement | |||||
|
48
|
48
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
49
|
49
704-48242-00-00 Shaft, Drive |
704-48242-00-00 |
from US $27.77 |
||
|
50
|
50
704-48225-00-00 Cover |
704-48225-00-00 |
US $5.95 |
||
|
51
|
51
704-48192-00-00 Washer 2 |
704-48192-00-00 |
from US $6.23 |
||
|
52
|
52
978-90060-18-00
Screw, Pan Head
|
978-90060-18-00 |
— | ||
| replacement | |||||
|
52
|
52
97880-06018-00 Screw, Pan Head |
97880-06018-00 |
from US $3.26 |
||
|
53
|
53
92990-06300-00 Washer, Internal Tooth |
92990-06300-00 |
from US $1.84 |
||
|
54
|
54
702-48263-00-00 Bushing |
702-48263-00-00 |
from US $4.53 |
||
| replacement | |||||
|
54
|
54
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
55
|
55
EL8-48279-00-00 Circlip 2 |
EL8-48279-00-00 |
from US $7.65 |
||
|
56
|
56
704-48193-00-00 Washer 3 |
704-48193-00-00 |
from US $4.39 |
||
|
57
|
57
EL8-48234-00-00 Bushing 1 |
EL8-48234-00-00 |
from US $2.69 |
||
|
58
|
58
704-48219-00-00 Cover, Lead |
704-48219-00-00 |
from US $5.67 |
||
|
59
|
59
704-48144-00-00 Plate, Stopper 2 |
704-48144-00-00 |
from US $18.28 |
||
|
60
|
60
704-48176-00-00 Grommet |
704-48176-00-00 |
US $3.12 |
||
|
61
|
61
703-48192-00-00 Washer 2 |
703-48192-00-00 |
from US $1.70 |
||
|
62
|
62
EL8-48233-00-00 Gear 2 |
EL8-48233-00-00 |
from US $13.88 |
||
|
63
|
63
703-48235-00-00 Bushing |
703-48235-00-00 |
from US $3.54 |
||
|
64
|
64
704-48282-00-00 Screw |
704-48282-00-00 |
from US $1.13 |
||
|
65
|
65
EL8-48153-10-00 Shaft, Free Accel |
EL8-48153-10-00 |
from US $12.75 |
||
|
66
|
66
704-48166-00-00 Plug |
704-48166-00-00 |
from US $3.26 |
||
|
67
|
67
704-48284-00-00 Grommet |
704-48284-00-00 |
from US $2.27 |
||
|
68
|
68
704-82541-10-00 Wire, Lead |
704-82541-10-00 |
from US $20.26 |
||
|
69
|
69
704-48221-00-00 Lever, Control |
704-48221-00-00 |
from US $120.61 |
||
|
70
|
70
704-48119-00-00 Cover |
704-48119-00-00 |
from US $24.23 |
||
