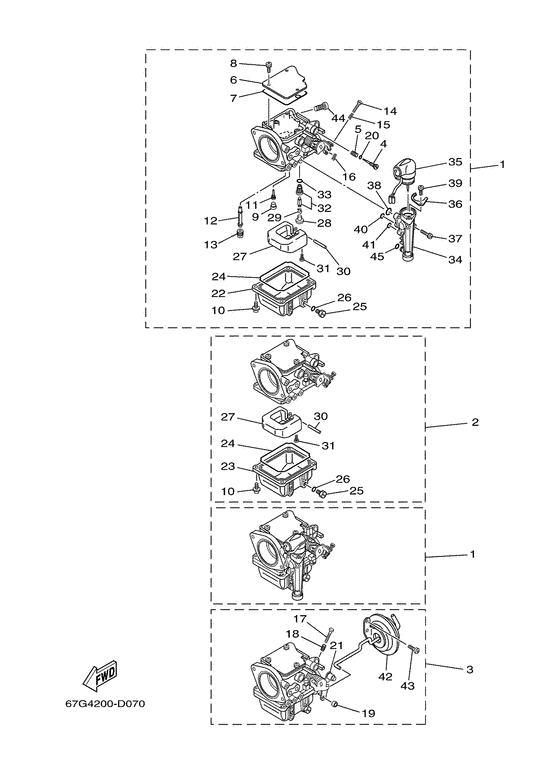

Carburetor 1 Diagram Yamaha F80 ETL/X
- Year
- 2007
- Model
- F80A
- Model code
- 67G
- Year
- 2007
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 80
- Sales region
- Switzerland (040)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
67G-14901-50-00
Carburetor Assy 1
#1,3 |
67G-14901-50-00 |
— | ||
|
02
|
02
67G-14902-50-00
Carburetor Assy 2
#2 |
67G-14902-50-00 |
— | ||
|
03
|
03
67G-14904-50-00
Carburetor Assy 4
#4 |
67G-14904-50-00 |
— | ||
|
04
|
04
67F-14923-10-00 Screw, Pilot |
67F-14923-10-00 |
US $5.58 |
||
|
05
|
05
697-14555-00-00 Spring |
697-14555-00-00 |
from US $4.95 |
||
|
06
|
06
67F-14146-00-00 Plate |
67F-14146-00-00 |
from US $11.90 |
||
|
07
|
07
67F-14147-00-00 O-Ring |
67F-14147-00-00 |
from US $4.96 |
||
|
08
|
08
978-03040-10-00
Screw, Pan Head
|
978-03040-10-00 |
— | ||
| replacement | |||||
|
08
|
08
985-80040-10-00 Screw, Pan Head |
985-80040-10-00 |
from US $1.07 |
||
|
09
|
09
676-14966-00-00
Cap
|
676-14966-00-00 |
— | ||
| replacement | |||||
|
09
|
09
679-14966-00-00 Rubber Cap |
679-14966-00-00 |
from US $2.66 |
||
|
10
|
10
979-80041-14-00
Screw, With Washer
|
979-80041-14-00 |
— | ||
| replacement | |||||
|
10
|
10
98580-04014-00 Screw, Pan Head |
98580-04014-00 |
from US $1.42 |
||
|
11
|
11
67G-14948-05-00 Jet (#45) |
67G-14948-05-00 |
from US $17.57 |
||
|
12
|
12
67G-14947-00-00 Jet, Needle |
67G-14947-00-00 |
from US $44.35 |
||
|
13
|
13
67G-14943-29-00 Jet, Main (#110) |
67G-14943-29-00 |
US $16.59 |
||
|
14
|
14
67F-14567-00-00 Screw#1,2,3 |
67F-14567-00-00 |
from US $5.95 |
||
|
15
|
15
67F-14555-00-00 Spring#1,2,3 |
67F-14555-00-00 |
from US $4.68 |
||
|
16
|
16
67F-14556-00-00 Spring#1,2,3 |
67F-14556-00-00 |
from US $4.68 |
||
|
17
|
17
63V-14523-00-00 Screw, Stop#4 |
63V-14523-00-00 |
from US $5.95 |
||
|
18
|
18
90501-10326-00 Spring, Compression#4 |
90501-10326-00 |
from US $3.32 |
||
|
19
|
19
67F-14998-00-00 Bush#4 |
67F-14998-00-00 |
from US $3.97 |
||
|
20
|
20
67F-14397-00-00 O-Ring |
67F-14397-00-00 |
from US $2.27 |
||
|
21
|
21
6H2-14578-00-00 Collar#4 |
6H2-14578-00-00 |
from US $9.07 |
||
|
22
|
22
67F-14980-00-00 Body, Float Chamber#1,3 |
67F-14980-00-00 |
US $57.47 |
||
|
23
|
23
67F-14980-10-00 Body, Float Chamber#2,4 |
67F-14980-10-00 |
US $57.47 |
||
|
24
|
24
67F-14984-00-00 Gasket, Float Chamber |
67F-14984-00-00 |
from US $10.63 |
||
|
25
|
25
6H3-14992-00-00 Screw, Drain |
6H3-14992-00-00 |
from US $4.96 |
||
| replacement | |||||
|
25
|
25
6H3-14992-01-00 Screw, Drain |
6H3-14992-01-00 |
from US $6.38 |
||
|
26
|
26
93210-04230-00 O-Ring |
93210-04230-00 |
from US $1.66 |
||
|
27
|
27
6H4-14985-01-00 Float |
6H4-14985-01-00 |
from US $25.36 |
||
|
28
|
28
676-14186-00-00 Pin, Float |
676-14186-00-00 |
from US $1.66 |
||
|
29
|
29
67F-14159-00-00 Clip |
67F-14159-00-00 |
from US $7.08 |
||
|
30
|
30
6H4-14548-00-00 Pin, Float Arm |
6H4-14548-00-00 |
from US $3.97 |
||
|
31
|
31
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.21 |
||
|
32
|
32
60C-14590-02-00 Needle Valve Assy |
60C-14590-02-00 |
US $39.38 |
||
| replacement | |||||
|
32
|
32
60C-14590-03-00 NEEDLE VALVE ASSY |
60C-14590-03-00 |
from US $39.38 |
||
|
33
|
33
93210-04228-00 O-Ring |
93210-04228-00 |
from US $1.66 |
||
|
34
|
34
67F-14378-00-00 Body, Starter#1,3 |
67F-14378-00-00 |
US $116.61 |
||
|
35
|
35
67F-14380-01-00 Prime Starter Assy#1,3 |
67F-14380-01-00 |
US $222.44 |
||
| replacement | |||||
|
35
|
35
67F-14380-02-00 Prime Starter Assy#1,3 |
67F-14380-02-00 |
from US $222.44 |
||
|
36
|
36
67F-14178-00-00 Plate, Starter Lever#1,3 |
67F-14178-00-00 |
from US $13.03 |
||
|
37
|
37
67F-14592-00-00 Screw#1,3 |
67F-14592-00-00 |
from US $3.68 |
||
|
38
|
38
67F-14398-00-00 O-Ring#1,3 |
67F-14398-00-00 |
from US $2.41 |
||
|
39
|
39
67F-14565-00-00 Screw#1,3 |
67F-14565-00-00 |
from US $2.55 |
||
|
40
|
40
67F-14398-10-00 O-Ring#1,3 |
67F-14398-10-00 |
from US $1.84 |
||
|
41
|
41
67F-14398-20-00 O-Ring#1,3 |
67F-14398-20-00 |
from US $1.66 |
||
|
42
|
42
67F-14369-00-00 Diaphragm Assy 2#4 |
67F-14369-00-00 |
from US $81.65 |
||
|
43
|
43
67F-14325-00-00 Screw, Pan Head#4 |
67F-14325-00-00 |
from US $1.98 |
||
|
44
|
44
67F-14371-01-00 Element, Filter |
67F-14371-01-00 |
from US $10.91 |
||
|
45
|
45
67F-14398-30-00 O-Ring#1,3 |
67F-14398-30-00 |
from US $2.98 |
||
