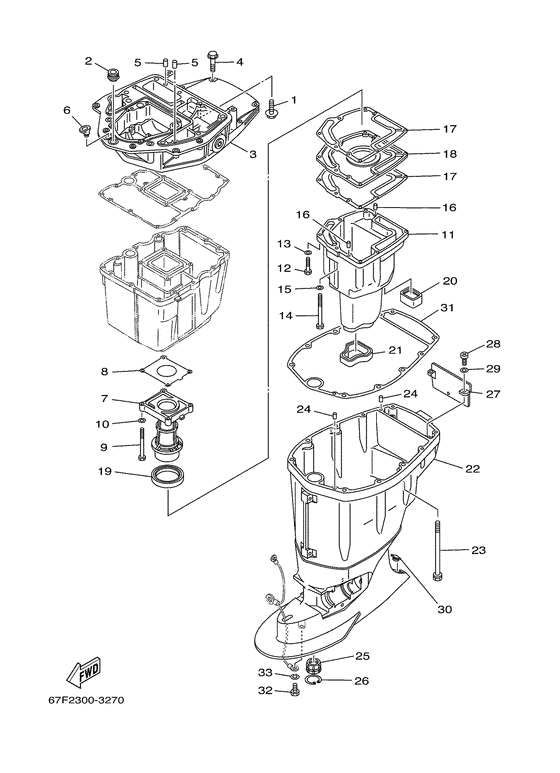

Upper casing Diagram Yamaha F80 ETL/X
- Year
- 2007
- Model
- F80A
- Model code
- 67G
- Year
- 2007
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 80
- Sales region
- Switzerland (040)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
90119-08M58-00 Bolt, With Washer |
90119-08M58-00 |
US $10.34 |
||
|
02
|
02
67F-42724-00-00 Grommet |
67F-42724-00-00 |
US $7.37 |
||
|
03
|
03
6D8-41137-00-94 Guide, Exhaust |
6D8-41137-00-94 |
US $780.12 |
||
| replacement | |||||
|
03
|
03
6D8-41137-00-CA Guide, Exhaust |
6D8-41137-00-CA |
from US $780.12 |
||
|
04
|
04
97575-08540-00 Bolt, With Washer |
97575-08540-00 |
US $5.10 |
||
| replacement | |||||
|
04
|
04
97E75-08540-00 Bolt, Hexagon W/w Deep Recess |
97E75-08540-00 |
from US $2.41 |
||
|
05
|
05
936-0816M-16-00 Pin, Dowel |
936-0816M-16-00 |
from US $4.30 |
||
|
06
|
06
6G1-42727-00-00 Grommet 4 |
6G1-42727-00-00 |
US $7.51 |
||
|
07
|
07
67F-41131-01-5B Manifold, Ext. 1 |
67F-41131-01-5B |
US $143.69 |
||
| replacement | |||||
|
07
|
07
67F-41131-01-CA Manifold, Ext. 1 |
67F-41131-01-CA |
from US $143.69 |
||
|
08
|
08
67F-41133-A1-00 Gasket, Exhaust Manifold 1 |
67F-41133-A1-00 |
from US $9.78 |
||
|
09
|
09
97075-06070-00 Bolt |
97075-06070-00 |
US $3.40 |
||
| replacement | |||||
|
09
|
09
97080-06070-00 Bolt |
97080-06070-00 |
from US $3.40 |
||
|
10
|
10
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
10
|
10
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
11
|
11
67F-14711-00-5B Muffler 1 |
67F-14711-00-5B |
US $308.10 |
||
| replacement | |||||
|
11
|
11
67F-14711-00-CA Muffler 1 |
67F-14711-00-CA |
from US $308.10 |
||
|
12
|
12
97075-06030-00 Bolt |
97075-06030-00 |
from US $2.83 |
||
| replacement | |||||
|
12
|
12
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
13
|
13
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
13
|
13
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
14
|
14
97075-06050-00 Bolt |
97075-06050-00 |
US $3.26 |
||
| replacement | |||||
|
14
|
14
970-80060-50-00 Bolt |
970-80060-50-00 |
from US $2.98 |
||
|
15
|
15
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
15
|
15
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
16
|
16
93606-19M23-00 Pin, Dowel |
93606-19M23-00 |
from US $3.69 |
||
|
17
|
17
67F-41134-A0-00 Gasket, Exhaust Manifold |
67F-41134-A0-00 |
from US $16.54 |
||
|
18
|
18
67F-45181-00-5B Plate |
67F-45181-00-5B |
US $53.33 |
||
| replacement | |||||
|
18
|
18
67F-45181-00-CA Plate |
67F-45181-00-CA |
from US $53.33 |
||
|
19
|
19
67F-41138-00-00 Seal, Ext. 1 |
67F-41138-00-00 |
from US $10.26 |
||
|
20
|
20
67F-45127-00-00 Seal |
67F-45127-00-00 |
from US $5.53 |
||
|
21
|
21
67F-45123-00-00 Gasket, Muffler |
67F-45123-00-00 |
from US $22.39 |
||
|
22
|
22
67F-45111-11-4D Casing, Upper |
67F-45111-11-4D |
US $1,275.12 |
||
| replacement | |||||
|
22
|
22
67F-45111-11-8D Casing, Upper |
67F-45111-11-8D |
from US $866.70 |
||
|
23
|
23
90119-10M08-00 Bolt, With Washer |
90119-10M08-00 |
US $18.56 |
||
|
24
|
24
936-0816M-16-00 Pin, Dowel |
936-0816M-16-00 |
from US $4.30 |
||
|
25
|
25
67F-45318-00-00 Bushing, Drive Shaft |
67F-45318-00-00 |
from US $56.65 |
||
|
26
|
26
93420-36M01-00 Circlip |
93420-36M01-00 |
from US $5.64 |
||
|
27
|
27
67F-45151-00-00 Cover, Upper Casing |
67F-45151-00-00 |
from US $11.05 |
||
|
28
|
28
97880-06016-00 Screw, Pan Head |
97880-06016-00 |
US $2.55 |
||
| replacement | |||||
|
28
|
28
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.55 |
||
|
29
|
29
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
30
|
30
67F-45155-00-00 Cap |
67F-45155-00-00 |
from US $6.52 |
||
|
31
|
31
67F-45113-00-00 Gasket, Upper Casing |
67F-45113-00-00 |
from US $25.22 |
||
|
32
|
32
97095-08016-00 Bolt |
97095-08016-00 |
US $1.28 |
||
| replacements | |||||
|
32
|
32
97D95-08016-00 Bolt, Hexagon Deep Recess |
97D95-08016-00 |
from US $1.28 |
||
|
32
|
32
97D95-08016-00 Bolt, Hexagon Deep Recess |
97D95-08016-00 |
from US $1.28 |
||
|
33
|
33
92995-08100-00 Washer, Spring |
92995-08100-00 |
from US $1.56 |
||
| replacement | |||||
|
33
|
33
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
