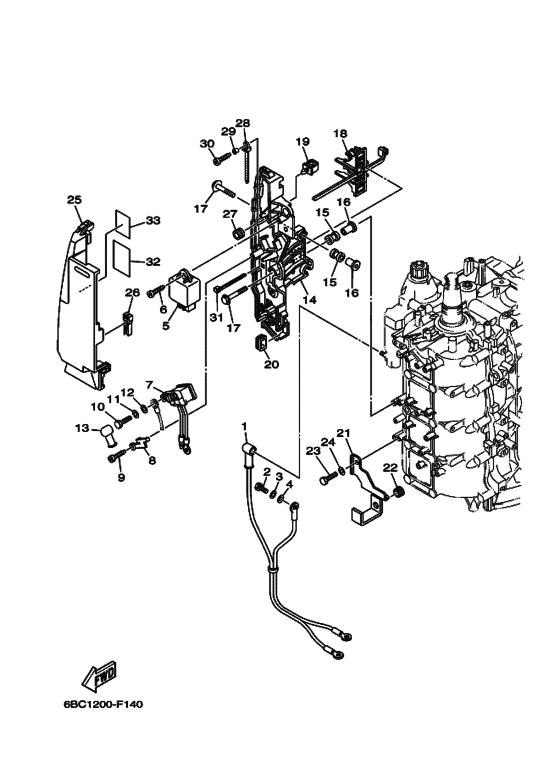

Electrical 2 Diagram Yamaha F80 EDL
- Year
- 2010
- Model
- F80C
- Model code
- 6CK2
- Year
- 2010
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 80
- Sales region
- Europe (020)
- Colour
- Dark Bluish Gray 1 (DBN1; 008D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
68V-82105-00-00 Battery Cable |
68V-82105-00-00 |
US $196.19 |
||
| replacements | |||||
|
1
|
1
68V-82105-J1-00 Battery Cable |
68V-82105-J1-00 |
US $196.19 |
||
|
1
|
1
68V-82105-J2-00 BATTERY CABLE |
68V-82105-J2-00 |
from US $196.19 |
||
|
2
|
2
97013-06020-00 Bolt |
97013-06020-00 |
from US $1.42 |
||
|
3
|
3
92903-06100-00 Washer, Spring |
92903-06100-00 |
US $0.99 |
||
| replacement | |||||
|
3
|
3
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
4
|
4
929-03066-00-00
Washer, Plate
|
929-03066-00-00 |
— | ||
| replacement | |||||
|
4
|
4
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
5
|
5
60E-81950-00-00 Relay AssySN2211 |
60E-81950-00-00 |
from US $173.90 |
||
|
6
|
6
97780-60625-00 Screw, Tapping(65J) |
97780-60625-00 |
from US $1.98 |
||
|
7
|
7
68V-8194A-00-00 Relay |
68V-8194A-00-00 |
from US $82 |
||
|
8
|
8
68V-81953-00-00 Stay, Relay |
68V-81953-00-00 |
from US $3.68 |
||
|
9
|
9
97780-60620-00 Screw, Tapping |
97780-60620-00 |
from US $2.41 |
||
| replacement | |||||
|
9
|
9
97780-60520-00 Screw, Tapping |
97780-60520-00 |
from US $1.66 |
||
|
10
|
10
970-95060-10-00
Bolt
|
970-95060-10-00 |
— | ||
| replacement | |||||
|
10
|
10
97085-06010-00 Bolt |
97085-06010-00 |
from US $1.28 |
||
|
11
|
11
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
12
|
12
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
12
|
12
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
13
|
13
6G5-82119-00-00 Cover, Lead Wire |
6G5-82119-00-00 |
US $5.53 |
||
| replacement | |||||
|
13
|
13
6G5-82119-10-00 Cover, Lead Wire |
6G5-82119-10-00 |
from US $5.53 |
||
|
14
|
14
68V-81948-02-00 Bracket |
68V-81948-02-00 |
US $45.45 |
||
| replacement | |||||
|
14
|
14
68V-81948-03-00 Bracket |
68V-81948-03-00 |
from US $45.45 |
||
|
15
|
15
6A0-82317-00-00 Damper, Ignition Coil |
6A0-82317-00-00 |
from US $4.53 |
||
| replacement | |||||
|
15
|
15
6A0-82317-01-00 DAMPER IGNITION COIL |
6A0-82317-01-00 |
from US $1.34 |
||
|
16
|
16
90387-06119-00 Collar |
90387-06119-00 |
from US $2.32 |
||
|
17
|
17
90119-06M59-00 Bolt, With Washer |
90119-06M59-00 |
US $2.83 |
||
| replacement | |||||
|
17
|
17
901-19062-89-00 BOLT WITH WASHER |
901-19062-89-00 |
from US $2.32 |
||
|
18
|
18
68V-82594-00-00 Clamp |
68V-82594-00-00 |
from US $6.38 |
||
|
19
|
19
90464-12M58-00 Clamp |
90464-12M58-00 |
from US $2.41 |
||
|
20
|
20
6D8-81518-00-00 Grommet |
6D8-81518-00-00 |
US $4.39 |
||
|
21
|
21
6D8-81528-00-00 Clamp 1 |
6D8-81528-00-00 |
US $35.23 |
||
| replacement | |||||
|
21
|
21
6D8-81528-02-00 Clamp 1 |
6D8-81528-02-00 |
from US $35.23 |
||
|
22
|
22
90480-13M24-00 Grommet |
90480-13M24-00 |
from US $4.82 |
||
|
23
|
23
97095-06014-00 Bolt |
97095-06014-00 |
US $1.56 |
||
| replacement | |||||
|
23
|
23
97D95-06014-00 Bolt, Hexagon Deep R |
97D95-06014-00 |
from US $1.07 |
||
|
24
|
24
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
24
|
24
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
25
|
25
68V-81942-03-00 Cover |
68V-81942-03-00 |
from US $43.66 |
||
|
26
|
26
67F-2812A-00-00 Puller, Fuse |
67F-2812A-00-00 |
from US $3.12 |
||
|
27
|
27
6A0-82317-00-00 Damper, Ignition Coil |
6A0-82317-00-00 |
from US $4.53 |
||
| replacement | |||||
|
27
|
27
6A0-82317-01-00 DAMPER IGNITION COIL |
6A0-82317-01-00 |
from US $1.34 |
||
|
28
|
28
90465-12M53-00 Clamp |
90465-12M53-00 |
from US $2.98 |
||
|
29
|
29
90387-06M05-00 Collar |
90387-06M05-00 |
from US $5.38 |
||
|
30
|
30
97780-60625-00 Screw, Tapping(65J) |
97780-60625-00 |
from US $1.98 |
||
|
31
|
31
90465-13M18-00 Clamp |
90465-13M18-00 |
from US $1.35 |
||
| replacements | |||||
|
31
|
31
90465-13M39-00 Clamp(6E8) |
90465-13M39-00 |
from US $1.34 |
||
|
31
|
31
90465-13M30-00 Clamp |
90465-13M30-00 |
from US $1.98 |
||
|
32
|
32
68V-81919-00-00 Graphic, Regulator |
68V-81919-00-00 |
from US $8.19 |
||
|
33
|
33
6D8-81919-00-00 Graphic, Regulator |
6D8-81919-00-00 |
from US $7.23 |
||
