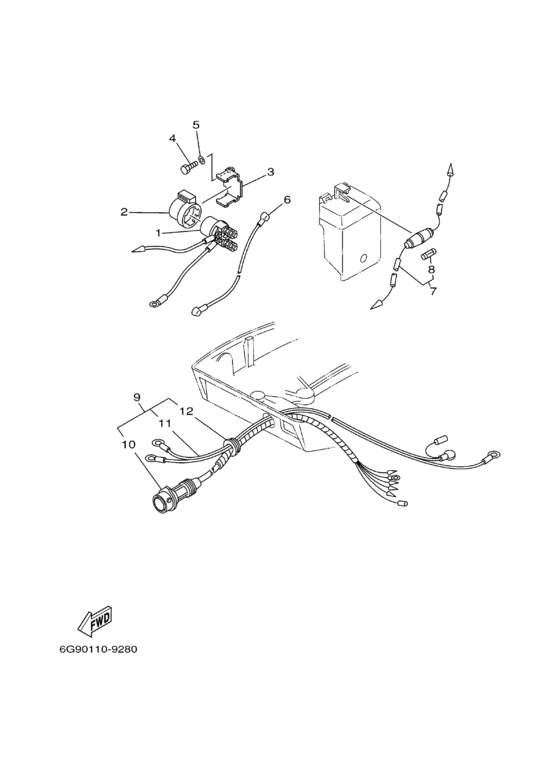

Electrical Diagram Yamaha F9.9 ES/LR
- Year
- 2000
- Model
- F9.9
- Year
- 2000
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 9.9
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6J0-81941-10-00 Starter Rely Assy |
6J0-81941-10-00 |
from US $114.81 |
||
|
2
|
2
6G1-81952-00-00 Holder, Relay |
6G1-81952-00-00 |
US $7.93 |
||
|
3
|
3
6G8-81953-00-00 Stay, Relay |
6G8-81953-00-00 |
from US $13.18 |
||
|
4
|
4
97095-06012-00 Bolt |
97095-06012-00 |
from US $2.22 |
||
| replacement | |||||
|
4
|
4
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
5
|
5
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
5
|
5
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
6
|
6
6G8-82117-00-00 Wire, Lead |
6G8-82117-00-00 |
US $20.40 |
||
| replacement | |||||
|
6
|
6
6H4-82117-00-00 Wire, Lead |
6H4-82117-00-00 |
US $20.40 |
||
|
7
|
7
6G8-82150-00-00 Fuse Holder Assy |
6G8-82150-00-00 |
US $20.83 |
||
|
8
|
8
663-82151-00-00 Fuse (12V-20A)12V-20A |
663-82151-00-00 |
US $1.81 |
||
| replacements | |||||
|
8
|
8
682-82151-01-00 Fuse (20A)12V-20A |
682-82151-01-00 |
US $1.81 |
||
|
8
|
8
682-82151-02-00 FUSE12V-20A |
682-82151-02-00 |
from US $1.81 |
||
|
9
|
9
6G8-82580-00-00 Wire Harness Assy 2 |
6G8-82580-00-00 |
US $380.30 |
||
|
10
|
10
6G8-82590-00-00
Wire Harness Assy
|
6G8-82590-00-00 |
— | ||
|
11
|
11
6G8-82105-01-00 Battery Cable |
6G8-82105-01-00 |
US $111.30 |
||
| replacement | |||||
|
11
|
11
6G8-82105-02-00 Battery Cable |
6G8-82105-02-00 |
US $111.30 |
||
|
12
|
12
6G8-42724-50-00
Grommet
|
6G8-42724-50-00 |
— | ||
