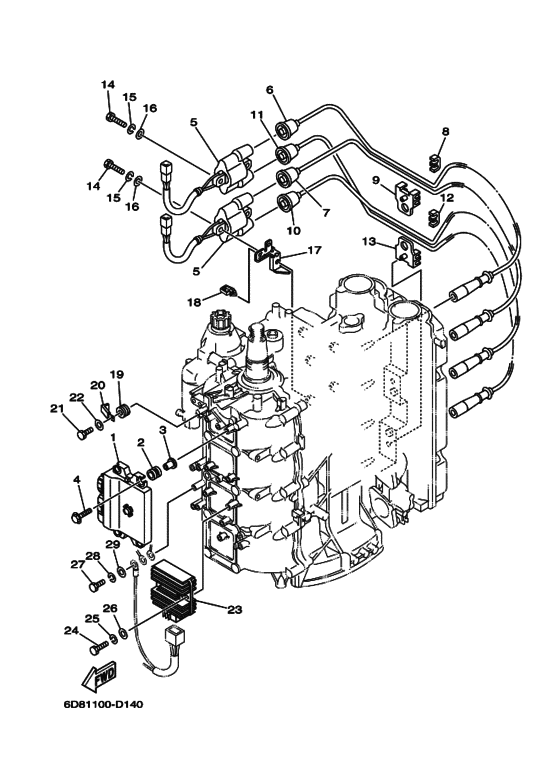

Electrical 1 Diagram Yamaha F90 ETL/X
- Year
- 2005
- Model
- F90B
- Model code
- 6D8
- Year
- 2005
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 90
- Sales region
- Japan (070)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6D8-8591A-00-00 Engine Control Unit Assyエンジンコントロールユニツトアセンブリ; |
6D8-8591A-00-00 |
US $1,221 |
||
| replacement | |||||
|
1
|
1
6D8-8591A-16-00 Engine Control Unit Assyエンジンコントロールユニツトアセンブリ; |
6D8-8591A-16-00 |
from US $1,215.59 |
||
|
2
|
2
68V-82317-00-00 Damper, Ignition Coil |
68V-82317-00-00 |
US $4.53 |
||
|
3
|
3
624-42542-00-00 Collarパイプ; |
624-42542-00-00 |
US $6.23 |
||
| replacement | |||||
|
3
|
3
90387-06119-00 Collarパイプ; |
90387-06119-00 |
from US $2.32 |
||
|
4
|
4
90119-06M59-00 Bolt, With Washer |
90119-06M59-00 |
US $2.83 |
||
| replacement | |||||
|
4
|
4
901-19062-89-00 BOLT WITH WASHER |
901-19062-89-00 |
from US $2.32 |
||
|
5
|
5
63P-82310-01-00 Ignition Coil Assy |
63P-82310-01-00 |
from US $100.44 |
||
|
6
|
6
67F-82341-00-00 Cord, High Tension 1コード，ハイテンシヨン １; ＃１ |
67F-82341-00-00 |
from US $19.13 |
||
|
7
|
7
67F-82342-00-00 Cord, High Tension 2コード，ハイテンシヨン ２; ＃２ |
67F-82342-00-00 |
from US $19.13 |
||
|
8
|
8
67F-82361-00-00 Clamp, Cordクランプ，コード; |
67F-82361-00-00 |
from US $1.70 |
||
|
9
|
9
67F-82362-00-00 Clamp, Cord 2クランプ，コード ２; |
67F-82362-00-00 |
from US $4.82 |
||
|
10
|
10
67F-82343-00-00 Cord, High Tension 3コード，ハイテンシヨン ３; ＃３ |
67F-82343-00-00 |
from US $19.13 |
||
|
11
|
11
67F-82344-00-00 Cord, High Tension 4コード，ハイテンシヨン ４; ＃４ |
67F-82344-00-00 |
from US $19.13 |
||
|
12
|
12
67F-82361-00-00 Clamp, Cordクランプ，コード; |
67F-82361-00-00 |
from US $1.70 |
||
|
13
|
13
67F-82362-00-00 Clamp, Cord 2クランプ，コード ２; |
67F-82362-00-00 |
from US $4.82 |
||
|
14
|
14
970-95060-25-00
Bolt
ボルト; |
970-95060-25-00 |
— | ||
| replacement | |||||
|
14
|
14
90101-06M27-00 Boltボルト; |
90101-06M27-00 |
from US $1.35 |
||
|
15
|
15
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.99 |
||
|
16
|
16
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
16
|
16
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
17
|
17
6D8-82388-00-00 Plate |
6D8-82388-00-00 |
from US $9.72 |
||
| replacement | |||||
|
17
|
17
6D8-82388-01-00 Plate |
6D8-82388-01-00 |
from US $11.05 |
||
|
18
|
18
90464-11121-00 Clampクランプ; |
90464-11121-00 |
from US $1.84 |
||
|
19
|
19
90480-14329-00 Grommet |
90480-14329-00 |
from US $1.84 |
||
|
20
|
20
90465-08M23-00 Clamp |
90465-08M23-00 |
from US $3.54 |
||
|
21
|
21
97095-06014-00 Boltボルト; |
97095-06014-00 |
US $1.56 |
||
| replacement | |||||
|
21
|
21
97D95-06014-00 Bolt, Hexagon Deep Rボルト; |
97D95-06014-00 |
from US $1.07 |
||
|
22
|
22
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
22
|
22
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
23
|
23
68V-81960-00-00 Rectifier and Regulator Assyレクチフアイヤアンドレギユレータアセンブリ; |
68V-81960-00-00 |
from US $193.32 |
||
| replacements | |||||
|
23
|
23
6D3-81960-00-00 Rectifier and Regulator Assyレクチフアイヤアンドレギユレータアセンブリ; |
6D3-81960-00-00 |
from US $215.86 |
||
|
23
|
23
6D3-81960-01-00 RECTIFIER REGULATOR ASSYレクチフアイヤアンドレギユレータアセンブリ; |
6D3-81960-01-00 |
from US $248.69 |
||
|
24
|
24
970-95060-25-00
Bolt
ボルト; |
970-95060-25-00 |
— | ||
| replacement | |||||
|
24
|
24
90101-06M27-00 Boltボルト; |
90101-06M27-00 |
from US $1.35 |
||
|
25
|
25
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.99 |
||
|
26
|
26
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
26
|
26
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
27
|
27
97095-06020-00 Boltボルト; |
97095-06020-00 |
US $1.56 |
||
| replacement | |||||
|
27
|
27
970-80060-20-00 Boltボルト; |
970-80060-20-00 |
from US $1.56 |
||
|
28
|
28
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.99 |
||
|
29
|
29
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
29
|
29
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
