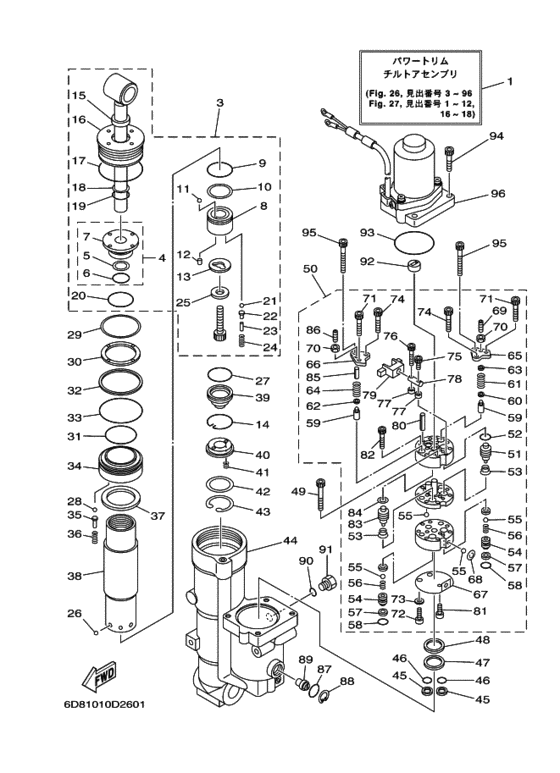

ﾊﾟﾜｰﾄﾘﾑ & ﾁﾙﾄｱｾﾝﾌﾞﾘ 1 Diagram Yamaha F90 ETL/X
- Year
- 2005
- Model
- F90B
- Model code
- 6D8
- Year
- 2005
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 90
- Sales region
- Japan (070)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6D8-43800-00-4D Power Trim & Tilt Assyパワートリム・チルトアセンブリ; |
6D8-43800-00-4D |
US $3,630 |
||
| replacements | |||||
|
1
|
1
6D8-43800-11-8D Power Trim & Tilt Assyパワートリム・チルトアセンブリ; |
6D8-43800-11-8D |
US $3,630 |
||
|
1
|
1
6D8-43800-12-8D Power Trim & Tilt Assyパワートリム・チルトアセンブリ; |
6D8-43800-12-8D |
US $2,739.42 |
||
|
3
|
3
67F-43810-01-00
Tilt Piston Sub Assy
|
67F-43810-01-00 |
— | ||
| replacement | |||||
|
3
|
3
67F-43810-02-00 Tilt Piston Sub Assy |
67F-43810-02-00 |
from US $626.94 |
||
|
4
|
4
67F-4380R-00-00 Cylinder End Sub Assy．シリンダエンドサブアセンブリ; |
67F-4380R-00-00 |
US $146.45 |
||
| replacement | |||||
|
4
|
4
67F-4380R-01-00 Cylinder End Sub Assy．シリンダエンドサブアセンブリ; |
67F-4380R-01-00 |
from US $146.45 |
||
|
5
|
5
6H1-43872-10-00 Ring, Back Up．．リング，バツクアツプ; |
6H1-43872-10-00 |
from US $4.96 |
||
|
6
|
6
93210-18397-00 O-Ring．．Ｏ−リング; |
93210-18397-00 |
from US $1.70 |
||
| replacement | |||||
|
6
|
6
932-10183-22-00 O-Ring．．Ｏ−リング; |
932-10183-22-00 |
from US $1.70 |
||
|
7
|
7
67F-43862-00-00 Screw, Cylinder End．．スクリユ，シリンダエンド; |
67F-43862-00-00 |
from US $4.11 |
||
|
8
|
8
67F-4385A-01-00 Piston, Tilt．ピストン; |
67F-4385A-01-00 |
US $94.92 |
||
| replacement | |||||
|
8
|
8
67F-4385A-09-00 Piston, Tilt．ピストン; |
67F-4385A-09-00 |
from US $60.66 |
||
|
9
|
9
93210-29375-00 O-Ring．Ｏ−リング; |
93210-29375-00 |
from US $1.56 |
||
|
10
|
10
62X-43871-00-00 Ring, Back Up．リング，バツクアツプ; |
62X-43871-00-00 |
from US $11.90 |
||
|
11
|
11
93501-08001-00 Ball．ボール; |
93501-08001-00 |
from US $1.51 |
||
|
12
|
12
93602-07244-00 Pin, Dowel．ピン，ダウエル; |
93602-07244-00 |
from US $1.94 |
||
|
13
|
13
67F-22435-00-00 Plate, Valve 2．プレート，バルブ ２; |
67F-22435-00-00 |
from US $7.37 |
||
|
14
|
14
67F-43875-00-00 Ring, Snap |
67F-43875-00-00 |
from US $5.38 |
||
|
15
|
15
6H1-43812-00-00 Seal, Dust．シール，ダスト; |
6H1-43812-00-00 |
from US $5.67 |
||
|
16
|
16
67F-43821-00-00 Screw, Trim Cylinder End．スクリユ，トリムシリンダエンド; |
67F-43821-00-00 |
US $126 |
||
| replacement | |||||
|
16
|
16
67F-43821-09-00 Screw, Trim Cylinder End．スクリユ，トリムシリンダエンド; |
67F-43821-09-00 |
from US $80.61 |
||
|
17
|
17
67F-43861-00-00 O-Ring．Ｏ−リング; |
67F-43861-00-00 |
from US $7.79 |
||
|
18
|
18
6H1-43872-10-00 Ring, Back Up．リング，バツクアツプ; |
6H1-43872-10-00 |
from US $4.96 |
||
|
19
|
19
93210-18397-00 O-Ring．Ｏ−リング; |
93210-18397-00 |
from US $1.70 |
||
| replacement | |||||
|
19
|
19
932-10183-22-00 O-Ring．Ｏ−リング; |
932-10183-22-00 |
from US $1.70 |
||
|
20
|
20
62X-43862-00-00 O-Ring．Ｏ−リング; |
62X-43862-00-00 |
from US $4.68 |
||
|
21
|
21
93501-08001-00 Ball．ボール; |
93501-08001-00 |
from US $1.51 |
||
|
22
|
22
65W-4386A-00-00 Pin, Absorber Valve．ピン，アブソーババルブ; |
65W-4386A-00-00 |
from US $3.97 |
||
|
23
|
23
688-4386F-00-00 Pin, Straight．ピンストレイト; |
688-4386F-00-00 |
from US $2.41 |
||
|
24
|
24
65W-43853-00-00 Spring, Main Valve．スプリング; |
65W-43853-00-00 |
US $2.13 |
||
|
25
|
25
67F-43893-00-00 Washer．ワツシヤ; |
67F-43893-00-00 |
from US $8.22 |
||
|
26
|
26
93503-16003-00 Ballボール; |
93503-16003-00 |
from US $1.34 |
||
|
27
|
27
67F-43863-00-00 O-Ring |
67F-43863-00-00 |
from US $2.83 |
||
|
28
|
28
93501-08001-00 Ballボール; |
93501-08001-00 |
from US $1.51 |
||
|
29
|
29
67F-43899-00-00 Plate Stopperプレートストツパ; |
67F-43899-00-00 |
from US $4.39 |
||
|
30
|
30
67F-43816-00-00 Filter 1フイルター １; |
67F-43816-00-00 |
from US $17 |
||
|
31
|
31
67F-43862-00-00 Screw, Cylinder Endスクリユ，シリンダエンド; |
67F-43862-00-00 |
from US $4.11 |
||
|
32
|
32
67F-43871-00-00 Ring, Back Up |
67F-43871-00-00 |
from US $17.85 |
||
|
33
|
33
62X-43865-00-00 O-RingＯ−リング; |
62X-43865-00-00 |
from US $4.11 |
||
|
34
|
34
67F-4388A-00-00 Piston, Trimピストン，トリム; |
67F-4388A-00-00 |
US $88.42 |
||
| replacement | |||||
|
34
|
34
67F-4388A-09-00 PISTON, TRIMピストン，トリム; |
67F-4388A-09-00 |
from US $56.51 |
||
|
35
|
35
6T4-4386A-00-00 Pin, Absorber Valve |
6T4-4386A-00-00 |
from US $2.13 |
||
|
36
|
36
67F-43857-00-00 Spring, Absorber Valve |
67F-43857-00-00 |
from US $3.12 |
||
|
37
|
37
67F-4381J-00-00 Plateプレート; |
67F-4381J-00-00 |
from US $7.23 |
||
|
38
|
38
67F-22471-01-00 Cylinder, Shock Absorberシリンダ，シヨツクアブソーバ; |
67F-22471-01-00 |
from US $232.58 |
||
|
39
|
39
67F-4381B-00-00 Free Piston Sub Assy |
67F-4381B-00-00 |
from US $113.71 |
||
|
40
|
40
62X-43899-00-00 Plate Stopperプレートストツパ; |
62X-43899-00-00 |
from US $51.95 |
||
|
41
|
41
62X-4384H-00-00 Spring |
62X-4384H-00-00 |
from US $1.70 |
||
|
42
|
42
1UF-22434-00-00 Plate, Valve 1プレート，バルブ １; |
1UF-22434-00-00 |
from US $5.24 |
||
|
43
|
43
62X-43875-00-00 Ring, Snap |
62X-43875-00-00 |
from US $11.05 |
||
|
44
|
44
6D8-4380K-00-00 Cylinder, Tilt Sub Assy |
6D8-4380K-00-00 |
US $831.60 |
||
| replacement | |||||
|
44
|
44
6D8-4380K-02-00 Cylinder, Tilt Sub Assy |
6D8-4380K-02-00 |
from US $604.57 |
||
|
45
|
45
6C6-43817-00-00 Filter 2フイルター ２; |
6C6-43817-00-00 |
US $5.95 |
||
| replacement | |||||
|
45
|
45
6C5-43817-10-00 Filter 2フイルター ２; |
6C5-43817-10-00 |
from US $5.95 |
||
|
46
|
46
69J-4389J-00-00 O-Ring |
69J-4389J-00-00 |
from US $1.56 |
||
|
47
|
47
6C5-43816-00-00 Filter 1フイルター １; |
6C5-43816-00-00 |
from US $13.74 |
||
|
48
|
48
6C5-4380G-00-00 Plate |
6C5-4380G-00-00 |
from US $1.56 |
||
|
49
|
49
91317-05045-00 Boltボルト; |
91317-05045-00 |
from US $5.29 |
||
| replacement | |||||
|
49
|
49
91380-05045-00
Bolt,socket
ボルト; |
91380-05045-00 |
— | ||
|
50
|
50
6D8-43830-00-00 Gear Pump Assy |
6D8-43830-00-00 |
US $516.96 |
||
| replacement | |||||
|
50
|
50
6D8-43830-09-00 Gear Pump Assy |
6D8-43830-09-00 |
from US $326.13 |
||
|
51
|
51
6C6-43841-00-00 Piston, Shuttle．ピストン，シヤトル; |
6C6-43841-00-00 |
from US $22.07 |
||
|
52
|
52
6H1-43883-00-00 O-Ring．Ｏ−リング; |
6H1-43883-00-00 |
from US $1.70 |
||
|
53
|
53
6C6-43894-00-00 Spring, Shuttle Return．スプリング，シヤトルリターン; |
6C6-43894-00-00 |
from US $2.41 |
||
|
54
|
54
6C6-4382E-00-00 Adaptor 2．アダプタ ２; |
6C6-4382E-00-00 |
US $2.13 |
||
|
55
|
55
93505-32038-00 Ball．ボール; |
93505-32038-00 |
from US $0.47 |
||
|
56
|
56
6C6-43853-00-00 Spring, Main Valve．スプリング; |
6C6-43853-00-00 |
from US $1.56 |
||
|
57
|
57
6C6-4387G-00-00 Washer．ワツシヤ; |
6C6-4387G-00-00 |
from US $5.95 |
||
|
58
|
58
69J-4389J-00-00 O-Ring．Ｏ−リング; |
69J-4389J-00-00 |
from US $1.56 |
||
|
59
|
59
6C5-43851-00-00 Seat, Relief Valve．シート，リリーフバルブ; |
6C5-43851-00-00 |
from US $23.52 |
||
|
60
|
60
6C5-43893-00-00 Washer．ワツシヤ; |
6C5-43893-00-00 |
from US $2.13 |
||
|
61
|
61
6D8-43855-00-00 Spring, Up Relief．スプリング; |
6D8-43855-00-00 |
from US $4.68 |
||
|
62
|
62
6C6-43893-00-00 Washer．ワツシヤ; |
6C6-43893-00-00 |
from US $4.53 |
||
|
63
|
63
6C5-4381K-00-00 Holder．ホルダー; |
6C5-4381K-00-00 |
from US $7.79 |
||
|
64
|
64
6D8-43856-00-00 Spring, Down Relief．スプリング，ダウンレリーフ; |
6D8-43856-00-00 |
from US $5.53 |
||
|
65
|
65
6C5-4382K-00-00 Cap, Relief Valve．キヤツプ，リリーフバルブ; |
6C5-4382K-00-00 |
from US $14.17 |
||
|
66
|
66
6C5-4382L-00-00 Cap, Relief Valve．キヤツプ リリーフバルブ; |
6C5-4382L-00-00 |
from US $14.17 |
||
|
67
|
67
6C5-43895-00-00 Seat, Relief Valve．シート，リリーフバルブ; |
6C5-43895-00-00 |
from US $7.65 |
||
|
68
|
68
6C5-43854-00-00 Spring, Manual Release．スプリング，マニアルレリーズ; |
6C5-43854-00-00 |
from US $6.94 |
||
|
69
|
69
92A08-03110-00 Screw Set．スクリユ セツト; |
92A08-03110-00 |
from US $3.40 |
||
|
70
|
70
95307-03600-00 Nut．ナツト; |
95307-03600-00 |
from US $2.27 |
||
|
71
|
71
91317-05030-00 Bolt．ボルト; |
91317-05030-00 |
from US $2.69 |
||
|
72
|
72
6C6-43878-00-00 Bolt, Socket．ボルト，ソケツト; |
6C6-43878-00-00 |
from US $2.41 |
||
|
73
|
73
62Y-4387G-00-00
Washer
．ワツシヤ; |
62Y-4387G-00-00 |
— | ||
|
74
|
74
91317-04030-00 Bolt．ボルト; |
91317-04030-00 |
from US $1.84 |
||
|
75
|
75
91317-03016-00
Bolt
．ボルト; |
91317-03016-00 |
— | ||
|
76
|
76
6C6-4388E-00-00 Plug, Taper Screw．プラグ，テーパスクリユ; |
6C6-4388E-00-00 |
from US $2.98 |
||
|
77
|
77
6C6-4388F-00-00 Spacer．スペーサ; |
6C6-4388F-00-00 |
from US $11.75 |
||
|
78
|
78
6C6-4386G-00-00 Pin, Straight 2．ピンストレイト ２; |
6C6-4386G-00-00 |
from US $2.13 |
||
|
79
|
79
6C6-4386E-00-00 Lever 1．レバー １; |
6C6-4386E-00-00 |
from US $24.41 |
||
|
80
|
80
91609-50028-00 Pin, Spring．ピン，スプリング; |
91609-50028-00 |
from US $1.49 |
||
| replacement | |||||
|
80
|
80
916-90500-28-00 Pin Spring (Am2)．ピン，スプリング; |
916-90500-28-00 |
from US $2.36 |
||
|
81
|
81
91317-03005-00 Bolt．ボルト; |
91317-03005-00 |
US $1.62 |
||
|
82
|
82
91317-05025-00 Bolt．ボルト; |
91317-05025-00 |
from US $1.56 |
||
|
83
|
83
6C5-43841-00-00 Piston, Shuttle．ピストン，シヤトル; |
6C5-43841-00-00 |
from US $22.07 |
||
|
84
|
84
6C5-43872-00-00 Ring, Back Up．リング，バツクアツプ; |
6C5-43872-00-00 |
from US $4.68 |
||
|
85
|
85
6D8-4381G-00-00 Pin 1．ピン １; |
6D8-4381G-00-00 |
from US $3.54 |
||
|
86
|
86
92A08-03012-00 Screw Set．スクリユ セツト; |
92A08-03012-00 |
US $1.84 |
||
|
87
|
87
93210-18397-00 O-Ring |
93210-18397-00 |
from US $1.70 |
||
| replacement | |||||
|
87
|
87
932-10183-22-00 O-Ring |
932-10183-22-00 |
from US $1.70 |
||
|
88
|
88
6H1-43875-00-00 Ring, Snap |
6H1-43875-00-00 |
from US $2.98 |
||
|
89
|
89
6D8-43845-00-00 Screw, Manual Releaseスクリユ，マニアルレリーズ; |
6D8-43845-00-00 |
from US $36.65 |
||
|
90
|
90
932-10091-65-00
O-Ring
|
932-10091-65-00 |
— | ||
| replacements | |||||
|
90
|
90
93210-09811-00 O-Ring |
93210-09811-00 |
from US $1.28 |
||
|
90
|
90
93210-09350-00 O-Ring |
93210-09350-00 |
from US $1.35 |
||
|
91
|
91
6H1-43829-00-00 Plug, Reservoirプラグ，リザーバ; |
6H1-43829-00-00 |
from US $10.48 |
||
|
92
|
92
6C5-43831-00-00 Connector, Shaft |
6C5-43831-00-00 |
from US $19.55 |
||
|
93
|
93
932-10644-88-00
O-Ring
|
932-10644-88-00 |
— | ||
| replacement | |||||
|
93
|
93
93210-65752-00 O-Ring |
93210-65752-00 |
from US $11.92 |
||
|
94
|
94
65W-43888-00-00 Bolt, Socket |
65W-43888-00-00 |
from US $5.29 |
||
| replacement | |||||
|
94
|
94
90110-06114-00 Bolt, Hexagon Socket Head |
90110-06114-00 |
from US $2.66 |
||
|
95
|
95
91317-05050-00 Boltボルト; |
91317-05050-00 |
from US $1.84 |
||
|
96
|
96
6D8-43880-00-00 Motor Assyモータアセンブリ; ＦＩＧ．２７ヲサンショウ |
6D8-43880-00-00 |
US $689.04 |
||
| replacement | |||||
|
96
|
96
6D8-43880-09-00 Motor Assy (With Connector)モータアセンブリ; ＦＩＧ．２７ヲサンショウ |
6D8-43880-09-00 |
US $689.04 |
||
