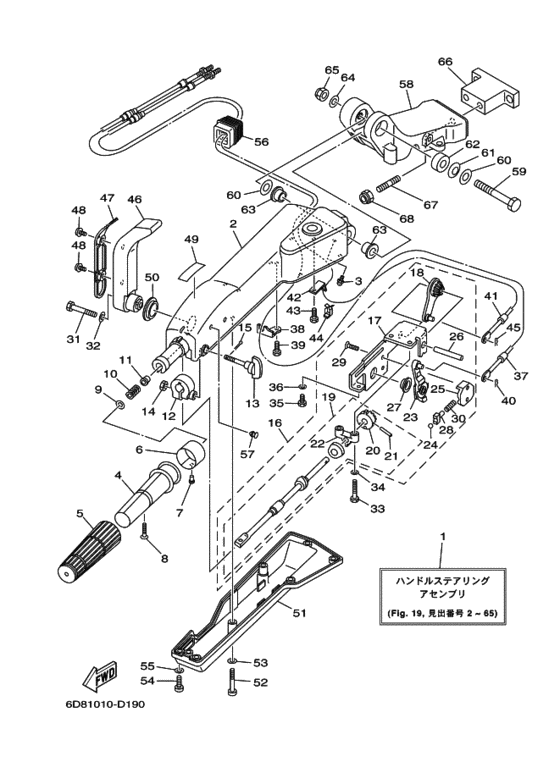

Steering 1 Diagram Yamaha F90 ETL/X
- Year
- 2005
- Model
- F90B
- Model code
- 6D8
- Year
- 2005
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 90
- Sales region
- Japan (070)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
67G-W0084-03-4D
Handle Steering Assy
ＡＰ |
67G-W0084-03-4D |
— | ||
| replacement | |||||
|
1
|
1
67G-W0084-04-4D Handle Steering AssyＡＰ |
67G-W0084-04-4D |
US $1,566.06 |
||
|
2
|
2
67G-42111-02-4D Handle, Steering |
67G-42111-02-4D |
US $109.15 |
||
|
3
|
3
93700-06M03-00 Nipple, Greaseニツプル，グリース; |
93700-06M03-00 |
from US $2.66 |
||
|
4
|
4
664-42119-00-00 Grip, Steering Handleグリツプ，ステアリングハンドル; |
664-42119-00-00 |
from US $20.18 |
||
|
5
|
5
6G1-42177-00-00
Rubber, Handle
ラバー，ハンドル; |
6G1-42177-00-00 |
— | ||
| replacement | |||||
|
5
|
5
6G1-42177-01-00 RUBBER, HANDLEラバー，ハンドル; |
6G1-42177-01-00 |
from US $11.76 |
||
|
6
|
6
6H2-42137-00-00 Indicator, Throttleインジケータ，スロツトル; |
6H2-42137-00-00 |
from US $10.06 |
||
| replacement | |||||
|
6
|
6
6H2-42137-10-00 Indicator, Throttleインジケータ，スロツトル; |
6H2-42137-10-00 |
US $4.82 |
||
|
7
|
7
90269-02M09-00 Rivet |
90269-02M09-00 |
from US $1.98 |
||
|
8
|
8
901-4905M-13-00
Screw
|
901-4905M-13-00 |
— | ||
| replacement | |||||
|
8
|
8
901-52050-11-00 Screw, Countersunk |
901-52050-11-00 |
from US $1.34 |
||
|
9
|
9
92903-10600-00 Washer, Plateワツシヤ，プレート; |
92903-10600-00 |
US $1.07 |
||
| replacement | |||||
|
9
|
9
929-90106-00-00 Washer, Plateワツシヤ，プレート; |
929-90106-00-00 |
from US $1.07 |
||
|
10
|
10
90501-23215-00 Spring, Compression |
90501-23215-00 |
from US $3.40 |
||
|
11
|
11
90386-08032-00 Bush |
90386-08032-00 |
from US $2.13 |
||
|
12
|
12
63D-42126-00-00 Friction, Steering Handle Gripフリクシヨン，ステアリングハンドルグリツプ; |
63D-42126-00-00 |
from US $10.77 |
||
|
13
|
13
63D-48154-00-00
Knob, Throttle
|
63D-48154-00-00 |
— | ||
|
14
|
14
95380-06600-00 Nut, Hexagonナツト，ヘキサゴン; |
95380-06600-00 |
from US $1.07 |
||
|
15
|
15
91490-20010-00 Pin. Cotter |
91490-20010-00 |
from US $1.98 |
||
|
16
|
16
67G-44100-00-00 Shift Link Assembly |
67G-44100-00-00 |
US $233.78 |
||
|
17
|
17
67G-44104-00-00
Plate Comp
．プレートコンプリート; |
67G-44104-00-00 |
— | ||
|
18
|
18
67G-48261-00-00
Arm, Throttle
．アーム，スロツトル; |
67G-48261-00-00 |
— | ||
|
19
|
19
67G-42115-00-00
Shaft, Steering Handle
．シヤフト，ステアリングハンドル; |
67G-42115-00-00 |
— | ||
|
20
|
20
650-42152-00-94 Gear．．ギア; |
650-42152-00-94 |
from US $9.26 |
||
|
21
|
21
91690-30025-00 Pin, Spring．．ピン，スプリング; |
91690-30025-00 |
from US $2.32 |
||
|
22
|
22
67G-42159-00-00 Stay．．ステー; |
67G-42159-00-00 |
US $9.85 |
||
|
23
|
23
67G-44113-00-00 Cam Plate, Handle．カムプレート，ハンドル; |
67G-44113-00-00 |
US $75.59 |
||
|
24
|
24
63D-48236-00-00 Roller, Detent．ローラ，デイテント; |
63D-48236-00-00 |
from US $5.67 |
||
|
25
|
25
63D-48119-00-00 Cover．カバー; |
63D-48119-00-00 |
from US $30.74 |
||
|
26
|
26
67G-42153-00-00
Shaft, Throttle Control
．シヤフト，スロツトルコントロール; |
67G-42153-00-00 |
— | ||
|
27
|
27
67G-44132-00-00 Bushing．ブツシング; |
67G-44132-00-00 |
from US $8.64 |
||
|
28
|
28
63D-48237-00-00 Adapter．アダプタ; |
63D-48237-00-00 |
from US $8.08 |
||
|
29
|
29
98785-05014-00 Screw, Flat Head．スクリユ，フラツトヘツド; |
98785-05014-00 |
US $2.13 |
||
| replacement | |||||
|
29
|
29
6X6-81147-00-00 Screw 3．スクリユ，フラツトヘツド; |
6X6-81147-00-00 |
from US $1.70 |
||
|
30
|
30
63D-48238-00-00 Spring, Detent．スプリング，デイテント; |
63D-48238-00-00 |
from US $3.26 |
||
|
31
|
31
97095-08040-00 Boltボルト; |
97095-08040-00 |
from US $5.24 |
||
|
32
|
32
929-95086-00-00
Washer, Plate
|
929-95086-00-00 |
— | ||
| replacement | |||||
|
32
|
32
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
33
|
33
970-95060-30-00
Bolt
ボルト; |
970-95060-30-00 |
— | ||
| replacement | |||||
|
33
|
33
97080-06030-00 Boltボルト; |
97080-06030-00 |
from US $2.83 |
||
|
34
|
34
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
34
|
34
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
35
|
35
97095-06014-00 Boltボルト; |
97095-06014-00 |
US $1.56 |
||
| replacement | |||||
|
35
|
35
97D95-06014-00 Bolt, Hexagon Deep Rボルト; |
97D95-06014-00 |
from US $1.07 |
||
|
36
|
36
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
36
|
36
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
37
|
37
67G-48321-10-00 Cableケーブル; |
67G-48321-10-00 |
from US $140.92 |
||
|
38
|
38
67G-48531-00-00 Bracekt, Remote Control 1ブラケツト，リモートコントロール １; |
67G-48531-00-00 |
US $4.71 |
||
|
39
|
39
97095-06014-00 Boltボルト; |
97095-06014-00 |
US $1.56 |
||
| replacement | |||||
|
39
|
39
97D95-06014-00 Bolt, Hexagon Deep Rボルト; |
97D95-06014-00 |
from US $1.07 |
||
|
40
|
40
90468-10005-00 Clip |
90468-10005-00 |
from US $3.40 |
||
|
41
|
41
67G-26301-10-00 Throttle Cable Assyスロツトルケーブルアセンブリ; |
67G-26301-10-00 |
from US $115.78 |
||
|
42
|
42
66R-48538-00-00 Clamp, Cable 1クランプ，ケーブル １; |
66R-48538-00-00 |
from US $4.82 |
||
|
43
|
43
97095-06014-00 Boltボルト; |
97095-06014-00 |
US $1.56 |
||
| replacement | |||||
|
43
|
43
97D95-06014-00 Bolt, Hexagon Deep Rボルト; |
97D95-06014-00 |
from US $1.07 |
||
|
44
|
44
63D-48538-00-00 Clamp, Cable 1クランプ，ケーブル １; |
63D-48538-00-00 |
from US $4.25 |
||
|
45
|
45
90468-10005-00 Clip |
90468-10005-00 |
from US $3.40 |
||
|
46
|
46
67G-44159-00-4D Handle, Gear Shift |
67G-44159-00-4D |
US $39.87 |
||
| replacement | |||||
|
46
|
46
67G-44159-00-8D HANDLE, GEAR SHIFT |
67G-44159-00-8D |
from US $39.87 |
||
|
47
|
47
67G-44173-00-00
Lever, Shift Control
レバー，シフトコントロール; |
67G-44173-00-00 |
— | ||
|
48
|
48
90159-06M18-00 Screw, With Washerスクリユ，ウイズワツシヤ; |
90159-06M18-00 |
from US $2.55 |
||
|
49
|
49
6G8-44191-00-00 Indicator, Shiftインジケータ，シフト; |
6G8-44191-00-00 |
from US $7.93 |
||
|
50
|
50
90386-26MA3-00 Bush |
90386-26MA3-00 |
from US $7.51 |
||
|
51
|
51
67G-42131-00-00 Cover, Handle Steeringカバー，ハンドルステアリング; |
67G-42131-00-00 |
US $30.74 |
||
|
52
|
52
97885-06040-00 Screw, Pan Head(6H4)スクリユ，パンヘツド; |
97885-06040-00 |
from US $2.27 |
||
| replacement | |||||
|
52
|
52
98580-06040-00 Screw, Pan Head (90501-06040-00スクリユ，パンヘツド; |
98580-06040-00 |
from US $1.21 |
||
|
53
|
53
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
53
|
53
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
54
|
54
97885-06016-00 Screw, Pan Head |
97885-06016-00 |
from US $1.34 |
||
| replacements | |||||
|
54
|
54
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.55 |
||
|
54
|
54
901-57060-09-00 Screw, Pan Head |
901-57060-09-00 |
US $2.55 |
||
|
55
|
55
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
55
|
55
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
56
|
56
63D-42725-00-00 Grommetグロメツト; |
63D-42725-00-00 |
US $13.02 |
||
|
57
|
57
903-38071-80-00 Plug |
903-38071-80-00 |
from US $1.98 |
||
|
58
|
58
63D-42121-30-4D
Bracket
|
63D-42121-30-4D |
— | ||
|
59
|
59
90101-12014-00 Bolt |
90101-12014-00 |
from US $19.98 |
||
|
60
|
60
929-90122-00-00 Washer, Plainワツシヤ，プレーン; |
929-90122-00-00 |
from US $1.34 |
||
|
61
|
61
90206-12M22-00 Washer, Waveワツシヤ，ウエイブ; |
90206-12M22-00 |
from US $7.51 |
||
|
62
|
62
90387-12M02-00 Collarカラー; |
90387-12M02-00 |
from US $16.01 |
||
|
63
|
63
90386-12M93-00 Bushブツシユ; |
90386-12M93-00 |
from US $2.66 |
||
|
64
|
64
92990-12600-00 Washer, Plateワツシヤ，プレート; |
92990-12600-00 |
from US $1.42 |
||
|
65
|
65
90185-12M12-00 Nut, Self-Lockingナツト，セルフロツキング; |
90185-12M12-00 |
from US $12.24 |
||
|
66
|
66
68V-42121-00-4D BracketＡＰ |
68V-42121-00-4D |
US $319.15 |
||
|
67
|
67
90116-10175-00 Bolt, StudＡＰ |
90116-10175-00 |
from US $5.38 |
||
| replacements | |||||
|
67
|
67
901-16100-62-00 Bolt, StudＡＰ |
901-16100-62-00 |
from US $5.38 |
||
|
67
|
67
90116-10063-00 Bolt, StudＡＰ |
90116-10063-00 |
from US $5.64 |
||
|
68
|
68
901-85100-51-00
Nut, Self-Locking
ＡＰ |
901-85100-51-00 |
— | ||
| replacement | |||||
|
68
|
68
90185-10027-00 Nut, Self-LockingＡＰ |
90185-10027-00 |
from US $1.42 |
||
