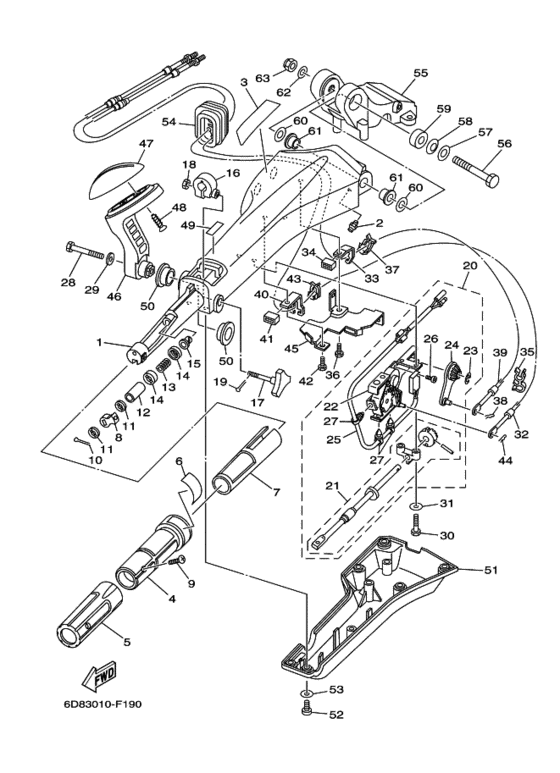

Steering 1 Diagram Yamaha F90 ETL/X
- Year
- 2007
- Model
- F90B
- Model code
- 6D8
- Year
- 2007
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 90
- Sales region
- Japan (120)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6X4-42111-01-4D Handle, Steering |
6X4-42111-01-4D |
US $244.54 |
||
| replacement | |||||
|
1
|
1
6X4-42111-02-8D Handle, Steering |
6X4-42111-02-8D |
from US $244.54 |
||
|
2
|
2
93700-06M03-00 Nipple, Greaseニツプル，グリース; |
93700-06M03-00 |
from US $2.66 |
||
|
3
|
3
6X4-48215-00-00 Graphic |
6X4-48215-00-00 |
from US $7.65 |
||
|
4
|
4
6X4-42119-00-00 Grip, Steering Handle |
6X4-42119-00-00 |
US $31.88 |
||
| replacement | |||||
|
4
|
4
6X4-42119-01-00 Grip, Steering Handle |
6X4-42119-01-00 |
from US $31.88 |
||
|
5
|
5
6X4-42177-00-00 Rubber, Handleラバー，ハンドル; |
6X4-42177-00-00 |
US $14.17 |
||
|
6
|
6
6X4-42137-00-00 Indicator, Throttleインジケータ，スロツトル; |
6X4-42137-00-00 |
from US $4.39 |
||
|
7
|
7
6X4-41291-00-00 Bushing |
6X4-41291-00-00 |
from US $7.23 |
||
|
8
|
8
6X4-44139-00-00 Collarカラー; |
6X4-44139-00-00 |
US $16.86 |
||
| replacement | |||||
|
8
|
8
6X4-44139-01-00 Collarカラー; |
6X4-44139-01-00 |
from US $16.86 |
||
|
9
|
9
90142-05001-00 Screw, Countersunk |
90142-05001-00 |
US $2.98 |
||
| replacement | |||||
|
9
|
9
901-52050-11-00 Screw, Countersunk |
901-52050-11-00 |
from US $1.34 |
||
|
10
|
10
91490-20010-00 Pin. Cotter |
91490-20010-00 |
from US $1.98 |
||
|
11
|
11
6X4-44177-00-00 Washer |
6X4-44177-00-00 |
from US $1.42 |
||
|
12
|
12
6X4-42128-00-00 Collar, Distance 1カラー，デイスタンス １; |
6X4-42128-00-00 |
from US $7.93 |
||
|
13
|
13
90501-23215-00 Spring, Compression |
90501-23215-00 |
from US $3.40 |
||
|
14
|
14
6X4-44188-00-00 Washer |
6X4-44188-00-00 |
from US $2.41 |
||
|
15
|
15
90386-08032-00 Bush |
90386-08032-00 |
from US $2.13 |
||
|
16
|
16
63D-42126-00-00 Friction, Steering Handle Gripフリクシヨン，ステアリングハンドルグリツプ; |
63D-42126-00-00 |
from US $10.77 |
||
|
17
|
17
6X4-48154-00-00 Knob, Throttle |
6X4-48154-00-00 |
from US $31.88 |
||
|
18
|
18
95380-06600-00 Nut, Hexagonナツト，ヘキサゴン; |
95380-06600-00 |
from US $1.07 |
||
|
19
|
19
91490-20010-00 Pin. Cotter |
91490-20010-00 |
from US $1.98 |
||
|
20
|
20
6X4-44100-00-00 Shift Link Assy |
6X4-44100-00-00 |
US $514.23 |
||
| replacement | |||||
|
20
|
20
6X4-44100-01-00 Shift Link Assy |
6X4-44100-01-00 |
from US $514.23 |
||
|
21
|
21
6X4-42115-00-00 Shaft, Steering Handle．シヤフト，ステアリングハンドル; |
6X4-42115-00-00 |
from US $137.47 |
||
|
22
|
22
6X4-44102-00-00 Shift Assist Assy．シフト アシスト アセンブリ; |
6X4-44102-00-00 |
from US $185.13 |
||
|
23
|
23
6X4-14137-00-00 Clip．クリツプ; |
6X4-14137-00-00 |
from US $2.69 |
||
|
24
|
24
6X4-48261-00-00 Arm, Throttle．アーム，スロツトル; |
6X4-48261-00-00 |
from US $57.34 |
||
|
25
|
25
6X4-82540-00-00 Neutral Switch Assy．ニユートラルスイツチアセンブリ; |
6X4-82540-00-00 |
from US $117.57 |
||
|
26
|
26
6A5-48129-10-00 Screw 3．スクリユ ３; |
6A5-48129-10-00 |
US $1.98 |
||
| replacement | |||||
|
26
|
26
98580-03014-00 Screw．スクリユ ３; |
98580-03014-00 |
from US $1.98 |
||
|
27
|
27
6X4-42821-00-00 Band, Clamp．バンド， クランプ; |
6X4-42821-00-00 |
from US $1.56 |
||
|
28
|
28
97095-08040-00 Boltボルト; |
97095-08040-00 |
from US $5.24 |
||
|
29
|
29
929-95086-00-00
Washer, Plate
|
929-95086-00-00 |
— | ||
| replacement | |||||
|
29
|
29
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
30
|
30
970-95060-30-00
Bolt
ボルト; |
970-95060-30-00 |
— | ||
| replacement | |||||
|
30
|
30
97080-06030-00 Boltボルト; |
97080-06030-00 |
from US $2.83 |
||
|
31
|
31
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
31
|
31
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
32
|
32
67G-48321-20-00 Cableケーブル; |
67G-48321-20-00 |
from US $93.95 |
||
|
33
|
33
6X4-48538-00-00 Clamp, Cable 1クランプ，ケーブル １; |
6X4-48538-00-00 |
from US $7.65 |
||
|
34
|
34
6X4-26367-00-00 Protector |
6X4-26367-00-00 |
US $4.39 |
||
|
35
|
35
90464-09M42-00 Clampクランプ; |
90464-09M42-00 |
from US $3.68 |
||
|
36
|
36
97095-06014-00 Boltボルト; |
97095-06014-00 |
US $1.56 |
||
| replacement | |||||
|
36
|
36
97D95-06014-00 Bolt, Hexagon Deep Rボルト; |
97D95-06014-00 |
from US $1.07 |
||
|
37
|
37
63D-48538-00-00 Clamp, Cable 1クランプ，ケーブル １; |
63D-48538-00-00 |
from US $4.25 |
||
|
38
|
38
90468-10005-00 Clip |
90468-10005-00 |
from US $3.40 |
||
|
39
|
39
67G-26301-10-00 Throttle Cable Assyスロツトルケーブルアセンブリ; |
67G-26301-10-00 |
from US $115.78 |
||
|
40
|
40
6X4-48538-10-00 Clamp, Cable 1クランプ，ケーブル １; |
6X4-48538-10-00 |
from US $7.65 |
||
|
41
|
41
6X4-26367-00-00 Protector |
6X4-26367-00-00 |
US $4.39 |
||
|
42
|
42
97095-06014-00 Boltボルト; |
97095-06014-00 |
US $1.56 |
||
| replacement | |||||
|
42
|
42
97D95-06014-00 Bolt, Hexagon Deep Rボルト; |
97D95-06014-00 |
from US $1.07 |
||
|
43
|
43
63D-48538-00-00 Clamp, Cable 1クランプ，ケーブル １; |
63D-48538-00-00 |
from US $4.25 |
||
|
44
|
44
90468-10005-00 Clip |
90468-10005-00 |
from US $3.40 |
||
|
45
|
45
6X4-42159-00-00 Stay |
6X4-42159-00-00 |
from US $37.99 |
||
|
46
|
46
6X4-44159-00-4D Handle, Gear Shift |
6X4-44159-00-4D |
US $88.84 |
||
| replacements | |||||
|
46
|
46
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
46
|
46
6X4-44159-00-8D Handle, Gear Shift |
6X4-44159-00-8D |
US $88.84 |
||
|
46
|
46
6X4-44159-A0-8D Handle, Gear Shift |
6X4-44159-A0-8D |
from US $88.84 |
||
|
47
|
47
6X4-44173-00-00 Lever, Shift Controlレバー，シフトコントロール; |
6X4-44173-00-00 |
from US $10.63 |
||
|
48
|
48
97780-60920-00 Screw, Tapping |
97780-60920-00 |
from US $3.26 |
||
|
49
|
49
6G8-44191-00-00 Indicator, Shiftインジケータ，シフト; |
6G8-44191-00-00 |
from US $7.93 |
||
|
50
|
50
90386-26MA3-00 Bush |
90386-26MA3-00 |
from US $7.51 |
||
|
51
|
51
6X4-42131-11-00 Cover, Handle Steeringカバー，ハンドルステアリング; |
6X4-42131-11-00 |
from US $14.31 |
||
|
52
|
52
97885-06016-00 Screw, Pan Head |
97885-06016-00 |
from US $1.34 |
||
| replacements | |||||
|
52
|
52
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.55 |
||
|
52
|
52
901-57060-09-00 Screw, Pan Head |
901-57060-09-00 |
US $2.55 |
||
|
53
|
53
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
53
|
53
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
54
|
54
6X4-42725-00-00 Grommet |
6X4-42725-00-00 |
US $12.18 |
||
| replacement | |||||
|
54
|
54
6X4-42725-01-00 Grommet |
6X4-42725-01-00 |
from US $12.18 |
||
|
55
|
55
63D-42121-22-4D Bracket |
63D-42121-22-4D |
US $176.84 |
||
| replacements | |||||
|
55
|
55
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
55
|
55
63D-42121-22-8D Bracket |
63D-42121-22-8D |
from US $176.84 |
||
|
56
|
56
90101-12014-00 Bolt |
90101-12014-00 |
from US $19.98 |
||
|
57
|
57
929-90122-00-00 Washer, Plainワツシヤ，プレーン; |
929-90122-00-00 |
from US $1.34 |
||
|
58
|
58
90206-12M22-00 Washer, Waveワツシヤ，ウエイブ; |
90206-12M22-00 |
from US $7.51 |
||
|
59
|
59
90387-12M02-00 Collarカラー; |
90387-12M02-00 |
from US $16.01 |
||
|
60
|
60
90201-12035-00 Washer, Plateワツシヤ，プレート; |
90201-12035-00 |
from US $2.55 |
||
|
61
|
61
90386-12003-00 Bush |
90386-12003-00 |
from US $4.82 |
||
|
62
|
62
92990-12600-00 Washer, Plateワツシヤ，プレート; |
92990-12600-00 |
from US $1.42 |
||
|
63
|
63
90185-12M12-00 Nut, Self-Lockingナツト，セルフロツキング; |
90185-12M12-00 |
from US $12.24 |
||
