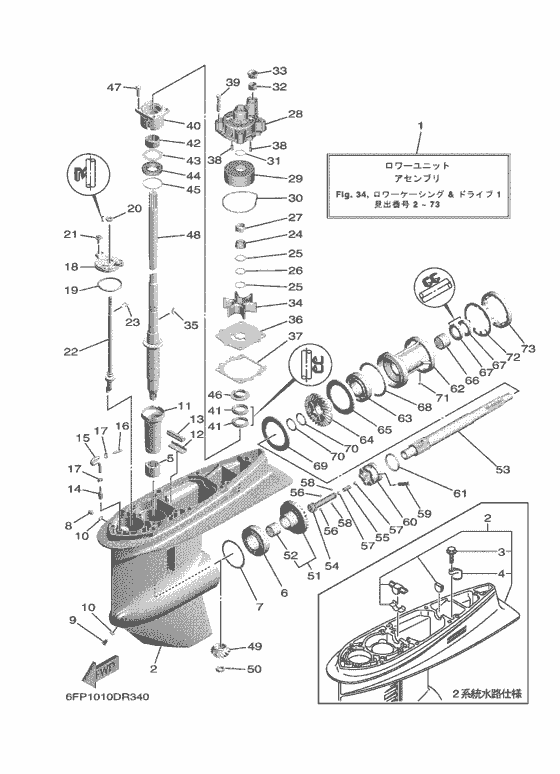

ロワーケーシング & ドライブ 1 Diagram Yamaha F90 ETL
- Year
- 2017
- Model
- F90C
- Model code
- 6FP1
- Year
- 2017
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 90
- Sales region
- Japan (040)
- Colour
- Dark Bluish Gray 1 (DBN1; 008D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6EK-45300-00-8D Lower Unit AssyL(20.3") |
6EK-45300-00-8D |
from US $3,062.40 |
||
| replacements | |||||
|
1
|
1
6EK-45300-01-8D Lower Unit Assy (L)L(20.3") |
6EK-45300-01-8D |
US $3,062.40 |
||
|
1
|
1
6EK-45300-03-8D Lower Unit AssyL(20.3") |
6EK-45300-03-8D |
from US $3,062.40 |
||
|
1
|
1
6EK-45300-10-8D Lower Unit AssyX(25.3") |
6EK-45300-10-8D |
US $3,102 |
||
| replacements | |||||
|
1
|
1
6EK-45300-11-8D Lower Unit AssyX(25.3") |
6EK-45300-11-8D |
US $3,102 |
||
|
1
|
1
6EK-45300-13-8D LOWER UNIT ASSYX(25.3") |
6EK-45300-13-8D |
from US $3,102 |
||
|
1
|
1
6EK-45300-B0-8D Lower Unit AssyAP X(25.3"), 2ｹｲﾄｳｽｲﾛ |
6EK-45300-B0-8D |
US $3,102 |
||
|
2
|
2
6E5-45301-07-8D Casing, Lower |
6E5-45301-07-8D |
from US $1,438.80 |
||
|
2
|
2
6E5-45301-11-8D Casing, Lower２ ＷＡＹ ＪＰＮ AP 2ｹｲﾄｳｽｲﾛ |
6E5-45301-11-8D |
US $1,544.40 |
||
|
3
|
3
90109-06M82-00 Bolt6E5-45301-11-8Dﾖｳ |
90109-06M82-00 |
from US $2 |
||
|
4
|
4
6E5-45619-00-00 Cap6E5-45301-11-8Dﾖｳ |
6E5-45619-00-00 |
US $11.48 |
||
|
5
|
5
93315-628U9-00 Bearing |
93315-628U9-00 |
from US $51.58 |
||
|
6
|
6
93332-000U7-00 Bearing |
93332-000U7-00 |
from US $78.47 |
||
|
7
|
7
6E5-45567-01-00 Shim (T:0.10Mm)UR |
6E5-45567-01-00 |
from US $7.93 |
||
|
7
|
7
6E5-45567-10-00 Shim (T:0.12Mm)UR |
6E5-45567-10-00 |
from US $2.98 |
||
|
7
|
7
6E5-45567-20-00 Shim (T:0.15Mm)UR |
6E5-45567-20-00 |
from US $3.64 |
||
|
7
|
7
6E5-45567-30-00 Shim (T:0.18Mm)UR |
6E5-45567-30-00 |
from US $7.93 |
||
|
7
|
7
6E5-45567-40-00 Shim (T:0.30Mm)UR |
6E5-45567-40-00 |
from US $7.93 |
||
|
7
|
7
6E5-45567-50-00 Shim (T:0.40Mm)UR |
6E5-45567-50-00 |
from US $7.93 |
||
|
7
|
7
6E5-45567-60-00 Shim (T:0.50Mm)UR |
6E5-45567-60-00 |
from US $7.93 |
||
|
8
|
8
903-40080-02-00 Plug, Straight Screw |
903-40080-02-00 |
from US $3.12 |
||
|
9
|
9
688-45341-10-00 Plug, Drain |
688-45341-10-00 |
from US $7.37 |
||
|
10
|
10
90430-08003-00 Gasket |
90430-08003-00 |
from US $1.28 |
||
|
11
|
11
6E5-45536-00-00 Sleeve, Drive Shaft |
6E5-45536-00-00 |
from US $22.39 |
||
|
12
|
12
663-45376-00-00 Guide, Seal Damper2ｹｲﾄｳｽｲﾛﾉｿﾞｸ |
663-45376-00-00 |
from US $5.95 |
||
|
13
|
13
688-45375-00-00 Damper, Seal2ｹｲﾄｳｽｲﾛﾉｿﾞｸ |
688-45375-00-00 |
from US $6.66 |
||
|
14
|
14
6E5-45378-00-00 Nipple, Hose |
6E5-45378-00-00 |
from US $4.30 |
||
|
15
|
15
904-4507M-E8-00
Hose (L80)
L(20.3") |
904-4507M-E8-00 |
— | ||
| replacement | |||||
|
15
|
15
90445-07MF2-00 Hose (L250)L(20.3") |
90445-07MF2-00 |
from US $1.98 |
||
|
15
|
15
90445-07ME9-00 Hose (L120)X(25.3") |
90445-07ME9-00 |
US $1.98 |
||
| replacement | |||||
|
15
|
15
90445-07MF2-00 Hose (L250)X(25.3") |
90445-07MF2-00 |
from US $1.98 |
||
|
16
|
16
6E5-83558-10-00 End, Nipple |
6E5-83558-10-00 |
from US $6.23 |
||
|
17
|
17
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
17
|
17
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.21 |
||
|
17
|
17
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.34 |
||
|
18
|
18
6E5-45321-00-00 Plate |
6E5-45321-00-00 |
from US $26.07 |
||
|
19
|
19
93210-58144-00 O-Ring |
93210-58144-00 |
from US $4.11 |
||
| replacement | |||||
|
19
|
19
93210-58677-00 O-Ring |
93210-58677-00 |
from US $2.66 |
||
|
20
|
20
931-06090-14-00 Oil Seal |
931-06090-14-00 |
from US $2.98 |
||
|
21
|
21
90119-06M10-00 Bolt, With Washer |
90119-06M10-00 |
US $4.68 |
||
|
22
|
22
6E5-44150-03-00 Shift Cam Assy |
6E5-44150-03-00 |
from US $331.58 |
||
|
23
|
23
99001-08600-00 Circlip |
99001-08600-00 |
from US $1.42 |
||
|
24
|
24
61A-45538-00-00 Spacer 1 |
61A-45538-00-00 |
from US $2.13 |
||
|
25
|
25
90201-22M01-00 Washer, Plate |
90201-22M01-00 |
from US $1.98 |
||
|
26
|
26
90206-22M19-00 Washer, Wave |
90206-22M19-00 |
from US $3.83 |
||
|
27
|
27
61A-45527-00-00 Collar, Drive Shaft |
61A-45527-00-00 |
from US $7.28 |
||
|
28
|
28
61A-44311-01-00 Housing, Water Pump |
61A-44311-01-00 |
from US $27.44 |
||
|
29
|
29
61A-44322-02-00 Insert, Cartridge |
61A-44322-02-00 |
from US $54.85 |
||
|
30
|
30
93210-86M38-00 O-Ring |
93210-86M38-00 |
from US $7.28 |
||
|
31
|
31
932-10371-60-00
O-Ring
|
932-10371-60-00 |
— | ||
| replacement | |||||
|
31
|
31
93210-37M67-00 O-Ring (6G8) |
93210-37M67-00 |
from US $2.55 |
||
|
32
|
32
6E5-44365-00-00
Damper, Water Seal 1
|
6E5-44365-00-00 |
— | ||
| replacement | |||||
|
32
|
32
6E5-44365-01-00 DAMPER, WATER SEAL 1 |
6E5-44365-01-00 |
from US $2.66 |
||
|
33
|
33
6E5-44312-00-00 Cover, Water Pump Housing |
6E5-44312-00-00 |
from US $2.32 |
||
|
34
|
34
6E5-44352-01-00 Impeller |
6E5-44352-01-00 |
from US $41.62 |
||
|
35
|
35
90280-04M05-00 Key, Woodruff |
90280-04M05-00 |
from US $10.26 |
||
|
36
|
36
6EK-44323-00-00 Outer Plate, Cartridge |
6EK-44323-00-00 |
from US $16.15 |
||
|
37
|
37
6E5-44315-A0-00 Gasket, Water Pump |
6E5-44315-A0-00 |
from US $5.10 |
||
|
38
|
38
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.69 |
||
|
39
|
39
90119-08M14-00 Bolt, With Washer |
90119-08M14-00 |
from US $2.98 |
||
|
40
|
40
6E5-45331-00-9S Housing, Bearing |
6E5-45331-00-9S |
from US $102.51 |
||
|
41
|
41
931-0128M-16-00 Oil Seal |
931-0128M-16-00 |
from US $6.96 |
||
|
42
|
42
93317-330U2-00 Bearing |
93317-330U2-00 |
from US $24.65 |
||
| replacement | |||||
|
42
|
42
93315-430V5-00 Bearing |
93315-430V5-00 |
from US $19.18 |
||
|
43
|
43
6E5-45587-01-00 Shim (T:0.10Mm)UR |
6E5-45587-01-00 |
from US $2.32 |
||
|
43
|
43
6E5-45587-10-00 Shim (T:0.12Mm)UR |
6E5-45587-10-00 |
from US $2.32 |
||
|
43
|
43
6E5-45587-20-00 Shim (T:0.15Mm)UR |
6E5-45587-20-00 |
from US $2 |
||
|
43
|
43
6E5-45587-30-00 Shim (T:0.18Mm)UR |
6E5-45587-30-00 |
from US $2.66 |
||
|
43
|
43
6E5-45587-40-00 Shim (T:0.30Mm)UR |
6E5-45587-40-00 |
from US $2 |
||
|
43
|
43
6E5-45587-50-00 Shim (T:0.40Mm)UR |
6E5-45587-50-00 |
from US $2.66 |
||
|
43
|
43
6E5-45587-60-00 Shim (T:0.50Mm)UR |
6E5-45587-60-00 |
from US $1.66 |
||
|
44
|
44
93341-930V2-00 Bearing |
93341-930V2-00 |
from US $130.15 |
||
|
45
|
45
932-1055M-14-00
O-Ring
|
932-1055M-14-00 |
— | ||
| replacement | |||||
|
45
|
45
932-10545-34-00 O-Ring |
932-10545-34-00 |
from US $2.55 |
||
|
46
|
46
6E5-45344-00-00 Cover, Oil Seal |
6E5-45344-00-00 |
from US $6.96 |
||
|
47
|
47
97595-08525-00 Bolt |
97595-08525-00 |
US $3.54 |
||
| replacements | |||||
|
47
|
47
97075-08025-00 Bolt |
97075-08025-00 |
US $1.42 |
||
|
47
|
47
97D75-08025-00 Bolt, Hexagon Deep Recess |
97D75-08025-00 |
from US $1.42 |
||
|
48
|
48
6EK-45501-00-00 Drive Shaft CompL(20.3") |
6EK-45501-00-00 |
from US $482.86 |
||
|
48
|
48
6EK-45501-10-00 Drive Shaft CompX(25.3") |
6EK-45501-10-00 |
from US $546.96 |
||
|
49
|
49
68V-45551-00-00 Pinion (13T) |
68V-45551-00-00 |
from US $115.50 |
||
|
50
|
50
90170-16M01-00 Nut |
90170-16M01-00 |
from US $5.30 |
||
|
51
|
51
68V-45560-00-00 Gear 1 (28T) |
68V-45560-00-00 |
from US $218.29 |
||
|
52
|
52
933-15425-U7-00 Bearing |
933-15425-U7-00 |
from US $20.50 |
||
|
53
|
53
6E5-45611-01-00 Shaft, Propeller |
6E5-45611-01-00 |
from US $313.62 |
||
|
54
|
54
6E5-45634-02-00 Slide, Shift |
6E5-45634-02-00 |
from US $32.87 |
||
|
55
|
55
90501-16M37-00 Spring, Compression |
90501-16M37-00 |
from US $1.66 |
||
|
56
|
56
93507-32009-00 Ball 7-32 |
93507-32009-00 |
from US $1.70 |
||
| replacement | |||||
|
56
|
56
93507-32031-00 Ball 7-32 |
93507-32031-00 |
from US $1.66 |
||
|
57
|
57
93511-32017-00 Ball |
93511-32017-00 |
from US $1.56 |
||
| replacement | |||||
|
57
|
57
93511-32027-00 Ball |
93511-32027-00 |
from US $1.56 |
||
|
58
|
58
93503-16003-00 Ball |
93503-16003-00 |
from US $1.34 |
||
|
59
|
59
90250-08M07-00 Pin, Straight |
90250-08M07-00 |
from US $4.30 |
||
|
60
|
60
68V-45631-01-00 Clutch, Dog |
68V-45631-01-00 |
from US $124.48 |
||
| replacement | |||||
|
60
|
60
68V-45631-02-00 CLUTCH DOG |
68V-45631-02-00 |
from US $124.48 |
||
|
61
|
61
6E5-45633-01-00 Ring, Cross Pin |
6E5-45633-01-00 |
from US $9.92 |
||
|
62
|
62
6E5-45332-00-CA Housing, Bearing |
6E5-45332-00-CA |
from US $150.59 |
||
|
63
|
63
93306-208U0-00 Bearing |
93306-208U0-00 |
from US $34.06 |
||
|
64
|
64
68V-45571-00-00 Gear 2 (28T) |
68V-45571-00-00 |
from US $169.94 |
||
|
65
|
65
6E5-45576-00-00 Washer, Thrust 2 |
6E5-45576-00-00 |
from US $22.39 |
||
|
66
|
66
933-15430-U8-00
Bearing
|
933-15430-U8-00 |
— | ||
| replacement | |||||
|
66
|
66
93315-43061-00 Bearing |
93315-43061-00 |
from US $29.10 |
||
|
67
|
67
931-0130M-17-00 Oil Seal |
931-0130M-17-00 |
from US $6.30 |
||
|
68
|
68
932-1086M-39-00 O-Ring |
932-1086M-39-00 |
from US $7.62 |
||
|
69
|
69
6L6-45577-00-00 Shim (T:0.10Mm)UR |
6L6-45577-00-00 |
from US $6.38 |
||
| replacement | |||||
|
69
|
69
999-99999-99-00
Not Available
UR |
999-99999-99-00 |
— | ||
|
69
|
69
6L6-45577-10-00 Shim (T:0.12Mm)UR |
6L6-45577-10-00 |
from US $6.38 |
||
|
69
|
69
6L6-45577-20-00 Shim (T:0.15Mm)UR |
6L6-45577-20-00 |
from US $6.38 |
||
|
69
|
69
6L6-45577-30-00 Shim (T:0.18Mm)UR |
6L6-45577-30-00 |
from US $6.38 |
||
|
69
|
69
6L6-45577-40-00 Shim (T:0.30Mm)UR |
6L6-45577-40-00 |
from US $6.38 |
||
|
69
|
69
6L6-45577-50-00 Shim (T:0.40Mm)UR |
6L6-45577-50-00 |
from US $6.38 |
||
|
69
|
69
6L6-45577-60-00 Shim (T:0.50Mm)UR |
6L6-45577-60-00 |
from US $6.38 |
||
|
70
|
70
90201-30M92-00 Washer, Plate |
90201-30M92-00 |
from US $4.53 |
||
|
71
|
71
902-82040-10-00 Key, Straight |
902-82040-10-00 |
from US $3.40 |
||
|
72
|
72
688-45383-02-00 Washer, Claw |
688-45383-02-00 |
from US $10.58 |
||
|
73
|
73
688-45384-02-00 Nut |
688-45384-02-00 |
