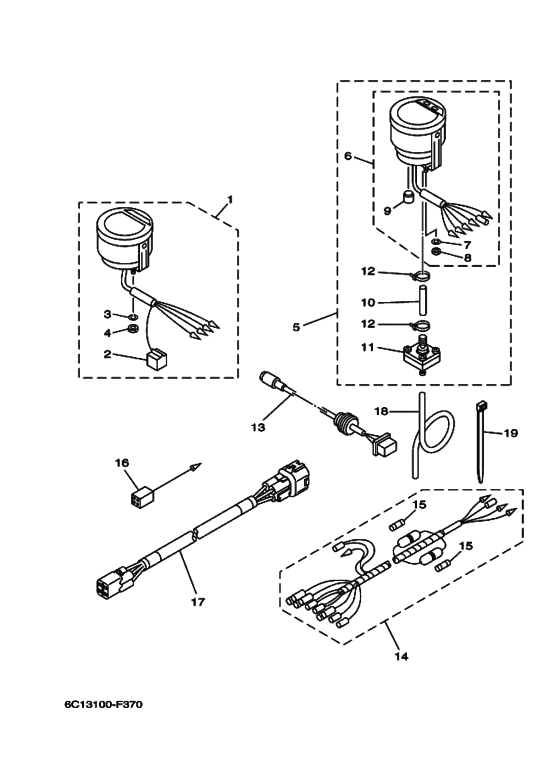

Meter Diagram Yamaha F90 ETL/X
- Year
- 2007
- Model
- F90B
- Model code
- 6D8
- Year
- 2007
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 90
- Sales region
- Europe (140)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6Y5-8350T-90-00 Digital Tachometer AssyAP |
6Y5-8350T-90-00 |
US $620.40 |
||
| replacements | |||||
|
1
|
1
6Y5-8350T-91-00 Digital Tachometer AssyAP |
6Y5-8350T-91-00 |
US $605.88 |
||
|
1
|
1
6YR-W0035-E3-00
element
AP |
6YR-W0035-E3-00 |
— | ||
|
2
|
2
9E450-04533-00 ConnectorF-4-W |
9E450-04533-00 |
from US $9.07 |
||
|
3
|
3
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
4
|
4
95380-04600-00 Nut |
95380-04600-00 |
US $1.07 |
||
| replacement | |||||
|
4
|
4
95303-04600-00 Nut |
95303-04600-00 |
from US $2.55 |
||
|
5
|
5
6Y5-83500-S5-00 Digital Speedometer AssyAP |
6Y5-83500-S5-00 |
US $1,046.97 |
||
| replacements | |||||
|
5
|
5
6Y5-83500-S6-00 Digital Speedometer AssyAP |
6Y5-83500-S6-00 |
US $787.67 |
||
|
5
|
5
6Y5-83570-A0-00 SPEEDOMETER ASSYAP |
6Y5-83570-A0-00 |
US $887.04 |
||
|
5
|
5
6Y5-83570-A3-00 Meter Assy.AP |
6Y5-83570-A3-00 |
US $609.53 |
||
|
6
|
6
6Y5-83570-S5-00 Speedometer Assy |
6Y5-83570-S5-00 |
US $896.28 |
||
| replacements | |||||
|
6
|
6
6Y5-83570-A0-00 SPEEDOMETER ASSY |
6Y5-83570-A0-00 |
US $887.04 |
||
|
6
|
6
6Y5-83570-A3-00 Meter Assy. |
6Y5-83570-A3-00 |
US $609.53 |
||
|
7
|
7
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
8
|
8
95380-04600-00 Nut |
95380-04600-00 |
US $1.07 |
||
| replacement | |||||
|
8
|
8
95303-04600-00 Nut |
95303-04600-00 |
from US $2.55 |
||
|
9
|
9
6Y5-83533-T2-00 Grommet |
6Y5-83533-T2-00 |
from US $15.87 |
||
|
10
|
10
6Y5-83557-31-00 Tube |
6Y5-83557-31-00 |
from US $4.68 |
||
| replacement | |||||
|
10
|
10
91A30-03039-00 Tube, Flexible Vinyl |
91A30-03039-00 |
from US $4.68 |
||
|
11
|
11
6Y5-83728-00-00 Connector Assy |
6Y5-83728-00-00 |
from US $84.42 |
||
|
12
|
12
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
12
|
12
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.21 |
||
|
12
|
12
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.34 |
||
|
13
|
13
6Y5-87122-S0-00 Cord Assy 1AP |
6Y5-87122-S0-00 |
from US $23.80 |
||
|
14
|
14
6Y5-83553-M0-00 Wire, Lead (L=2.5M)AP |
6Y5-83553-M0-00 |
US $61.34 |
||
| replacement | |||||
|
14
|
14
6Y5-83553-N0-00 Wire, Lead (L=2.5M)AP |
6Y5-83553-N0-00 |
US $88.98 |
||
|
15
|
15
1E6-82151-00-00 Fuse (10A)10A |
1E6-82151-00-00 |
from US $1.66 |
||
|
16
|
16
6Y5-82117-00-00 Wire, Lead (Black) (L300)AP |
6Y5-82117-00-00 |
from US $6.52 |
||
|
17
|
17
6Y5-83653-30-00 Wire, Lead (L=8.0M)Wire, lead AP 4P,8M |
6Y5-83653-30-00 |
from US $109.35 |
||
|
18
|
18
6Y5-83557-10-00 Tube (8M)8M; AP |
6Y5-83557-10-00 |
from US $15.19 |
||
|
19
|
19
904-6511M-10-00
Clamp
AP |
904-6511M-10-00 |
— | ||
| replacements | |||||
|
19
|
19
80L-26397-00-00 BandAP |
80L-26397-00-00 |
from US $1.21 |
||
|
19
|
19
904-65100-98-00 ClampAP |
904-65100-98-00 |
from US $1.34 |
||
