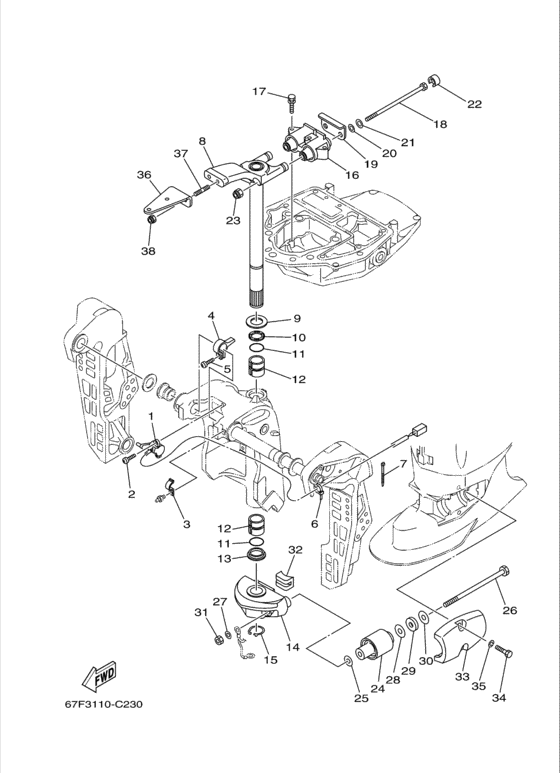

Bracket Diagram Yamaha F90 TL/XR
- Year
- 2004
- Model
- F90
- Year
- 2004
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 90
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
67H-83672-00-00
Trim Sender
|
67H-83672-00-00 |
— | ||
| replacement | |||||
|
1
|
1
67H-83672-02-00 TRIM SENDER |
67H-83672-02-00 |
from US $205.43 |
||
|
2
|
2
97885-06016-00 Screw, Pan Head |
97885-06016-00 |
from US $1.34 |
||
| replacements | |||||
|
2
|
2
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.55 |
||
|
2
|
2
901-57060-09-00 Screw, Pan Head |
901-57060-09-00 |
US $2.55 |
||
|
3
|
3
90465-08M63-00 Clamp |
90465-08M63-00 |
from US $6.52 |
||
|
4
|
4
64E-43139-02-00
Cam, Trim Sender
|
64E-43139-02-00 |
— | ||
| replacement | |||||
|
4
|
4
999-99038-30-00 Cam, Trim Sender (With Screw) |
999-99038-30-00 |
from US $17.28 |
||
|
5
|
5
97780-60525-00 Screw,tapping |
97780-60525-00 |
US $1.98 |
||
| replacement | |||||
|
5
|
5
97780-60625-00 Screw, Tapping(65J) |
97780-60625-00 |
from US $1.98 |
||
|
6
|
6
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
6
|
6
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.21 |
||
|
6
|
6
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.34 |
||
|
7
|
7
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
7
|
7
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.21 |
||
|
7
|
7
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.34 |
||
|
8
|
8
67F-42510-10-4D Steering Bracket Assy |
67F-42510-10-4D |
US $648.12 |
||
| replacement | |||||
|
8
|
8
67F-42510-11-8D Steering Bracket Assy |
67F-42510-11-8D |
from US $648.12 |
||
|
9
|
9
90201-30M00-00 Washer, Plate |
90201-30M00-00 |
from US $4.64 |
||
|
10
|
10
90386-30M78-00 Bush |
90386-30M78-00 |
from US $2.66 |
||
|
11
|
11
93210-29M94-00 O-Ring |
93210-29M94-00 |
from US $2 |
||
|
12
|
12
90386-30M77-00 Bush |
90386-30M77-00 |
from US $9.92 |
||
|
13
|
13
90386-30M60-00 Bush |
90386-30M60-00 |
from US $2.66 |
||
|
14
|
14
67F-44551-00-4D Housing, Lower Mount Rubber 1 |
67F-44551-00-4D |
US $175.46 |
||
| replacement | |||||
|
14
|
14
67F-44551-00-8D Housing, Lower Mount Rubber 1 |
67F-44551-00-8D |
from US $175.46 |
||
|
15
|
15
93410-28M06-00 Circlip |
93410-28M06-00 |
from US $7.23 |
||
|
16
|
16
67F-44514-00-94 Mount Damper, Upper Side |
67F-44514-00-94 |
US $122.69 |
||
| replacement | |||||
|
16
|
16
67F-44514-01-00 Mount Damper, Upper Side |
67F-44514-01-00 |
from US $122.69 |
||
|
17
|
17
97575-08445-00 Bolt, With Washer |
97575-08445-00 |
US $2.41 |
||
| replacements | |||||
|
17
|
17
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
97575-08545-00 Bolt, With Washer |
97575-08545-00 |
US $2.41 |
||
|
17
|
17
97E75-08545-00 Bolt, Hexagon W/w De |
97E75-08545-00 |
from US $2.41 |
||
|
18
|
18
90109-12M37-00 Bolt |
90109-12M37-00 |
US $19.84 |
||
| replacement | |||||
|
18
|
18
90109-12007-00 Bolt |
90109-12007-00 |
from US $19.84 |
||
|
19
|
19
67F-44526-00-00 Plate |
67F-44526-00-00 |
from US $13.74 |
||
|
20
|
20
90201-12M16-00 Washer, Plate |
90201-12M16-00 |
from US $2.32 |
||
|
21
|
21
90201-13M01-00 Washer, Plate |
90201-13M01-00 |
from US $3.24 |
||
|
22
|
22
67F-44533-00-00 Damper, Upper Mount Rubber |
67F-44533-00-00 |
from US $5.38 |
||
|
23
|
23
95780-12300-00 Nut, Flange |
95780-12300-00 |
from US $10.92 |
||
|
24
|
24
67F-44555-00-94 Mount Damper, Lower Side |
67F-44555-00-94 |
US $107.21 |
||
| replacement | |||||
|
24
|
24
67F-44555-00-00 Mount Damper, Lower Side |
67F-44555-00-00 |
from US $107.21 |
||
|
25
|
25
90201-13M03-00 Washer, Plate |
90201-13M03-00 |
from US $4.11 |
||
|
26
|
26
90109-12M97-00 Bolt |
90109-12M97-00 |
US $25.64 |
||
| replacement | |||||
|
26
|
26
90109-12006-00 Bolt |
90109-12006-00 |
from US $25.64 |
||
|
27
|
27
90201-12M16-00 Washer, Plate |
90201-12M16-00 |
from US $2.32 |
||
|
28
|
28
90201-24M02-00 Washer, Plate |
90201-24M02-00 |
from US $4.30 |
||
|
29
|
29
90202-25M04-00 Washer, Plate |
90202-25M04-00 |
from US $2.66 |
||
|
30
|
30
90201-13M19-00 Washer, Plate |
90201-13M19-00 |
from US $5.96 |
||
|
31
|
31
95380-12700-00 Nut |
95380-12700-00 |
from US $3.68 |
||
| replacement | |||||
|
31
|
31
95380-12800-00 Nut, Crown |
95380-12800-00 |
from US $3.64 |
||
|
32
|
32
67F-44575-00-00 Damper, Lower Mount Rubber |
67F-44575-00-00 |
from US $14.31 |
||
|
33
|
33
67F-44553-00-4D Cover, Lower Mount |
67F-44553-00-4D |
US $94.23 |
||
| replacement | |||||
|
33
|
33
67F-44553-00-8D Cover, Lower Mount |
67F-44553-00-8D |
from US $82.73 |
||
|
34
|
34
970-75100-40-00 Bolt |
970-75100-40-00 |
from US $3.14 |
||
| replacement | |||||
|
34
|
34
97D-75100-40-00 BOLT HEXAGON DEEP RECESS |
97D-75100-40-00 |
from US $3.40 |
||
|
35
|
35
92995-10100-00 Washer |
92995-10100-00 |
from US $1.56 |
||
| replacement | |||||
|
35
|
35
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.34 |
||
|
36
|
36
67F-48511-00-4D Hook, Steering |
67F-48511-00-4D |
US $32.73 |
||
| replacement | |||||
|
36
|
36
67F-48511-01-00 Hook, Steering |
67F-48511-01-00 |
from US $32.73 |
||
|
37
|
37
90116-10175-00 Bolt, Stud |
90116-10175-00 |
from US $5.38 |
||
| replacements | |||||
|
37
|
37
901-16100-62-00 Bolt, Stud |
901-16100-62-00 |
from US $5.38 |
||
|
37
|
37
90116-10063-00 Bolt, Stud |
90116-10063-00 |
from US $5.64 |
||
|
38
|
38
901-85100-51-00
Nut, Self-Locking
|
901-85100-51-00 |
— | ||
| replacement | |||||
|
38
|
38
90185-10027-00 Nut, Self-Locking |
90185-10027-00 |
from US $1.42 |
||
