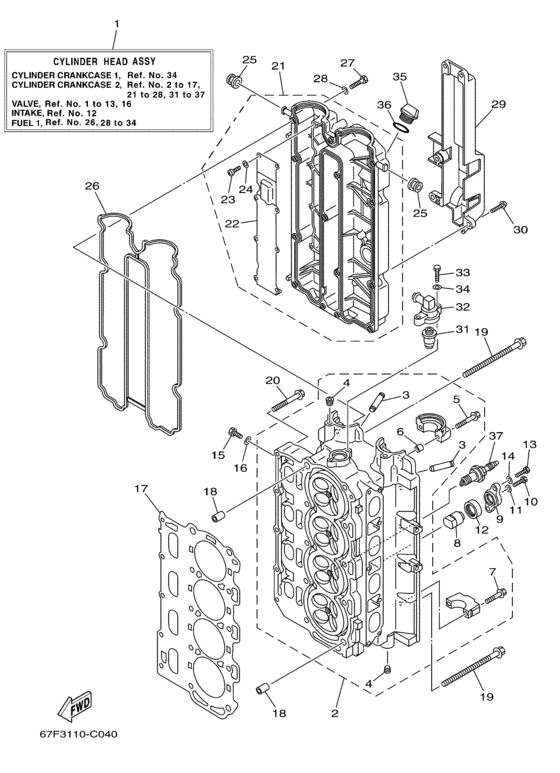

Cylinder crankcase Diagram Yamaha F90 TL/XR
- Year
- 2004
- Model
- F90
- Year
- 2004
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 90
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
67F-W009A-21-1S Cylinder Head Complete |
67F-W009A-21-1S |
US $3,726.78 |
||
| replacements | |||||
|
1
|
1
67F-W009A-29-9S Cylinder Head Complete |
67F-W009A-29-9S |
from US $3,685.82 |
||
|
1
|
1
67F-W009A-23-9S Cylinder Head Complete |
67F-W009A-23-9S |
US $3,685.82 |
||
|
2
|
2
67F-11110-11-94 Cylinder Head Assy |
67F-11110-11-94 |
US $2,653.20 |
||
| replacement | |||||
|
2
|
2
99999-04109-00 Head, Cylinder With Ex Valve |
99999-04109-00 |
from US $2,070.07 |
||
|
3
|
3
67F-11133-10-00 Guide, Valve 1 |
67F-11133-10-00 |
from US $17.28 |
||
|
4
|
4
903-44510-19-00
Plug, Taper Screw
|
903-44510-19-00 |
— | ||
| replacement | |||||
|
4
|
4
903-44510-08-00 Plug, Taper Screw |
903-44510-08-00 |
from US $1.62 |
||
|
5
|
5
90119-07235-00 Bolt/washer-Cam Caps |
90119-07235-00 |
from US $1.84 |
||
|
6
|
6
91809-08006-00 Pin, Dowel |
91809-08006-00 |
from US $1.84 |
||
|
7
|
7
90119-07234-00 Bolt, With Washer |
90119-07234-00 |
from US $1.84 |
||
|
8
|
8
68V-11325-00-00 Anode |
68V-11325-00-00 |
US $12.75 |
||
| replacement | |||||
|
8
|
8
68V-11325-01-00 Anode |
68V-11325-01-00 |
from US $12.75 |
||
|
9
|
9
67F-11327-00-94 Cover, Anode |
67F-11327-00-94 |
US $17.85 |
||
| replacements | |||||
|
9
|
9
67F-11301-10-00 Anode Cover Assy |
67F-11301-10-00 |
US $17.85 |
||
|
9
|
9
67F-11301-11-00 ANODE COVER ASSY |
67F-11301-11-00 |
from US $17.85 |
||
|
10
|
10
970-75060-20-00
Bolt
|
970-75060-20-00 |
— | ||
| replacement | |||||
|
10
|
10
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
11
|
11
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
11
|
11
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
12
|
12
67F-11328-00-00
Grommet, Anode
|
67F-11328-00-00 |
— | ||
| replacement | |||||
|
12
|
12
67F-11328-01-00 GROMMET ANODE |
67F-11328-01-00 |
from US $2.27 |
||
|
13
|
13
97075-08025-00 Bolt |
97075-08025-00 |
US $1.42 |
||
| replacement | |||||
|
13
|
13
97D75-08025-00 Bolt, Hexagon Deep Recess |
97D75-08025-00 |
from US $1.42 |
||
|
14
|
14
929-95086-00-00
Washer, Plate
|
929-95086-00-00 |
— | ||
| replacement | |||||
|
14
|
14
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
15
|
15
97095-08014-00 Bolt |
97095-08014-00 |
US $1.07 |
||
| replacements | |||||
|
15
|
15
97D95-08014-00 Bolt, Hexagon Deep R |
97D95-08014-00 |
from US $1.07 |
||
|
15
|
15
97D95-08014-00 Bolt, Hexagon Deep R |
97D95-08014-00 |
from US $1.07 |
||
|
16
|
16
90430-08143-00 Gasket |
90430-08143-00 |
from US $1.70 |
||
|
17
|
17
67F-11181-02-00
Gasket, Cylinder Head 1
|
67F-11181-02-00 |
— | ||
| replacement | |||||
|
17
|
17
67F-11181-03-00 Gasket, Cylinder Head 1 |
67F-11181-03-00 |
from US $100.86 |
||
|
18
|
18
90387-10M08-00 Collar |
90387-10M08-00 |
from US $1.56 |
||
| replacement | |||||
|
18
|
18
99530-14016-00 Pin, Dowel |
99530-14016-00 |
from US $1.56 |
||
|
19
|
19
90105-10M89-00 Bolt, Flange |
90105-10M89-00 |
US $9.49 |
||
|
20
|
20
90119-08M91-00 Bolt, With Washer |
90119-08M91-00 |
from US $4.25 |
||
|
21
|
21
68V-11191-00-1S Cover, Cylinder Head 1 |
68V-11191-00-1S |
from US $196.72 |
||
| replacement | |||||
|
21
|
21
68V-11191-00-9S Cover, Cylinder Head 1 |
68V-11191-00-9S |
from US $427.79 |
||
|
22
|
22
67F-11168-00-00 Cover, Breather |
67F-11168-00-00 |
from US $20.69 |
||
|
23
|
23
98507-04008-00 Screw, Pan Head |
98507-04008-00 |
from US $1.07 |
||
|
24
|
24
92907-04600-00 Washer(Jf2) |
92907-04600-00 |
from US $1.07 |
||
|
25
|
25
90480-12072-00 Grommet |
90480-12072-00 |
from US $1.84 |
||
|
26
|
26
67F-11356-00-00 Seal, Cylinder 2 |
67F-11356-00-00 |
from US $55.54 |
||
|
27
|
27
970-95060-30-00
Bolt
|
970-95060-30-00 |
— | ||
| replacement | |||||
|
27
|
27
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
28
|
28
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
28
|
28
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
29
|
29
67F-11192-00-00 Cover, Cylinder Head 2 |
67F-11192-00-00 |
US $27.20 |
||
| replacements | |||||
|
29
|
29
67F-11192-01-00 Cover, Cylinder Head 2 |
67F-11192-01-00 |
US $27.20 |
||
|
29
|
29
67F-11192-02-00 Cover, Cylinder Head 2 |
67F-11192-02-00 |
US $26.62 |
||
|
30
|
30
90159-06M29-00 Screw, With Washer |
90159-06M29-00 |
from US $2.13 |
||
|
31
|
31
67F-12411-00-00 Thermostat |
67F-12411-00-00 |
US $62.86 |
||
| replacement | |||||
|
31
|
31
67F-12411-01-00 Thermostat |
67F-12411-01-00 |
from US $54.88 |
||
|
32
|
32
68V-12413-00-1S Cover, Thermostat |
68V-12413-00-1S |
US $34.71 |
||
| replacement | |||||
|
32
|
32
68V-12413-00-9S Cover, Thermostat |
68V-12413-00-9S |
from US $24.50 |
||
|
33
|
33
970-95060-25-00
Bolt
|
970-95060-25-00 |
— | ||
| replacement | |||||
|
33
|
33
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.35 |
||
|
34
|
34
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
34
|
34
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
35
|
35
6G8-15363-00-00 Plug, Oil |
6G8-15363-00-00 |
from US $4.64 |
||
|
36
|
36
932-1024M-79-00
O-Ring
|
932-1024M-79-00 |
— | ||
| replacements | |||||
|
36
|
36
932-10242-35-00 O-Ring |
932-10242-35-00 |
from US $2.32 |
||
|
36
|
36
93210-24800-00 O-Ring |
93210-24800-00 |
from US $1.28 |
||
|
37
|
37
NGK-LFR5A-11-00
Plug, Spark (Ngk Lfr5A-11)
|
NGK-LFR5A-11-00 |
— | ||
| replacement | |||||
|
37
|
37
LFR-5A110-00-00 Plug, Spark (Ngk Lfr5A-11) |
LFR-5A110-00-00 |
US $61.56 |
||
