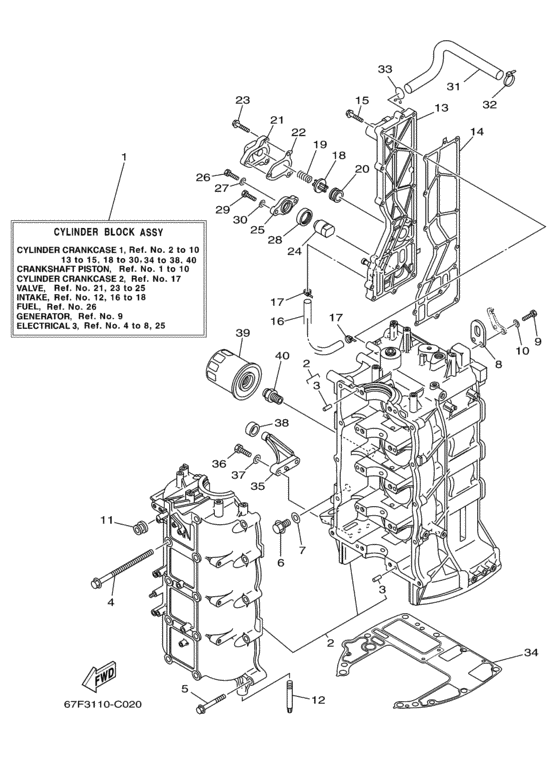

Cylinder crankcase Diagram Yamaha F90 TL/XR
- Year
- 2004
- Model
- F90
- Year
- 2004
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 90
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
60C-W009B-01-1S Cylinder Block Assy |
60C-W009B-01-1S |
US $4,976.40 |
||
| replacements | |||||
|
1
|
1
60C-W009B-07-9S Cylinder Block Assy |
60C-W009B-07-9S |
US $4,976.40 |
||
|
1
|
1
60C-W009B-08-9S Cylinder Block Assy |
60C-W009B-08-9S |
from US $4,976.40 |
||
|
2
|
2
67F-15100-03-1S Crankcase Assy |
67F-15100-03-1S |
US $2,547.60 |
||
| replacements | |||||
|
2
|
2
67F-15100-03-00 Crankcase Assy |
67F-15100-03-00 |
US $2,547.60 |
||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
67F-15100-04-00 Crankcase Assy |
67F-15100-04-00 |
from US $2,547.60 |
||
|
3
|
3
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.69 |
||
|
4
|
4
90119-10M88-00 Bolt, With Washer |
90119-10M88-00 |
from US $9.63 |
||
|
5
|
5
90119-08M66-00 Bolt, With Washer |
90119-08M66-00 |
from US $5.22 |
||
|
6
|
6
90340-14M06-00 Plug, Straight Screw |
90340-14M06-00 |
from US $6.09 |
||
|
7
|
7
904-30141-15-00 Gasket |
904-30141-15-00 |
from US $1.90 |
||
|
8
|
8
62Y-11119-00-00 Hanger, Engine |
62Y-11119-00-00 |
from US $10.34 |
||
|
9
|
9
97095-06020-00 Bolt |
97095-06020-00 |
US $1.56 |
||
| replacement | |||||
|
9
|
9
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
10
|
10
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
10
|
10
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
11
|
11
90480-12072-00 Grommet |
90480-12072-00 |
from US $1.84 |
||
|
12
|
12
67F-15142-00-00 Guide 1 |
67F-15142-00-00 |
from US $18.70 |
||
|
13
|
13
67F-41113-01-1S Outer Cover, Exhaust |
67F-41113-01-1S |
US $320.53 |
||
| replacements | |||||
|
13
|
13
67F-41113-30-9S Outer Cover, Exhaust |
67F-41113-30-9S |
US $162.07 |
||
|
13
|
13
67F-41113-31-9S Outer Cover, Exhaust |
67F-41113-31-9S |
US $307.60 |
||
|
14
|
14
67F-41114-A0-00 Gasket, Exhaust Outer Cover |
67F-41114-A0-00 |
US $19.55 |
||
| replacement | |||||
|
14
|
14
67F-41114-A2-00 Gasket, Exhaust Outer Cover |
67F-41114-A2-00 |
from US $19.55 |
||
|
15
|
15
90119-06MA4-00 Bolt, With Washer |
90119-06MA4-00 |
from US $1.34 |
||
|
16
|
16
90445-10M40-00 Hose (L330) |
90445-10M40-00 |
US $6.38 |
||
| replacement | |||||
|
16
|
16
90445-10M43-00 Hose (L400) |
90445-10M43-00 |
from US $6.38 |
||
|
17
|
17
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
17
|
17
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.21 |
||
|
17
|
17
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.34 |
||
|
18
|
18
6G5-12416-00-00 Valve, Pressure Cont |
6G5-12416-00-00 |
from US $10.92 |
||
| replacement | |||||
|
18
|
18
60H-12416-00-00 Valve, Pressure Control |
60H-12416-00-00 |
from US $9.26 |
||
|
19
|
19
90501-16M11-00 Spring, Compression |
90501-16M11-00 |
from US $2.32 |
||
|
20
|
20
904-8020M-05-00 Grommet |
904-8020M-05-00 |
from US $1.34 |
||
|
21
|
21
67F-1246A-00-1S Cover 1 |
67F-1246A-00-1S |
US $26.64 |
||
| replacement | |||||
|
21
|
21
67F-1246A-A0-9S Cover 1 |
67F-1246A-A0-9S |
from US $26.64 |
||
|
22
|
22
67F-12435-A0-00 Gasket |
67F-12435-A0-00 |
from US $5.53 |
||
|
23
|
23
90119-06MA2-00 Bolt, With Washer |
90119-06MA2-00 |
from US $1.34 |
||
|
24
|
24
68V-11325-00-00 Anode |
68V-11325-00-00 |
US $12.75 |
||
| replacement | |||||
|
24
|
24
68V-11325-01-00 Anode |
68V-11325-01-00 |
from US $12.75 |
||
|
25
|
25
67F-11327-00-94 Cover, Anode |
67F-11327-00-94 |
US $17.85 |
||
| replacements | |||||
|
25
|
25
67F-11301-10-00 Anode Cover Assy |
67F-11301-10-00 |
US $17.85 |
||
|
25
|
25
67F-11301-11-00 ANODE COVER ASSY |
67F-11301-11-00 |
from US $17.85 |
||
|
26
|
26
970-75060-20-00
Bolt
|
970-75060-20-00 |
— | ||
| replacement | |||||
|
26
|
26
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
27
|
27
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
27
|
27
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
28
|
28
67F-11328-00-00
Grommet, Anode
|
67F-11328-00-00 |
— | ||
| replacement | |||||
|
28
|
28
67F-11328-01-00 GROMMET ANODE |
67F-11328-01-00 |
from US $2.27 |
||
|
29
|
29
97075-08025-00 Bolt |
97075-08025-00 |
US $1.42 |
||
| replacement | |||||
|
29
|
29
97D75-08025-00 Bolt, Hexagon Deep Recess |
97D75-08025-00 |
from US $1.42 |
||
|
30
|
30
929-95086-00-00
Washer, Plate
|
929-95086-00-00 |
— | ||
| replacement | |||||
|
30
|
30
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
31
|
31
67F-1243A-00-00 Hose 1 |
67F-1243A-00-00 |
from US $13.74 |
||
|
32
|
32
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
32
|
32
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.21 |
||
|
32
|
32
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.34 |
||
|
33
|
33
90467-20M15-00 Clip |
90467-20M15-00 |
from US $3.83 |
||
|
34
|
34
68V-11351-00-00 Gasket, Cylinder |
68V-11351-00-00 |
from US $73.78 |
||
|
35
|
35
67F-42761-00-94 Stopper |
67F-42761-00-94 |
US $21.11 |
||
| replacement | |||||
|
35
|
35
67F-42761-01-00 Stopper |
67F-42761-01-00 |
from US $21.11 |
||
|
36
|
36
970-95060-25-00
Bolt
|
970-95060-25-00 |
— | ||
| replacement | |||||
|
36
|
36
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.35 |
||
|
37
|
37
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
37
|
37
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
38
|
38
68F-44533-00-00 Damper, Upper Mount Rubber |
68F-44533-00-00 |
US $4.39 |
||
| replacements | |||||
|
38
|
38
68F-44533-01-00 Damper, Upper Mount Rubber |
68F-44533-01-00 |
US $4.39 |
||
|
38
|
38
68F-44533-02-00 Damper Upper Mount Rubber |
68F-44533-02-00 |
from US $4.39 |
||
|
39
|
39
5GH-13440-00-00
Element Assy, Oil Cleaner
|
5GH-13440-00-00 |
— | ||
| replacement | |||||
|
39
|
39
5GH-13440-71-00 ELEMENT ASSY, OIL CLEANER |
5GH-13440-71-00 |
from US $14.99 |
||
|
40
|
40
90401-20145-00 Bolt, Union |
90401-20145-00 |
from US $14.60 |
||
| replacement | |||||
|
40
|
40
90401-20007-00 Bolt, Union |
90401-20007-00 |
from US $14.73 |
||
